Task Solving Guide

How to solve engineering tasks inside the NeqSim repo using AI, while simultaneously developing the physics engine — and making every solution findable for the next session.

The workflow adapts to any scale — from a 5-minute property lookup to a multi-discipline Class A field development study. You describe the task, the agent decides how deep to go based on what you ask for.

AI-Supported Task Solving While Developing

Every engineering task follows a 3-step workflow that combines AI research tools with NeqSim’s physics-based API. Each task gets its own folder in task_solve/ (gitignored — local working area only).

 STEP 1                    STEP 2                    STEP 3
 Scope & Research          Analysis & Evaluation     Report

 Define standards,         Build simulation,         Word + HTML
 methods, deliverables     run, validate, iterate    deliverables

 + task_spec.md            NeqSim API +              python-docx
 + literature review       GitHub Copilot            + HTML template

How to Start a New Task

Recommended — let Copilot do everything:

Open VS Code Copilot Chat and type:
@solve.task JT cooling for rich gas at 100 bara

The agent creates the folder, fills in the task specification, researches the topic, builds and runs a simulation, validates results, and generates Word + HTML reports — all in one session.

Alternative — manual step-by-step:

  1. Run the setup script (auto-creates task_solve/ on first use):
    python devtools/new_task.py "JT cooling for rich gas"
python devtools/new_task.py "TEG dehydration sizing" --type B --author "Your Name"
python devtools/new_task.py "field development study" --type G --author "Your Name"
  2. Open the generated README — it has AI prompts ready to paste for each step
  3. Work through Steps 1–3, saving artifacts in the corresponding subfolder
  4. When done, promote reusable outputs and optionally create a PR:
    • Tests → src/test/java/neqsim/
    • Notebooks → examples/notebooks/
    • API extensions → src/main/java/neqsim/
    • Task log entry → docs/development/TASK_LOG.md
    • Documentation fixes and improvements → include in the same PR (wrong API signatures, missing docs, better examples, new warnings)

New user? The script is in devtools/ (tracked in git), so it’s available immediately after git clone. It creates task_solve/ automatically on first run.

Task Folder Structure

task_solve/
├── README.md                                        ← workflow overview
├── TASK_TEMPLATE/                                   ← copy this to start
│   ├── README.md                                    ← task checklist
│   ├── step1_scope_and_research/task_spec.md         ← standards, methods, deliverables
│   ├── step1_scope_and_research/notes.md             ← literature, sources
│   ├── step1_scope_and_research/references/          ← PDFs, standards, lab reports
│   ├── step2_analysis/                               ← simulations, notebooks
│   ├── step2_analysis/notes.md                       ← validation log
│   ├── step3_report/generate_report.py               ← produces Word + HTML + Paper
│   └── figures/                                      ← all saved plots
└── 2026-03-07_jt_cooling_rich_gas/                   ← example real task

See task_solve/README.md for the full workflow description and details.

Adaptive Complexity — One Workflow, Any Scale

The same workflow handles everything. The agent (or you) decides the depth based on the task:

Scale Example Task Spec Notebooks Report
Quick “density of CO2 at 200 bar” Minimal — just EOS + condition 1 notebook, few cells Brief summary
Standard “TEG dehydration for 50 MMSCFD” Full — all sections filled 1 complete notebook Word + HTML
Comprehensive “field development per NORSOK” Detailed — all standards with clause numbers Multiple numbered notebooks Full HTML with navigation

You control depth through your request — mentioning standards, deliverables, and acceptance criteria naturally increases analysis depth.

Why Solve Tasks Inside the Repo?

NeqSim is both the tool you use and the codebase you develop. When you solve a task here, the boundary between “using the library” and “extending it” disappears:

                  ┌──────────────────────────┐
                  │     Engineering Task      │
                  │ "What's the JT cooling    │
                  │  for this gas at 200 bar?"│
                  └────────────┬─────────────┘
                               │
                  ┌────────────▼─────────────┐
                  │   Can NeqSim solve this   │
                  │      as-is?               │
                  └──────┬──────────┬─────────┘
                    YES  │          │  NO
                         │          │
              ┌──────────▼───┐  ┌───▼──────────────┐
              │ Write test / │  │ Extend the API:  │
              │ notebook     │  │ add method, model│
              │ using API    │  │ or equipment     │
              └──────────┬───┘  └───┬──────────────┘
                         │          │
                  ┌──────▼──────────▼─────────┐
                  │   Verify, commit, log      │
                  │   (knowledge accumulates)  │
                  └───────────────────────────┘

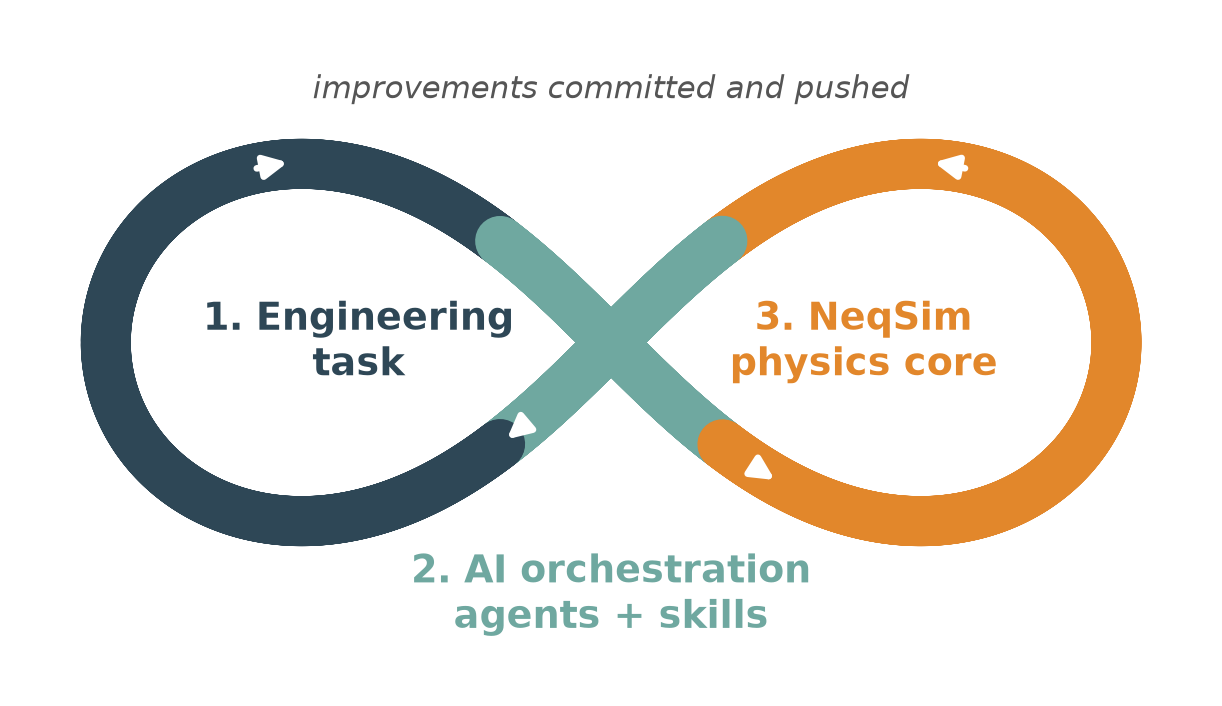

Every task you solve becomes a test, notebook, or feature — so the next task starts from a higher baseline. The AI agent re-reads TASK_LOG.md each session and picks up where the last one left off.

The AI-Assisted Development Loop

This is the core workflow. Each step maps to a concrete action that either you or the AI agent performs.

Phase 1: Orient (60 seconds)

AI reads:  CONTEXT.md           → repo map, build commands, constraints
           TASK_LOG.md          → similar past solutions
           copilot-instructions → API rules, Java 8, patterns

What you do: Describe the task in natural language. The AI handles the rest.

What the AI does:

  1. Reads CONTEXT.md to understand where things live
  2. Searches TASK_LOG.md for keywords matching your task
  3. Identifies the task type (A–F) to pick the right workflow

Phase 2: Investigate (2–5 minutes)

AI searches:  src/test/java/neqsim/     → existing tests doing similar things
              src/main/java/neqsim/     → actual API methods available
              examples/notebooks/        → Python examples
              docs/wiki/                 → explanations of the physics

Key principle: The AI reads actual source code to verify method signatures before using them. It does not hallucinate API calls because it can grep_search the real Java files.

Phase 3: Solve (the core loop)

                ┌─────────────────────────────────┐
                │ Write code (test or notebook)    │
                └─────────────┬───────────────────┘
                              │
                ┌─────────────▼───────────────────┐
          ┌─NO──┤ Does the API support what I need?│
          │     └─────────────┬───────────────────┘
          │                   │ YES
          │     ┌─────────────▼───────────────────┐
          │     │ Run it: mvnw test / run cell     │
          │     └─────────────┬───────────────────┘
          │                   │
          │     ┌─────────────▼───────────────────┐
          │     │ Check physics: are numbers sane? │
          │     └──┬──────────────────────────┬───┘
          │        │ YES                      │ NO
          │        ▼                          │
          │     DONE ← log it           debug/fix ──┘
          │
          ▼
  ┌───────────────────────────────────────────┐
  │ EXTEND THE API:                           │
  │ 1. Find the right class in src/main/      │
  │ 2. Add the method / model / equipment     │
  │ 3. Write a test in src/test/              │
  │ 4. mvnw compile → mvnw test              │
  │ 5. Return to the original task            │
  └───────────────────────────────────────────┘

This is the unique power of working inside the repo: when the physics engine is missing something, you add it — right there, mid-task — then keep going.

Phase 4: Verify

Run the checklist:

Phase 5: Log

Add an entry to docs/development/TASK_LOG.md:

### 2026-03-01 — Joule-Thomson cooling for rich gas at 200 bar
**Type:** A (Property)
**Keywords:** JT, Joule-Thomson, cooling, isenthalpic, rich gas, high pressure
**Solution:** src/test/java/neqsim/thermo/JouleThomsonTest.java
**Notes:** Used SystemPrEos with PR78 alpha function for better accuracy
at high pressure. JT coefficient = 0.35 K/bar at 200 bar, 40°C.
CPA not needed since no water in this case.

Task Classification

Every NeqSim task falls into one of seven types. Each has a different starting point, verification strategy, and AI agent.

Type A: Property Calculation

“What is the density / viscosity / JT coefficient of this fluid?”

Aspect Detail
Start from Fluid creation pattern in CONTEXT.md
EOS choice See EOS Selection table in CONTEXT.md
Code goes in Test (src/test/) or notebook (examples/notebooks/)
Verify by Compare against NIST, experiment, or published correlations
AI agent @thermo.fluid
SystemInterface fluid = new SystemSrkEos(273.15 + 25.0, 60.0);
fluid.addComponent("methane", 1.0);
fluid.setMixingRule("classic");
ThermodynamicOperations ops = new ThermodynamicOperations(fluid);
ops.TPflash();
fluid.initProperties();
System.out.println("Density: " + fluid.getDensity("kg/m3"));

If the property method doesn’t exist: See Extending the Physics Engine below.

Type B: Process Simulation

“Size a 3-stage compression train” / “Model a TEG dehydration unit”

Aspect Detail
Start from Process pattern in CONTEXT.md
Look at src/test/java/neqsim/process/ for similar flowsheets
Code goes in Notebook (best for presentation) or test (best for regression)
Verify by Mass/energy balance, physical reasonableness
AI agent @solve.process or @process.model

Key patterns:

If the equipment doesn’t exist: See the extending-equipment guide at docs/development/extending_process_equipment.md.

Type C: PVT Study

“Run CME / CVD / differential liberation on this oil”

Aspect Detail
Start from src/main/java/neqsim/pvtsimulation/simulation/
Experiments CME, CVD, DL, SaturationPressure, GOR, SwellingTest, MMP
Verify by Compare against lab data
AI agent @pvt.simulation

Type D: Standards Calculation

“Calculate Wobbe index, GCV, hydrocarbon dew point per ISO 6976”

Aspect Detail
Start from src/main/java/neqsim/standards/gasquality/
Verify by Standard reference values, round-robin test results
AI agent @gas.quality

Type E: New Feature / Bug Fix

“Add anti-surge to the compressor” / “Fix the CPA solver for CO2-water”

Aspect Detail
Find the class src/main/java/neqsim/process/equipment/<package>/
Read the interface *Interface.java for method contracts
Write tests first Mirror location in src/test/java/neqsim/
Verify by .\mvnw.cmd test -Dtest=YourTest then checkstyle:check
AI agent @neqsim.test for test writing

Type F: Mechanical Design

“Wall thickness per DNV-OS-F101 for a 20-inch subsea pipeline”

Aspect Detail
Pattern Mechanical Design section in .github/copilot-instructions.md
Design data src/main/resources/designdata/
AI agent @mechanical.design

Type G: Workflow (Multi-Discipline)

“Field development concept selection for deepwater gas” / “Design basis study per NORSOK”

Aspect Detail
Scale Comprehensive — multiple standards, multiple disciplines
Scope task_spec.md is critical — define ALL standards, methods, deliverables upfront
Notebooks Multiple numbered notebooks per discipline (01_reservoir_fluid, 02_pipeline, etc.)
Report Full HTML with navigation sidebar + Word summary
AI agent @solve.task (orchestrates specialist agents)

Type G tasks span multiple engineering disciplines and produce a comprehensive assessment. The HTML report becomes a navigable multi-section document linking all sub-analyses. These are the framework’s most powerful use case — Class A/B field development studies, technology screening, concept evaluation.

Extending the Physics Engine Mid-Task

This is the key advantage of working inside the repo. When you hit a gap — a missing property, a missing equipment type, a missing correlation — you don’t stop and file an issue. You add it.

Decision: Use vs. Extend

Can I solve this with existing methods?
  YES → Write a test/notebook using current API
  NO  → What's missing?
    ├── A property method    → extend physicalproperties/ or thermo/
    ├── A process equipment  → extend process/equipment/
    ├── A thermo model/EOS   → extend thermo/system/ + phase/ + component/
    ├── A PVT experiment     → extend pvtsimulation/
    └── A standard calc      → extend standards/

Pattern: Adding a Property Method

  1. Find the right layer — Properties live at three levels:
    • System level: SystemThermo → getDensity(), getEnthalpy()
    • Phase level: Phase → getViscosity(), getConductivity()
    • Component level: Component → getFugacityCoefficient()

  2. Read the existing method closest to what you need

  3. Add your method, following the naming convention:
    // In the Phase class or PhysicalProperties class
public double getMyNewProperty(String unit) {
    // calculation...
}

  4. Write a test validating against known values

  5. Use it in the original task

See docs/development/extending_physical_properties.md for the full guide.

Pattern: Adding Process Equipment

  1. Choose base class: TwoPortEquipment (single in/out) or ProcessEquipmentBaseClass
  2. Implement run(UUID id) with the physics
  3. Wire streams in the constructor
  4. Add to ProcessSystem and test
  5. See docs/development/extending_process_equipment.md for details

Pattern: Adding a Thermodynamic Model

  1. Create three classes: SystemYourEos, PhaseYourEos, ComponentYourEos
  2. Override EOS parameters (a, b, alpha function)
  3. Register characterization models
  4. See docs/development/extending_thermodynamic_models.md for details

How AI Agents Coordinate

The 12 specialist agents in .github/agents/ are designed for specific task types. They share the same codebase context but differ in what they optimize for.

Agent Selection Guide

Agent When to Use Output
@thermo.fluid Fluid setup, EOS selection, flash, properties Java code or notebook cell
@solve.process Complete simulation task → working notebook Full Jupyter notebook
@process.model Process flowsheet design, equipment sizing Process code
@pvt.simulation PVT lab experiments PVT results + plots
@gas.quality Gas quality per ISO/GPA standards Standards results
@mechanical.design Wall thickness, structural design Design report JSON
@neqsim.test Writing regression/unit tests JUnit 5 test class
@notebook.example Creating example notebooks Jupyter notebook
@flow.assurance Hydrates, wax, corrosion, slugging Analysis + mitigation
@safety.depressuring Depressurization, PSV, fire cases Safety analysis
@documentation Wiki pages, guides, cookbooks Markdown files

Chaining Agents

Complex tasks often need multiple agent capabilities. The general Copilot Chat (without an @agent prefix) can do everything — read, write, test, extend. Specialist agents are shortcuts for well-defined task shapes.

Example of a multi-step task:

1. @thermo.fluid  → "Create a CPA fluid for gas with 5% MEG and water"
2. @solve.process → "Build a TEG dehydration unit using that fluid"
3. @neqsim.test   → "Write regression tests for the dehydration results"

What the AI Can See

The AI reads actual Java source files, so it:

What the AI Cannot Do (Limitations)

The Develop-While-Solving Workflow in Detail

This section walks through a realistic example of solving an engineering task while simultaneously improving the NeqSim API.

Example: “Calculate JT cooling across a valve for a rich gas”

Step 1 — Orient

AI reads CONTEXT.md, searches TASK_LOG.md for “Joule-Thomson” or “JT” or “valve” or “isenthalpic”. Finds no prior solution.

Step 2 — Classify

This is a Type A (Property) + Type B (Process) hybrid. The JT effect is a thermodynamic property; the valve is process equipment.

Step 3 — Investigate

AI searches for existing valve tests:

grep_search: "ThrottlingValve" in src/test/java/neqsim/
→ finds ValveTest.java with basic valve operations

AI reads the ThrottlingValve class to check the API:

ThrottlingValve valve = new ThrottlingValve("JT Valve", stream);
valve.setOutletPressure(pressureOut);
// run() does isenthalpic flash internally

Step 4 — Solve

AI writes a test:

@Test
void testJTCoolingRichGas() {
    SystemInterface fluid = new SystemPrEos(273.15 + 40.0, 200.0);
    fluid.addComponent("methane", 0.70);
    fluid.addComponent("ethane", 0.10);
    fluid.addComponent("propane", 0.08);
    fluid.addComponent("n-butane", 0.05);
    fluid.addComponent("n-pentane", 0.03);
    fluid.addComponent("CO2", 0.04);
    fluid.setMixingRule("classic");
    fluid.setMultiPhaseCheck(true);

    ProcessSystem process = new ProcessSystem();
    Stream feed = new Stream("feed", fluid);
    feed.setFlowRate(50000.0, "kg/hr");
    process.add(feed);

    ThrottlingValve valve = new ThrottlingValve("JT", feed);
    valve.setOutletPressure(50.0, "bara");
    process.add(valve);

    process.run();

    double inletT = feed.getTemperature("C");
    double outletT = valve.getOutletStream().getTemperature("C");
    double cooling = inletT - outletT;

    assertTrue(cooling > 0, "JT cooling should be positive for this gas");
    assertTrue(cooling < 50, "JT cooling should be < 50°C");
    // JT coefficient ~ 0.3–0.5 K/bar for this gas
    double jtCoeff = cooling / (200.0 - 50.0);
    assertTrue(jtCoeff > 0.1 && jtCoeff < 1.0);
}

Step 5 — Run

.\mvnw.cmd test -Dtest=ValveJTTest

Tests pass. Results: inlet 40°C, outlet -5°C, JT cooling = 45°C, coefficient = 0.30 K/bar. Physically reasonable for a rich gas.

Step 6 — Extend (if needed)

Suppose you also want the JT coefficient as a direct API call and it doesn’t exist on the fluid. You would:

  1. Add getJouleThomsonCoefficient() to SystemThermo.java
  2. Implement using $\mu_{JT} = \frac{1}{C_p}\left(T\frac{\partial V}{\partial T}\bigg _P - V\right)$
  3. Write a test comparing against the numerical result from the valve
  4. Now the next person who needs $\mu_{JT}$ can just call the method

Step 7 — Log

Add to TASK_LOG.md:

### 2026-03-01 — JT cooling for rich gas across valve
**Type:** A+B (Property + Process)
**Keywords:** Joule-Thomson, JT, valve, isenthalpic, cooling, rich gas
**Solution:** src/test/java/neqsim/process/equipment/valve/ValveJTTest.java
**Notes:** Used SystemPrEos. JT coefficient ≈ 0.30 K/bar at 200 bar.
Rich gas (C1-C5 + CO2) cools from 40°C to -5°C expanding to 50 bar.

Finding Similar Solved Problems

Before writing anything, search for prior solutions:

1. TASK_LOG.md     → keyword search for the topic
2. Tests           → grep in src/test/java/neqsim/
3. Notebooks       → ls examples/notebooks/
4. Wiki            → docs/wiki/ (60+ topic files)
5. Reference index → docs/REFERENCE_MANUAL_INDEX.md

Search Commands

# Search task log
Select-String -Path "docs\development\TASK_LOG.md" -Pattern "compressor|compression"

# Search tests
Select-String -Path "src\test\java\neqsim\**\*.java" -Pattern "separator" -Recurse |
  Select-Object -First 10

# List example notebooks
Get-ChildItem examples\notebooks\*.ipynb | Select-Object Name

Verification Checklist

Before considering a task done:

Engineering Rigor: Data Flow Between Steps

A strong engineering workflow is not just three steps — it’s a connected pipeline where each step feeds data into the next. The task-solving framework enforces this connection through two mechanisms:

The Data Bridge: results.json

The notebook in Step 2 produces a results.json file that the report generator in Step 3 reads automatically. This eliminates manual copy-paste of results into reports and ensures the report always reflects the latest simulation run.

  Step 1                 Step 2                   Step 3
  task_spec.md  ──────>  notebook reads spec  ──>  generate_report.py
                         notebook produces   ──>    auto-reads
                         results.json              results.json
                         figures/*.png             figures/*.png

How it works:

  1. Fill task_spec.md with standards, methods, and acceptance criteria
  2. The notebook reads the spec and runs the simulation
  3. At the end of the notebook, save structured results:
    import json, os
results = {
    "key_results": {
        "outlet_temperature_C": -18.5,
        "pressure_drop_bar": 3.2,
    },
    "validation": {
        "mass_balance_error_pct": 0.01,
        "acceptance_criteria_met": True,
    },
    "approach": "Used SRK EOS with classic mixing rule...",
    "conclusions": "The JT cooling achieves the required dew point...",
}
with open(os.path.join(os.path.dirname(os.getcwd()), "results.json"), "w") as f:
    json.dump(results, f, indent=2)
  4. Run python step3_report/generate_report.py — the Results, Validation, and Scope sections auto-populate from results.json and task_spec.md
  5. To also generate a scientific paper: python step3_report/generate_report.py --paper
    • Produces Paper.docx and Paper.html in academic format
    • Configure PAPER_TITLE, PAPER_AUTHORS, PAPER_KEYWORDS, and PAPER_SECTIONS in generate_report.py for best results
    • Use --paper-only to skip the technical report and generate only the paper
  6. Built-in styled formatting: The template automatically renders these sections when the corresponding keys exist in results.json:
    • Benchmark Validation (benchmark_validation): PASS/FAIL table with color coding
    • Uncertainty Analysis (uncertainty): input parameters, P10/P50/P90 distribution, tornado table
    • Risk Assessment (risk_evaluation): summary card with risk badges, color-coded risk table
    • All four outputs (Report.docx, Report.html, Paper.docx, Paper.html) share the same formatters

Quality Gates

The workflow enforces quality gates between steps:

Gate 1: Step 1 → Step 2 (scope must be defined before analysis)

Gate 2: Step 2 → Step 3 (results must be validated before reporting)

Structured Validation

The step2_analysis/notes.md template includes a validation summary table that maps directly to the validation section in results.json:

Check Status Value / Note
Mass balance PASS 0.01% error
Energy balance PASS 0.3% error
Acceptance criteria met PASS All 3 criteria satisfied

For tasks that involve comparison with reference data, the template also includes a comparison table:

Source Parameter Reference NeqSim Deviation
NIST Density kg/m3 820.3 818.7 0.2%

Report Generation Best Practices

The generate_report.py template needs customisation for each task. Common failure modes and how to avoid them:

1. Section completeness: The default template only renders Results, Validation, Conclusions, and References. For Standard/Comprehensive tasks, you must add sections for Benchmark Validation, Uncertainty Analysis, and Risk Evaluation. Each section requires changes in three places:

2. Recommended section numbering for a complete task report:

# Section Data Source Figures
1 Executive Summary MANUAL_SECTIONS —
2 Problem Description MANUAL_SECTIONS —
3 Scope & Standards task_spec.md —
4 Approach results.json or MANUAL —
5 Results results.json key_results + tables Main notebook figs
6 Validation Summary results.json validation —
7 Benchmark Validation results.json benchmark_validation benchmark_*.png
8 Uncertainty Analysis results.json uncertainty uncertainty_*.png
9 Risk Evaluation results.json risk_evaluation risk_matrix.png
10 Conclusions MANUAL_SECTIONS or results.json —
11 References results.json references —

3. Figure captions: Every PNG in figures/ should have a caption entry in results.json["figure_captions"]. Use the exact filename as key. Figures from all notebooks (main, benchmark, uncertainty) must be captioned.

4. Stale numbers: When design parameters change iteratively, hardcoded text in MANUAL_SECTIONS["executive_summary"] and MANUAL_SECTIONS["conclusions"] becomes stale. Prefer writing conclusions programmatically from results.json where possible. At minimum, re-verify all hardcoded numbers after each parameter change.

5. Figure placement: Embed figures in their relevant section, not all at the end of Results. Use section flags to control which figures appear where.

Benchmark Validation (MANDATORY)

Every task MUST include a dedicated benchmark validation notebook that compares NeqSim results against independent reference data. This is a separate notebook from the main analysis — it focuses exclusively on demonstrating that the calculations are trustworthy.

Why Benchmark?

Without benchmarking, results are unverifiable assumptions. Benchmarking:

Benchmark Sources by Task Type

Task Type Primary Benchmark Sources Secondary Sources
A — Property NIST Webbook, DIPPR, experimental data Published correlations, other simulators
B — Process Textbook worked examples, published simulation cases Vendor datasheets, plant operating data
C — PVT Lab PVT reports, ECLIPSE/PVTsim results Published fluid studies, slim tube data
D — Standards Standard worked examples (ISO, AGA, EN) Certified lab results, round-robin results
E — Feature Unit test baselines, solver convergence benchmarks Literature solver comparisons
F — Design Hand calculations, vendor catalogs, design tables Published case studies, design codes
G — Workflow Industry benchmarks, analogous fields, public reports Cost databases (Rystad, IHS), government data

Benchmark Notebook Structure

Name: XX_benchmark_validation.ipynb (numbered to fit in the notebook sequence)

  1. Introduction — State what is being benchmarked and the acceptance tolerance
  2. Reference data — Tabulate benchmark values with full source citations
  3. NeqSim calculation — Reproduce same conditions and extract results
  4. Comparison table — Side-by-side: Benchmark NeqSim Deviation %
  5. Parity plot / deviation chart — Visual comparison saved to figures/
  6. Conclusion — Whether results are within tolerance; explain any deviations > 5%

Minimum Requirements

results["benchmark_validation"] = {
    "benchmark_source": "NIST Webbook, Reference Paper Smith et al. (2019)",
    "comparisons": [
        {"parameter": "density_kg_m3", "benchmark": 820.5, "neqsim": 818.3,
         "deviation_pct": 0.27, "condition": "25C, 60 bar"},
        {"parameter": "Cp_J_kgK", "benchmark": 2150.0, "neqsim": 2180.0,
         "deviation_pct": 1.4, "condition": "25C, 60 bar"},
    ],
    "max_deviation_pct": 1.4,
    "all_within_tolerance": True,
    "tolerance_pct": 5.0
}

Examples of Good Benchmarks

Thermodynamic property:

Compare methane density from NeqSim (SRK EOS) against NIST Webbook at 10 points across 1–200 bar at 25°C. Plot parity chart. Max deviation: 2.1%.

Process simulation:

Reproduce the 3-stage compression example from Smith & Van Ness (Introduction to Chemical Engineering Thermodynamics, Example 7.9). Compare outlet temperatures and work per stage. Max deviation: 0.8%.

CAPEX estimation:

Compare SURFCostEstimator output for a 6-well NCS tieback against Rystad Energy benchmark data and Equinor project analogues. Deviation: +8% (conservative, as expected for early-phase estimates).

Norwegian tax model:

Reproduce the NPD Resource Report worked example for a generic NCS field. Compare year-by-year tax, NPV, and government take. Max deviation: 0.1% (rounding differences only).

Reference Fluid Compositions

The task_spec.md template includes common fluid compositions (lean gas, rich gas, wet gas, CO2 stream) that users can pick as starting points. This eliminates the common problem of spending time looking up typical compositions and ensures consistency across tasks.

Making Solutions Reusable

Every solved task should be findable by the next person (or AI session). Choose one or more of these output formats:

Option 1: Write a Test (always do this)

Put a test in src/test/java/neqsim/<matching_package>/. Tests are:

Option 2: Write a Notebook (best for process engineers)

Put a notebook in examples/notebooks/ with:

Figure-saving pattern (do this for every plot cell):

import matplotlib
matplotlib.use('Agg')          # non-interactive backend, no GUI needed
import matplotlib.pyplot as plt
import os

FIG_DIR = os.path.join(os.path.dirname(os.path.abspath('__file__')), 'figures')
os.makedirs(FIG_DIR, exist_ok=True)

fig, ax = plt.subplots(figsize=(10, 6))
ax.plot(time_hrs, temperature_C, 'b-', linewidth=2)
ax.set_xlabel('Time (hours)')
ax.set_ylabel('Temperature (°C)')
ax.set_title('Gas Temperature During Filling')
ax.grid(True, alpha=0.3)
fig.tight_layout()
fig.savefig(os.path.join(FIG_DIR, 'filling_temperature.png'), dpi=150)
plt.close(fig)                 # free memory, avoid display issues
print(f"Saved: {os.path.join(FIG_DIR, 'filling_temperature.png')}")

Key rules for figure saving:

Option 3: Add a Doc Page (for recurring questions)

Add docs/wiki/<topic>.md or docs/cookbook/<recipe>.md. Update docs/REFERENCE_MANUAL_INDEX.md with the link.

Option 4: Log It (minimum bar — always do this)

Add an entry to docs/development/TASK_LOG.md. This is the searchable memory that survives across AI sessions.

Option 5: Generate a Word Report (best for deliverables)

For engineering studies and client deliverables, generate a Word document using python-docx. This was proven on the CNG Tank Modelling project (examples/CNGtankmodelling/generate_report.py).

Architecture: a standalone report-generator script:

your_project/
├── simulation_notebook.ipynb   # Interactive exploration
├── generate_report.py          # Headless: runs sims + writes .docx
├── figures/                    # PNG files saved by both notebook and script
└── YourReport.docx             # Output

Why a separate script instead of the notebook?

Report generator pattern:

import matplotlib
matplotlib.use('Agg')  # MUST be before any pyplot import
import matplotlib.pyplot as plt
from docx import Document
from docx.shared import Inches, Pt
from docx.enum.text import WD_ALIGN_PARAGRAPH
import os

# ── Constants ────────────────────────────────────────────
FIG_DIR = os.path.join(os.path.dirname(__file__), 'figures')
os.makedirs(FIG_DIR, exist_ok=True)

# ── 1. Run simulations ──────────────────────────────────
def run_baseline():
    """Run the baseline simulation and return results dict."""
    # ... NeqSim simulation code ...
    return {'time': time_list, 'temperature': temp_list, 'pressure': pres_list}

# ── 2. Generate figures ─────────────────────────────────
def make_temperature_figure(results):
    """Create and save temperature plot, return path."""
    fig, ax = plt.subplots(figsize=(10, 6))
    ax.plot(results['time'], results['temperature'], 'b-', lw=2)
    ax.set_xlabel('Time (hours)')
    ax.set_ylabel('Temperature (°C)')
    ax.set_title('Gas Temperature')
    ax.grid(True, alpha=0.3)
    path = os.path.join(FIG_DIR, 'temperature.png')
    fig.savefig(path, dpi=150, bbox_inches='tight')
    plt.close(fig)
    return path

# ── 3. Build Word document ──────────────────────────────
def build_report(results, fig_paths):
    """Assemble the Word document."""
    doc = Document()
    doc.add_heading('Simulation Report', level=0)

    doc.add_heading('1. Introduction', level=1)
    doc.add_paragraph('This report presents the simulation results for ...')

    doc.add_heading('2. Results', level=1)
    doc.add_paragraph(
        f"Peak temperature: {max(results['temperature']):.1f} °C"
    )
    doc.add_picture(fig_paths['temperature'], width=Inches(6.0))
    last = doc.paragraphs[-1]
    last.alignment = WD_ALIGN_PARAGRAPH.CENTER

    doc.save('MyReport.docx')
    print('Report saved: MyReport.docx')

# ── 4. Main ─────────────────────────────────────────────
if __name__ == '__main__':
    results = run_baseline()
    fig_paths = {
        'temperature': make_temperature_figure(results),
    }
    build_report(results, fig_paths)

Key lessons from the CNG report project:

Lesson Detail
matplotlib.use('Agg') first Must come before import matplotlib.pyplot. Otherwise the script hangs or crashes without a display.
Separate sim from plotting Run all simulations first, collect results dicts, then generate all figures. Keeps the script restartable.
Use f-strings for dynamic text Report text should reference computed values (f"{max_temp:.1f} °C") so the document stays in sync with simulation.
plt.close(fig) always Without this, memory grows with each figure in a loop (sensitivity studies generate many).
bbox_inches='tight' Prevents axis labels from being clipped in the saved PNG.
Handle simulation failures Wrap each simulation batch in try/except so one failure doesn’t kill the whole report. Log the error and skip.
dpi=150 is enough Higher DPI makes the .docx file huge with no visible quality gain in print.
Save figures AND embed them Save to figures/ for reuse, and embed in the .docx. Both are needed.

Rendering equations natively in Word (OMML):

Word supports native Office Math Markup Language (OMML) equations that render beautifully — the same typeset quality as the Word equation editor. Use the latex2mathml + XSLT approach to convert LaTeX strings into OMML XML and insert them directly into the document.

import latex2mathml.converter
from lxml import etree
from docx.oxml.ns import qn

# ── XSLT stylesheet (ships with Word / Office) ──────────
# Download MML2OMML.XSL from your Office install or from:
# C:\Program Files\Microsoft Office\root\Office16\MML2OMML.XSL
# or bundle it with the project.
XSLT_PATH = os.path.join(os.path.dirname(__file__), 'MML2OMML.XSL')
xslt = etree.parse(XSLT_PATH)
transform = etree.XSLT(xslt)

def add_latex_equation(paragraph, latex_str):
    """Insert a LaTeX equation as a native Word OMML equation.

    Args:
        paragraph: A python-docx Paragraph object to append the equation to.
        latex_str: LaTeX math string WITHOUT delimiters (no $ or $$).
                   Example: r'P = \\frac{RT}{V - b}'
    """
    # 1. LaTeX → MathML
    mathml_str = latex2mathml.converter.convert(latex_str)

    # 2. MathML → OMML via Microsoft's XSLT
    mathml_tree = etree.fromstring(mathml_str.encode('utf-8'))
    omml_tree = transform(mathml_tree)

    # 3. Insert into paragraph's XML
    for omml_element in omml_tree.getroot():
        paragraph._element.append(omml_element)

# ── Usage ────────────────────────────────────────────────
doc = Document()
doc.add_heading('Energy Balance', level=1)

p = doc.add_paragraph('The first law for a constant-volume system:')
p = doc.add_paragraph()  # new paragraph for equation
add_latex_equation(p, r'm \\, c_v \\, \\frac{dT}{dt} = \\dot{Q} - \\dot{m} \\, h')

p = doc.add_paragraph('The SRK equation of state:')
p = doc.add_paragraph()
add_latex_equation(p, r'P = \\frac{RT}{V-b} - \\frac{a(T)}{V(V+b)}')

doc.save('report_with_equations.docx')

The equations above render in Word exactly like the built-in equation editor — fully scalable, editable, and print-quality. No images, no blurry screenshots.

Setup for OMML equations:

  1. Install latex2mathml and lxml:
    pip install latex2mathml lxml
  2. Copy MML2OMML.XSL from your Office installation:
    C:\Program Files\Microsoft Office\root\Office16\MML2OMML.XSL

    Bundle it next to generate_report.py so the script is self-contained.

  3. Common LaTeX expressions for NeqSim reports:

    What LaTeX
    SRK EOS r'P = \frac{RT}{V-b} - \frac{a(T)}{V(V+b)}'
    Energy balance r'm c_v \frac{dT}{dt} = \dot{Q} - \dot{m} h'
    Churchill-Chu r'Nu = \left[0.825 + \frac{0.387 Ra^{1/6}}{(1+(0.492/Pr)^{9/16})^{8/27}}\right]^2'
    Heat transfer r'Q = h A (T_w - T_f)'
    Compressibility r'Z = \frac{PV}{nRT}'

Dependencies:

pip install python-docx matplotlib latex2mathml lxml neqsim

Common Pitfalls

Mistake Symptom Fix
Forgot mixing rule Wrong/no results, NaN fluid.setMixingRule("classic")
Temperature in °C to constructor Wildly wrong properties Use Kelvin: 273.15 + T_celsius
Shared fluid state Equipment B sees A’s changes fluid.clone() before branching
Duplicate equipment names Exception from ProcessSystem Every name must be unique
Java 9+ syntax CI build fails See forbidden features in CONTEXT.md
Missing fluid.init(3) Properties return 0 or NaN Always call after flash
Using getTemperature() as °C Off by 273 Returns Kelvin — subtract 273.15
Wrong mixing rule number for CPA Convergence failure Use 10 (numeric) for CPA EOS
Not setting setMultiPhaseCheck(true) Missing liquid phase Required for water/heavy systems
Forgot setFlowRate on stream Zero flow everywhere Set before running
matplotlib.use('Agg') after pyplot Script hangs or crashes Put matplotlib.use('Agg') before any import matplotlib.pyplot
Not closing figures in loops Memory grows, OOM Always call plt.close(fig) after savefig()
Hardcoded results in report text Report drifts from simulation Use f-strings: f"{value:.1f}" so text updates automatically
Saving figures without bbox_inches='tight' Axis labels clipped Add bbox_inches='tight' to savefig()
Cascaded tax model instead of independent Effective tax rate wrong (e.g. 65% instead of 78%) Norwegian petroleum tax: corporate (22%) + special (56%) on independent taxable incomes
CAPEX double-counted in cash flow NPV too negative, payback too long Include CAPEX only once — either in investment line OR in operating costs, not both
Year-0 includes revenue NPV inflated Year 0 is investment only; production revenue starts Year 1
Flat CAPEX lump sum for SURF Cannot validate or break down costs Use component-level estimators (SURFCostEstimator, SubseaCostEstimator)
Hardcoded exchange rates in formulas Rate change requires editing every formula Define USD_TO_NOK = 10.5 as a variable; reference throughout
Missing loss carry-forward in tax model Tax paid in loss years, wrong NPV Track cumulative tax loss per pool; only pay tax when taxable income > 0
Formula from memory without verification Incorrect equations compound through calculation Always verify governing equations against the applicable standard or textbook
Old JAR in Python site-packages jpype.JClass() loads stale class Remove old JARs; rebuild with mvnw.cmd package -DskipTests; use jpype.addClassPath() for local JAR
Report generator missing sections Benchmark/uncertainty/risk data in results.json but absent from report Add rendering to build_sections(), build_word_report(), AND build_html_report() for each data section
Figure captions only from main notebook Benchmark/uncertainty figures show generic captions Add ALL figure filenames to results.json["figure_captions"] from every notebook
Stale numbers in MANUAL_SECTIONS Executive summary/conclusions don’t match latest results Write conclusions in results.json["conclusions"]; update MANUAL_SECTIONS when parameters change
Design change not propagated to all notebooks Benchmark/uncertainty results reflect old parameters Re-run ALL notebooks (restart kernels) when base case parameters change
All figures dumped in one report section 12 figures after Results, none in Benchmark/Uncertainty/Risk Use section flags (has_benchmark, has_uncertainty, has_risk) to embed figures in their own section

Copilot Chat Agents

13 specialist agents in .github/agents/:

Agent Best For
@solve.task Full 3-step workflow (does everything end-to-end)
@thermo.fluid EOS selection, fluid creation, flash, properties
@solve.process Complete process simulation → working notebook
@process.model Process flowsheet design
@pvt.simulation PVT experiments (CME, CVD, etc.)
@gas.quality Gas quality standards (GCV, Wobbe)
@mechanical.design Wall thickness, ASME/DNV design
@neqsim.test Writing JUnit 5 tests
@notebook.example Creating example notebooks
@flow.assurance Hydrates, wax, corrosion, slugging
@safety.depressuring Depressurization, PSV, fire cases
@documentation Writing docs and wiki pages

Session Start Template

When starting a new Copilot Chat session, paste this to establish context:

I'm working in the NeqSim repo (Java thermodynamics + process simulation).
Read CONTEXT.md for orientation.
Task: [describe your task here]
Search docs/development/TASK_LOG.md for similar past tasks.

Process Engineer Quick Start

If you’re a process engineer (not a developer):

  1. Open VS Code with the NeqSim repo
  2. Open Copilot Chat and type: @solve.task your engineering question
  3. The agent creates the folder, runs simulations, and hands back results + reports
  4. Find Word and HTML reports in task_solve/.../step3_report/

Alternatively, for manual control:

  1. Run: python devtools/new_task.py "your question" --type B
  2. Open Copilot Chat and paste the prompts from the generated README
  3. Run python step3_report/generate_report.py to create Word + HTML reports

You don’t need to know Java, Maven, or git. The script and agent handle everything.

Using Other AI Tools (OpenAI Codex, Claude Code, Cursor, etc.)

The workflow is not tied to VS Code Copilot Chat. The script, folder structure, templates, and report generator work from any terminal. Any AI coding agent that can read files and run commands can follow the same workflow.

Quick Start for Any AI Agent

  1. Create the task folder (from terminal):
    python devtools/new_task.py "your task" --type B
  2. Point the agent to the workflow — paste this prompt:
    I'm working in the NeqSim repo (Java thermodynamics + process simulation).
Read docs/development/TASK_SOLVING_GUIDE.md for the task-solving workflow.
Read the task README at task_solve/YYYY-MM-DD_your_task/README.md.

Follow the 3-step workflow:
1. Fill in step1_scope_and_research/task_spec.md (standards, methods, deliverables)
2. Create a Jupyter notebook in step2_analysis/ using NeqSim
3. Run step3_report/generate_report.py to produce Word + HTML reports

Task: [describe your task here]
  3. The AI agent reads the templates, fills in the task spec, creates notebooks, and runs the report generator — same output, different tool.

What Works Everywhere (No VS Code Required)

Component How to Use Works In
python devtools/new_task.py Creates task folders Any terminal
task_spec.md Scope document (plain markdown) Any editor / AI tool
Jupyter notebooks Simulation code JupyterLab, Colab, Codex, any Python env
python generate_report.py Produces Word + HTML Any terminal
python generate_report.py --paper Also produces Paper.docx + Paper.html Any terminal
git + gh pr create Contribute back via PR Any terminal

What’s VS Code Copilot-Specific (Optional Convenience)

Feature Purpose Alternative
@solve.task agent Automates the full 3-step workflow Give any AI the prompt above
Specialist agents (@thermo.fluid, etc.) Deep sub-task automation Use the agent files in .github/agents/ as prompts
Notebook cell execution Run cells from chat Run notebooks in JupyterLab or via jupyter execute

Tips for Non-VS-Code AI Tools

End-to-End with OpenAI Codex (Solve Task + Create PR)

Codex can run the full workflow autonomously — from task creation to PR — because:

  1. It reads AGENTS.md at the repo root for project-level instructions
  2. The .openapi/codex.yaml installs Java 8, Maven, Python, and gh CLI in the sandbox
  3. It can run terminal commands, create files, execute Python, and use gh pr create

One-shot prompt for Codex (paste this into Codex Web or CLI):

Solve this engineering task and create a PR with the results:

Task: [describe your task, e.g. "hydrate formation temperature for wet gas at 100 bara"]

Instructions:
1. Read AGENTS.md for project guidance
2. Run: python devtools/new_task.py "[task title]" --type [A-G]
3. Fill step1_scope_and_research/task_spec.md with standards and methods
4. Create a Jupyter notebook in step2_analysis/ using NeqSim (pip install neqsim)
5. Run the notebook and validate results
6. Save plots to figures/
7. Update and run step3_report/generate_report.py
8. Copy reusable outputs to proper locations:
   - Notebook → examples/notebooks/
   - Tests → src/test/java/neqsim/
9. Create a PR:
   git checkout -b task/[slug]
   git add examples/notebooks/ src/test/java/ docs/development/TASK_LOG.md
   git commit -m "Add [description] from task: [title]"
   git push -u origin task/[slug]
   gh pr create --title "Add [description]" --body "From task-solving workflow"

Codex Cloud vs Codex CLI:

Capability Codex Cloud (chatgpt.com/codex) Codex CLI (local)
Java/Maven Installed via .openapi/codex.yaml Uses your local JDK
Python/pip Available by default Uses your local Python
gh pr create Via Codex’s GitHub integration Via local gh CLI
Network access Restricted (sandbox) Sandboxed but configurable
AGENTS.md Read automatically Read automatically
NeqSim mode pip install neqsim (released) pip install -e devtools/ (local dev)

Key difference: Codex Cloud uses the released neqsim PyPI package, so it can solve tasks using the existing API but cannot extend the Java source code mid-task. Use Codex CLI or VS Code Copilot for tasks that require adding new Java methods (Type E tasks).

Contributing Back via Pull Request

When your task produces reusable outputs (tests, notebooks, docs, API extensions), contribute them back via PR:

# Create a feature branch
git checkout -b task/your-task-name

# Copy and stage reusable outputs (don't commit task_solve/ contents)
git add src/test/java/neqsim/...              # tests
git add examples/notebooks/...                 # notebooks
git add docs/development/TASK_LOG.md           # task log entry

# Commit and push
git commit -m "Add [description] from task: [title]"
git push -u origin task/your-task-name

# Create PR (requires GitHub CLI)
gh pr create --title "Add [description]" --body "From task-solving workflow"

Tip: The @solve.task agent can do this for you — just ask “create a PR with the test and notebook from this task”.

Document Purpose
devtools/new_task.py Script to create task folders (auto-bootstraps task_solve/)
task_solve/README.md AI-supported task-solving workflow (3-step process)
task_solve/TASK_TEMPLATE/ Template folder with task_spec, prompts, and report generator
.github/agents/solve.task.agent.md The @solve.task Copilot agent (does everything end-to-end)
CONTEXT.md 60-second repo orientation
docs/development/CODE_PATTERNS.md Copy-paste code starters
docs/development/TASK_LOG.md Persistent task memory
docs/development/extending_process_equipment.md Adding new equipment
docs/development/extending_thermodynamic_models.md Adding new EOS
docs/development/extending_physical_properties.md Adding property models
docs/development/jupyter_development_workflow.md Jupyter + Java dev loop
.github/copilot-instructions.md Full AI coding rules
