NeqSim Python Optimization

Note: This is an auto-generated Markdown version of the Jupyter notebook NeqSim_Python_Optimization.ipynb. You can also view it on nbviewer or open in Google Colab.

NeqSim Process Optimization with Python

This notebook demonstrates how to use Python optimization libraries (SciPy, etc.) with NeqSim process simulations. This approach gives you the flexibility of Python’s optimization ecosystem while leveraging NeqSim’s rigorous thermodynamics and equipment models.

Table of Contents

  1. Introduction
  2. Setup and Imports
  3. Creating a Process Model
  4. Defining the Optimization Problem
  5. Using SciPy Optimizers
  6. Equipment Constraints

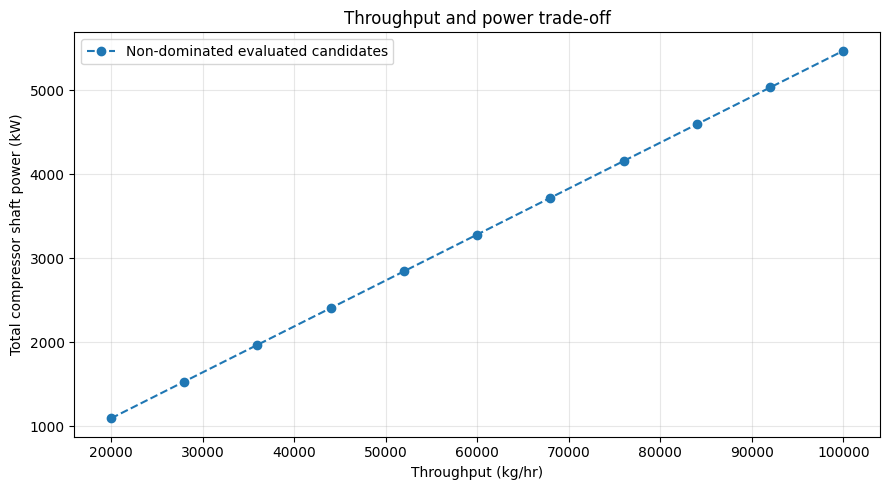

  7. Multi-Objective with Pareto
  8. Global Optimization
  9. Gradient-Based Optimization
  10. Best Practices

1. Introduction

Why Use Python Optimizers with NeqSim?

Approach Advantages Best For
NeqSim Built-in (ProductionOptimizer) Integrated, equipment-aware Standard throughput optimization
Python + NeqSim Flexible, any algorithm, custom objectives Research, complex constraints, ML integration

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                    Python Optimization Layer                     │
│  ┌─────────────┐  ┌─────────────┐  ┌─────────────┐              │
│  │ scipy.opt   │  │ differential│  │ pymoo/NSGA │              │
│  │ minimize()  │  │ _evolution()│  │ (Pareto)   │              │
│  └──────┬──────┘  └──────┬──────┘  └──────┬──────┘              │
└─────────┼────────────────┼────────────────┼─────────────────────┘
          │                │                │
          ▼                ▼                ▼
┌─────────────────────────────────────────────────────────────────┐
│              Objective Function (Python callable)                │
│  def objective(x):                                               │
│      set_variables(process, x)                                   │
│      process.run()                                               │
│      return evaluate(process)                                    │
└─────────────────────────────────────────────────────────────────┘
          │
          ▼
┌─────────────────────────────────────────────────────────────────┐
│                    NeqSim Process Model                          │
│  ┌─────────┐  ┌─────────┐  ┌─────────┐  ┌─────────┐             │
│  │  Feed   │─▶│ Compres │─▶│ Cooler  │─▶│Separator│             │
│  │ Stream  │  │  sor    │  │         │  │         │             │
│  └─────────┘  └─────────┘  └─────────┘  └─────────┘             │
└─────────────────────────────────────────────────────────────────┘

2. Setup and Imports

# Install required packages if needed
# !pip install neqsim scipy numpy matplotlib

# Python imports
import numpy as np
from scipy import optimize
import matplotlib.pyplot as plt

# NeqSim imports via JPype
from neqsim.neqsimpython import jneqsim

# Process equipment
ProcessSystem = jneqsim.process.processmodel.ProcessSystem
Stream = jneqsim.process.equipment.stream.Stream
Compressor = jneqsim.process.equipment.compressor.Compressor
Cooler = jneqsim.process.equipment.heatexchanger.Cooler
Heater = jneqsim.process.equipment.heatexchanger.Heater
Separator = jneqsim.process.equipment.separator.Separator
ThrottlingValve = jneqsim.process.equipment.valve.ThrottlingValve
Mixer = jneqsim.process.equipment.mixer.Mixer
Splitter = jneqsim.process.equipment.splitter.Splitter

# Thermodynamic systems
SystemSrkEos = jneqsim.thermo.system.SystemSrkEos
SystemPrEos = jneqsim.thermo.system.SystemPrEos

print("NeqSim and SciPy loaded successfully!")
print(f"SciPy version: {optimize.__name__}")

3. Creating a Process Model

Let’s create a gas compression and cooling process that we’ll optimize.

def create_gas_process(inlet_pressure=30.0, outlet_pressure=100.0):
    """
    Create a two-stage gas compression process with intercooling.

    Parameters:
    - inlet_pressure: Feed pressure (bara)
    - outlet_pressure: Target outlet pressure (bara)

    Returns:
    - ProcessSystem object
    """
    # Create natural gas fluid
    gas = SystemSrkEos(288.15, inlet_pressure)  # 15°C
    gas.addComponent("nitrogen", 0.02)
    gas.addComponent("CO2", 0.01)
    gas.addComponent("methane", 0.85)
    gas.addComponent("ethane", 0.07)
    gas.addComponent("propane", 0.03)
    gas.addComponent("i-butane", 0.01)
    gas.addComponent("n-butane", 0.01)
    gas.setMixingRule("classic")

    # Create process system
    process = ProcessSystem()

    # Feed stream
    feed = Stream("feed", gas)
    feed.setFlowRate(50000.0, "kg/hr")
    feed.setPressure(inlet_pressure, "bara")
    feed.setTemperature(288.15, "K")
    process.add(feed)

    # Calculate intermediate pressure (geometric mean for equal compression ratios)
    intermediate_pressure = np.sqrt(inlet_pressure * outlet_pressure)

    # Stage 1 compressor
    stage1 = Compressor("stage1", feed)
    stage1.setOutletPressure(intermediate_pressure)
    stage1.setPolytropicEfficiency(0.78)
    process.add(stage1)

    # Intercooler (cool back to near inlet temperature)
    intercooler = Cooler("intercooler", stage1.getOutletStream())
    intercooler.setOutTemperature(303.15)  # 30°C
    process.add(intercooler)

    # Stage 2 compressor
    stage2 = Compressor("stage2", intercooler.getOutletStream())
    stage2.setOutletPressure(outlet_pressure)
    stage2.setPolytropicEfficiency(0.76)
    process.add(stage2)

    # Aftercooler
    aftercooler = Cooler("aftercooler", stage2.getOutletStream())
    aftercooler.setOutTemperature(313.15)  # 40°C
    process.add(aftercooler)

    # Run initial simulation
    process.run()

    return process

# Create and test the process
process = create_gas_process()

print("Process created successfully!")
print(f"\nInitial conditions:")
print(f"  Feed flow rate: {process.getUnit('feed').getFlowRate('kg/hr'):.0f} kg/hr")
print(f"  Stage 1 power: {process.getUnit('stage1').getPower('kW'):.1f} kW")
print(f"  Stage 2 power: {process.getUnit('stage2').getPower('kW'):.1f} kW")
print(f"  Total power: {process.getUnit('stage1').getPower('kW') + process.getUnit('stage2').getPower('kW'):.1f} kW")

4. Defining the Optimization Problem

The key is creating a Python callable that:

  1. Takes decision variables as input
  2. Sets them on the NeqSim process
  3. Runs the simulation
  4. Returns the objective value
class NeqSimOptimizationProblem:
    """
    Wrapper class to use NeqSim process with Python optimizers.

    This class handles:
    - Setting decision variables on the process
    - Running the simulation
    - Evaluating objectives and constraints
    - Counting function evaluations
    """

    def __init__(self, process_factory, variable_specs, objective_func):
        """
        Initialize the optimization problem.

        Parameters:
        - process_factory: Callable that creates a fresh ProcessSystem
        - variable_specs: List of dicts with 'name', 'min', 'max', 'setter'
        - objective_func: Callable(process) -> float
        """
        self.process_factory = process_factory
        self.variable_specs = variable_specs
        self.objective_func = objective_func
        self.process = None
        self.eval_count = 0
        self.history = []

    def get_bounds(self):
        """Return bounds as [(min1, max1), (min2, max2), ...]."""
        return [(v['min'], v['max']) for v in self.variable_specs]

    def get_x0(self):
        """Return initial point (midpoint of bounds)."""
        return np.array([(v['min'] + v['max']) / 2 for v in self.variable_specs])

    def evaluate(self, x):
        """
        Evaluate the objective function.

        Parameters:
        - x: Array of decision variable values

        Returns:
        - Objective value (for minimization)
        """
        self.eval_count += 1

        # Create fresh process (avoids state issues)
        self.process = self.process_factory()

        # Set decision variables
        for i, var_spec in enumerate(self.variable_specs):
            var_spec['setter'](self.process, x[i])

        # Run simulation
        try:
            self.process.run()
            obj_value = self.objective_func(self.process)
        except Exception as e:
            print(f"Simulation failed at x={x}: {e}")
            obj_value = 1e10  # Large penalty for failed simulations

        # Record history
        self.history.append({'x': x.copy(), 'obj': obj_value})

        return obj_value

    def __call__(self, x):
        """Make the object callable for scipy.optimize."""
        return self.evaluate(x)

print("NeqSimOptimizationProblem class defined")

# Define the optimization problem: Minimize total compressor power

# Decision variables
variable_specs = [
    {
        'name': 'intermediate_pressure',
        'min': 40.0,
        'max': 80.0,
        'setter': lambda proc, val: proc.getUnit('stage1').setOutletPressure(val)
    },
    {
        'name': 'intercooler_temp',
        'min': 293.15,  # 20°C
        'max': 323.15,  # 50°C
        'setter': lambda proc, val: proc.getUnit('intercooler').setOutTemperature(val)
    }
]

# Objective: Minimize total power
def total_power_objective(process):
    """Return total compressor power in kW (to minimize)."""
    power1 = process.getUnit('stage1').getPower('kW')
    power2 = process.getUnit('stage2').getPower('kW')
    return power1 + power2

# Create optimization problem
problem = NeqSimOptimizationProblem(
    process_factory=create_gas_process,
    variable_specs=variable_specs,
    objective_func=total_power_objective
)

print("Optimization problem defined:")
print(f"  Variables: {[v['name'] for v in variable_specs]}")
print(f"  Bounds: {problem.get_bounds()}")
print(f"  Initial point: {problem.get_x0()}")

5. Using SciPy Optimizers

5.1 Nelder-Mead (Derivative-Free)

# Optimize using Nelder-Mead (simplex method)
problem.eval_count = 0
problem.history = []

result_nm = optimize.minimize(
    problem,
    x0=problem.get_x0(),
    method='Nelder-Mead',
    options={
        'maxiter': 100,
        'xatol': 0.1,
        'fatol': 1.0,
        'disp': True
    }
)

print("\n=== Nelder-Mead Results ===")
print(f"Success: {result_nm.success}")
print(f"Message: {result_nm.message}")
print(f"Function evaluations: {problem.eval_count}")
print(f"\nOptimal values:")
for i, var in enumerate(variable_specs):
    print(f"  {var['name']}: {result_nm.x[i]:.2f}")
print(f"\nMinimum total power: {result_nm.fun:.1f} kW")

5.2 Powell Method

# Optimize using Powell method
problem.eval_count = 0

result_powell = optimize.minimize(
    problem,
    x0=problem.get_x0(),
    method='Powell',
    bounds=problem.get_bounds(),
    options={
        'maxiter': 100,
        'ftol': 1.0,
        'disp': True
    }
)

print("\n=== Powell Results ===")
print(f"Function evaluations: {problem.eval_count}")
print(f"Optimal intermediate pressure: {result_powell.x[0]:.2f} bara")
print(f"Optimal intercooler temp: {result_powell.x[1] - 273.15:.1f} °C")
print(f"Minimum total power: {result_powell.fun:.1f} kW")

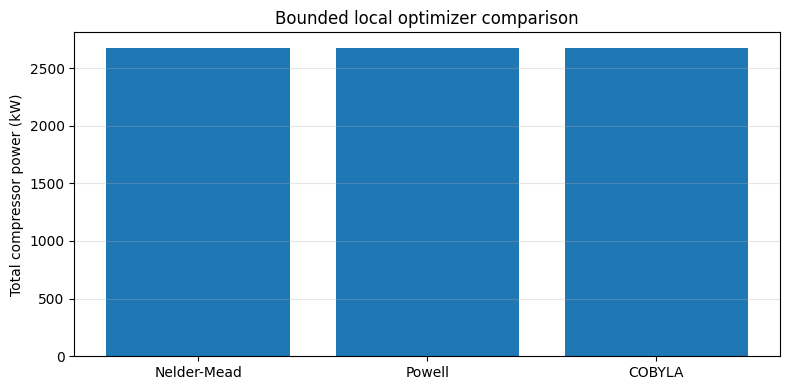

5.3 Compare Algorithms

# Compare multiple optimization algorithms

algorithms = ['Nelder-Mead', 'Powell', 'COBYLA']
results = {}

for alg in algorithms:
    problem.eval_count = 0

    try:
        if alg == 'COBYLA':
            # COBYLA needs constraints, not bounds
            cons = []
            for i, (lb, ub) in enumerate(problem.get_bounds()):
                cons.append({'type': 'ineq', 'fun': lambda x, i=i, lb=lb: x[i] - lb})
                cons.append({'type': 'ineq', 'fun': lambda x, i=i, ub=ub: ub - x[i]})

            result = optimize.minimize(
                problem, x0=problem.get_x0(),
                method=alg, constraints=cons,
                options={'maxiter': 100, 'disp': False}
            )
        else:
            result = optimize.minimize(
                problem, x0=problem.get_x0(),
                method=alg, bounds=problem.get_bounds(),
                options={'maxiter': 100, 'disp': False}
            )

        results[alg] = {
            'x': result.x,
            'fun': result.fun,
            'nfev': problem.eval_count,
            'success': result.success
        }
    except Exception as e:
        print(f"{alg} failed: {e}")

# Display comparison
print("\n=== Algorithm Comparison ===")
print("-" * 70)
print(f"{'Algorithm':<15} {'P_inter (bara)':<15} {'T_inter (°C)':<15} {'Power (kW)':<12} {'Evals'}")
print("-" * 70)
for alg, res in results.items():
    print(f"{alg:<15} {res['x'][0]:<15.1f} {res['x'][1]-273.15:<15.1f} {res['fun']:<12.1f} {res['nfev']}")

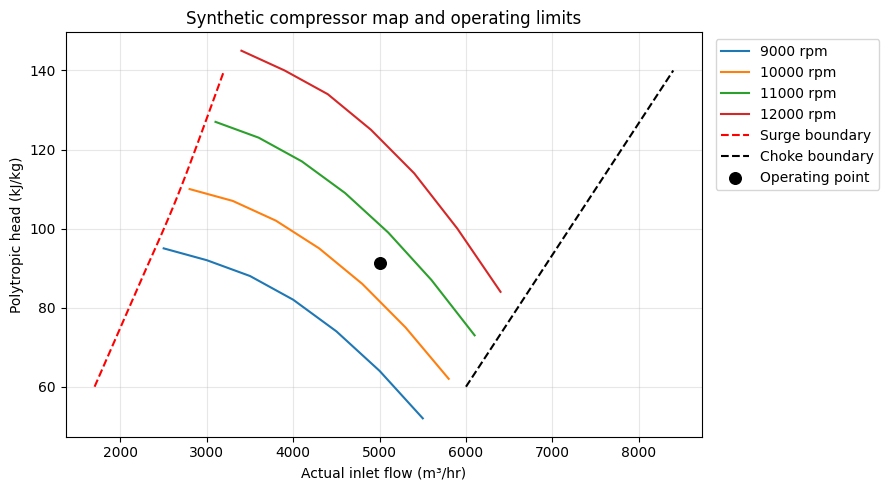

6. Equipment Constraints

Real processes have equipment limitations. Let’s add constraints for:

class ConstrainedOptimizationProblem(NeqSimOptimizationProblem):
    """
    Extended optimization problem with equipment constraints.
    """

    def __init__(self, process_factory, variable_specs, objective_func, constraint_specs):
        super().__init__(process_factory, variable_specs, objective_func)
        self.constraint_specs = constraint_specs

    def evaluate_constraints(self, x):
        """
        Evaluate all constraints.

        Returns:
        - List of constraint values (positive = feasible for inequality)
        """
        # Make sure process is up to date
        if self.process is None:
            self.evaluate(x)

        constraint_values = []
        for spec in self.constraint_specs:
            value = spec['evaluator'](self.process)
            if spec['type'] == 'max':
                # g(x) >= 0 means value <= limit
                constraint_values.append(spec['limit'] - value)
            else:  # 'min'
                # g(x) >= 0 means value >= limit
                constraint_values.append(value - spec['limit'])

        return constraint_values

    def get_scipy_constraints(self):
        """
        Return constraints in SciPy format for constrained optimizers.
        """
        constraints = []
        for i, spec in enumerate(self.constraint_specs):
            constraints.append({
                'type': 'ineq',
                'fun': lambda x, idx=i: self._constraint_func(x, idx)
            })
        return constraints

    def _constraint_func(self, x, constraint_idx):
        """Evaluate single constraint (for SciPy)."""
        self.evaluate(x)  # Updates self.process
        return self.evaluate_constraints(x)[constraint_idx]

print("ConstrainedOptimizationProblem class defined")

# Define equipment constraints
constraint_specs = [
    {
        'name': 'max_stage1_discharge_temp',
        'type': 'max',
        'limit': 423.15,  # 150°C
        'evaluator': lambda proc: proc.getUnit('stage1').getOutletStream().getTemperature('K')
    },
    {
        'name': 'max_stage2_discharge_temp',
        'type': 'max',
        'limit': 423.15,  # 150°C
        'evaluator': lambda proc: proc.getUnit('stage2').getOutletStream().getTemperature('K')
    },
    {
        'name': 'max_stage1_power',
        'type': 'max',
        'limit': 2500.0,  # kW
        'evaluator': lambda proc: proc.getUnit('stage1').getPower('kW')
    },
    {
        'name': 'max_stage2_power',
        'type': 'max',
        'limit': 2500.0,  # kW
        'evaluator': lambda proc: proc.getUnit('stage2').getPower('kW')
    },
    {
        'name': 'min_pressure_ratio_stage1',
        'type': 'min',
        'limit': 1.5,  # Minimum compression ratio
        'evaluator': lambda proc: (
            proc.getUnit('stage1').getOutletStream().getPressure('bara') /
            proc.getUnit('stage1').getInletStream().getPressure('bara')
        )
    }
]

# Create constrained problem
constrained_problem = ConstrainedOptimizationProblem(
    process_factory=create_gas_process,
    variable_specs=variable_specs,
    objective_func=total_power_objective,
    constraint_specs=constraint_specs
)

print(f"Defined {len(constraint_specs)} constraints:")
for spec in constraint_specs:
    print(f"  - {spec['name']}: {spec['type']} {spec['limit']}")

6.2 Compressor Curves and Surge/Choke Constraints

Compressor curves define the actual operating envelope. NeqSim supports:

Compressor Operating Envelope

                    Head
                     ↑
                     │        ╭──────────╮
                     │       ╱   Stone    ╲
                     │      ╱    Wall      ╲
              Surge │     ╱   (Choke)      ╲
              Curve │    ╱                  ╲
                    │   ╱                    ╲
                    │  ╱   Operating          ╲
                    │ ╱     Envelope           ╲
                    │╱                          ╲
                    └─────────────────────────────→ Flow
                         ↑                  ↑
                    Minimum Flow      Maximum Flow
                   (Surge Point)    (Stone Wall Point)

# Import compressor curve classes
from jpype import JArray, JDouble

CompressorChart = jneqsim.process.equipment.compressor.CompressorChart
CompressorChartGenerator = jneqsim.process.equipment.compressor.CompressorChartGenerator

def create_process_with_compressor_curves():
    """
    Create a gas compression process with compressor performance curves.
    """
    # Create natural gas fluid
    gas = SystemSrkEos(288.15, 30.0)  # 15°C, 30 bara
    gas.addComponent("nitrogen", 0.02)
    gas.addComponent("methane", 0.85)
    gas.addComponent("ethane", 0.08)
    gas.addComponent("propane", 0.05)
    gas.setMixingRule("classic")

    # Create process system
    process = ProcessSystem()

    # Feed stream
    feed = Stream("feed", gas)
    feed.setFlowRate(5000.0, "Am3/hr")  # Actual m³/hr
    feed.setPressure(30.0, "bara")
    feed.setTemperature(288.15, "K")
    process.add(feed)

    # Create compressor
    compressor = Compressor("compressor", feed)
    compressor.setOutletPressure(80.0)  # bara
    compressor.setPolytropicEfficiency(0.78)
    process.add(compressor)

    # ========================================
    # SET UP COMPRESSOR PERFORMANCE CURVES
    # ========================================

    # Get or create compressor chart
    chart = compressor.getCompressorChart()

    # Chart conditions: [temperature (°C), pressure (bara), density (kg/m³), MW (g/mol)]
    chart_conditions = JArray(JDouble)([25.0, 30.0, 25.0, 18.0])

    # Define speed curves (RPM)
    speeds = JArray(JDouble)([9000, 10000, 11000, 12000])

    # Flow values for each speed (Am3/hr)
    # Using Python lists, then converting to Java arrays
    flow_data = [
        [2500, 3000, 3500, 4000, 4500, 5000, 5500],  # 9000 RPM
        [2800, 3300, 3800, 4300, 4800, 5300, 5800],  # 10000 RPM
        [3100, 3600, 4100, 4600, 5100, 5600, 6100],  # 11000 RPM
        [3400, 3900, 4400, 4900, 5400, 5900, 6400]   # 12000 RPM
    ]

    # Head values for each speed (kJ/kg)
    head_data = [
        [95, 92, 88, 82, 74, 64, 52],   # 9000 RPM
        [110, 107, 102, 95, 86, 75, 62], # 10000 RPM
        [127, 123, 117, 109, 99, 87, 73], # 11000 RPM
        [145, 140, 134, 125, 114, 100, 84] # 12000 RPM
    ]

    # Polytropic efficiency for each speed (%)
    eff_data = [
        [74, 77, 79, 80, 79, 76, 71],   # 9000 RPM
        [75, 78, 80, 81, 80, 77, 72],   # 10000 RPM
        [74, 77, 79, 80, 79, 76, 71],   # 11000 RPM
        [73, 76, 78, 79, 78, 75, 70]    # 12000 RPM
    ]

    # Convert to Java 2D arrays
    n_speeds = len(speeds)
    n_points = len(flow_data[0])

    flow_array = JArray(JArray(JDouble))(n_speeds)
    head_array = JArray(JArray(JDouble))(n_speeds)
    eff_array = JArray(JArray(JDouble))(n_speeds)

    for i in range(n_speeds):
        flow_array[i] = JArray(JDouble)(flow_data[i])
        head_array[i] = JArray(JDouble)(head_data[i])
        eff_array[i] = JArray(JDouble)(eff_data[i])

    # Set the curves on the chart
    chart.setCurves(chart_conditions, speeds, flow_array, head_array, flow_array, eff_array)
    chart.setHeadUnit("kJ/kg")

    # ========================================
    # SET SURGE CURVE
    # ========================================
    surge_flow = JArray(JDouble)([2300, 2600, 2900, 3200])  # Am3/hr at surge
    surge_head = JArray(JDouble)([90, 105, 122, 140])        # kJ/kg at surge
    chart.getSurgeCurve().setCurve(chart_conditions, surge_flow, surge_head)

    # ========================================
    # SET STONE WALL (CHOKE) CURVE
    # ========================================
    stonewall_flow = JArray(JDouble)([5700, 6000, 6300, 6600])  # Am3/hr at choke
    stonewall_head = JArray(JDouble)([50, 60, 70, 80])           # kJ/kg at choke
    chart.getStoneWallCurve().setCurve(chart_conditions, stonewall_flow, stonewall_head)

    # Set compressor speed
    compressor.setSpeed(10500)  # RPM
    compressor.setUsePolytropicCalc(True)

    # Aftercooler
    aftercooler = Cooler("aftercooler", compressor.getOutletStream())
    aftercooler.setOutTemperature(313.15)  # 40°C
    process.add(aftercooler)

    process.run()
    return process

# Create the process
process_curves = create_process_with_compressor_curves()

# Get compressor info
comp = process_curves.getUnit("compressor")
print("=== Compressor with Performance Curves ===")
print(f"Flow rate: {comp.getInletStream().getFlowRate('Am3/hr'):.0f} Am3/hr")
print(f"Speed: {comp.getSpeed():.0f} RPM")
print(f"Polytropic head: {comp.getPolytropicHead('kJ/kg'):.1f} kJ/kg")
print(f"Polytropic efficiency: {comp.getPolytropicEfficiency()*100:.1f} %")
print(f"Power: {comp.getPower('kW'):.1f} kW")

# Check surge and choke margins
chart = comp.getCompressorChart()

# Get current operating point
flow = comp.getInletStream().getFlowRate("Am3/hr")
head = comp.getPolytropicHead("kJ/kg")

# Check distance to operating limits
surge_curve = chart.getSurgeCurve()
stonewall_curve = chart.getStoneWallCurve()

# Check if in surge or choked
is_surge = surge_curve.isSurge(head, flow)
is_stonewall = stonewall_curve.isStoneWall(head, flow)

print("\n=== Operating Limit Analysis ===")
print(f"Operating point: {flow:.0f} Am3/hr, {head:.1f} kJ/kg")
print(f"In surge: {is_surge}")
print(f"Is choked (stone wall): {is_stonewall}")

# Get surge and stonewall flows at current head
surge_flow = surge_curve.getSurgeFlow(head)
stonewall_flow = stonewall_curve.getStoneWallFlow(head)

print(f"\nAt head = {head:.1f} kJ/kg:")
print(f"  Surge flow: {surge_flow:.0f} Am3/hr")
print(f"  Stone wall flow: {stonewall_flow:.0f} Am3/hr")
print(f"  Current flow: {flow:.0f} Am3/hr")

# Calculate margins
surge_margin = (flow - surge_flow) / surge_flow * 100
stonewall_margin = (stonewall_flow - flow) / stonewall_flow * 100

print(f"\n  Surge margin: {surge_margin:.1f}%")
print(f"  Stone wall margin: {stonewall_margin:.1f}%")

6.2.1 Optimization with Compressor Curve Constraints

Now let’s optimize while respecting the compressor curve limits (surge and choke).

# Define compressor curve constraint evaluators

class CompressorCurveOptimization:
    """
    Optimization problem with compressor curve constraints.
    """

    def __init__(self):
        self.process = None
        self.eval_count = 0
        self.history = []

    def create_process(self):
        """Create fresh process with compressor curves."""
        return create_process_with_compressor_curves()

    def set_variables(self, x):
        """
        Set optimization variables.
        x[0] = flow rate (Am3/hr)
        x[1] = compressor speed (RPM)
        """
        flow_rate, speed = x
        self.process.getUnit("feed").setFlowRate(flow_rate, "Am3/hr")
        self.process.getUnit("compressor").setSpeed(speed)

    def objective(self, x):
        """
        Minimize specific power (kW per 1000 Am3/hr).
        """
        self.eval_count += 1
        self.process = self.create_process()
        self.set_variables(x)

        try:
            self.process.run()
            power = self.process.getUnit("compressor").getPower("kW")
            flow = x[0]  # Am3/hr
            specific_power = power / (flow / 1000.0)

            # Store history
            self.history.append({
                'x': x.copy(),
                'obj': specific_power,
                'feasible': self.check_feasibility()
            })

            return specific_power

        except Exception as e:
            print(f"Simulation failed: {e}")
            return 1e10

    def check_feasibility(self):
        """Check if operating point is within compressor envelope."""
        comp = self.process.getUnit("compressor")
        chart = comp.getCompressorChart()

        flow = comp.getInletStream().getFlowRate("Am3/hr")
        head = comp.getPolytropicHead("kJ/kg")

        is_surge = chart.getSurgeCurve().isSurge(head, flow)
        is_stonewall = chart.getStoneWallCurve().isStoneWall(head, flow)

        return not is_surge and not is_stonewall

    def surge_constraint(self, x):
        """
        Surge constraint: g(x) >= 0 means NOT in surge.
        Returns: (flow - surge_flow) / surge_flow
        """
        self.process = self.create_process()
        self.set_variables(x)
        self.process.run()

        comp = self.process.getUnit("compressor")
        chart = comp.getCompressorChart()

        flow = comp.getInletStream().getFlowRate("Am3/hr")
        head = comp.getPolytropicHead("kJ/kg")
        surge_flow = chart.getSurgeCurve().getSurgeFlow(head)

        # Positive = above surge, feasible
        return (flow - surge_flow) / surge_flow

    def stonewall_constraint(self, x):
        """
        Stone wall constraint: g(x) >= 0 means NOT choked.
        Returns: (stonewall_flow - flow) / stonewall_flow
        """
        comp = self.process.getUnit("compressor")
        chart = comp.getCompressorChart()

        flow = comp.getInletStream().getFlowRate("Am3/hr")
        head = comp.getPolytropicHead("kJ/kg")
        stonewall_flow = chart.getStoneWallCurve().getStoneWallFlow(head)

        # Positive = below stone wall, feasible
        return (stonewall_flow - flow) / stonewall_flow

    def min_surge_margin_constraint(self, x, min_margin=0.10):
        """
        Minimum surge margin constraint (default 10%).
        g(x) >= 0 means surge margin >= min_margin
        """
        self.process = self.create_process()
        self.set_variables(x)
        self.process.run()

        comp = self.process.getUnit("compressor")
        chart = comp.getCompressorChart()

        flow = comp.getInletStream().getFlowRate("Am3/hr")
        head = comp.getPolytropicHead("kJ/kg")
        surge_flow = chart.getSurgeCurve().getSurgeFlow(head)

        # Surge margin
        margin = (flow - surge_flow) / surge_flow

        # Positive = margin >= min_margin
        return margin - min_margin

    def max_power_constraint(self, x, max_power=3000.0):
        """
        Maximum power constraint.
        g(x) >= 0 means power <= max_power
        """
        comp = self.process.getUnit("compressor")
        power = comp.getPower("kW")

        return (max_power - power) / max_power

# Create optimization problem
curve_problem = CompressorCurveOptimization()

print("Compressor curve optimization problem defined")
print("Variables: [flow_rate (Am3/hr), speed (RPM)]")
print("Objective: Minimize specific power (kW per 1000 Am3/hr)")
print("Constraints:")
print("  - Surge margin >= 10%")
print("  - Not in stone wall (choke)")
print("  - Power <= 3000 kW")

# Run constrained optimization with compressor curve limits

# Variable bounds
bounds = [
    (3000.0, 6000.0),   # Flow rate: 3000-6000 Am3/hr
    (9000.0, 12000.0)   # Speed: 9000-12000 RPM
]

# Initial point
x0 = np.array([4500.0, 10500.0])

# Define constraints for scipy
constraints = [
    {
        'type': 'ineq',
        'fun': lambda x: curve_problem.min_surge_margin_constraint(x, 0.10)
    },
    {
        'type': 'ineq',
        'fun': lambda x: curve_problem.stonewall_constraint(x)
    },
    {
        'type': 'ineq',
        'fun': lambda x: curve_problem.max_power_constraint(x, 3000.0)
    }
]

# Optimize
curve_problem.eval_count = 0
curve_problem.history = []

result_curves = optimize.minimize(
    curve_problem.objective,
    x0=x0,
    method='SLSQP',
    bounds=bounds,
    constraints=constraints,
    options={'maxiter': 100, 'disp': True}
)

print("\n=== Optimization with Compressor Curve Constraints ===")
print(f"Success: {result_curves.success}")
print(f"Function evaluations: {curve_problem.eval_count}")
print(f"\nOptimal values:")
print(f"  Flow rate: {result_curves.x[0]:.0f} Am3/hr")
print(f"  Speed: {result_curves.x[1]:.0f} RPM")
print(f"\nMinimum specific power: {result_curves.fun:.2f} kW per 1000 Am3/hr")

# Verify constraints at optimum
curve_problem.process = curve_problem.create_process()
curve_problem.set_variables(result_curves.x)
curve_problem.process.run()

comp = curve_problem.process.getUnit("compressor")
chart = comp.getCompressorChart()
flow = comp.getInletStream().getFlowRate("Am3/hr")
head = comp.getPolytropicHead("kJ/kg")
power = comp.getPower("kW")

surge_flow = chart.getSurgeCurve().getSurgeFlow(head)
surge_margin = (flow - surge_flow) / surge_flow * 100

print(f"\nAt optimum:")
print(f"  Polytropic head: {head:.1f} kJ/kg")
print(f"  Power: {power:.1f} kW")
print(f"  Surge flow: {surge_flow:.0f} Am3/hr")
print(f"  Surge margin: {surge_margin:.1f}% (minimum 10%)")
print(f"  In surge: {chart.getSurgeCurve().isSurge(head, flow)}")

6.2.2 Using CompressorChartGenerator (Automatic Curves)

NeqSim can automatically generate compressor curves from templates. This is useful when you don’t have detailed vendor data.

# Automatic curve generation using templates

def create_process_with_generated_curves():
    """
    Create process with automatically generated compressor curves.
    """
    gas = SystemSrkEos(288.15, 30.0)
    gas.addComponent("nitrogen", 0.02)
    gas.addComponent("methane", 0.85)
    gas.addComponent("ethane", 0.08)
    gas.addComponent("propane", 0.05)
    gas.setMixingRule("classic")

    process = ProcessSystem()

    feed = Stream("feed", gas)
    feed.setFlowRate(5000.0, "Am3/hr")
    feed.setPressure(30.0, "bara")
    feed.setTemperature(288.15, "K")
    process.add(feed)

    compressor = Compressor("compressor", feed)
    compressor.setOutletPressure(80.0)
    process.add(compressor)

    # ========================================
    # AUTOMATIC CURVE GENERATION
    # ========================================

    # Create chart generator
    generator = CompressorChartGenerator(compressor)

    # Available templates:
    # - "BASIC_CENTRIFUGAL": General purpose
    # - "PIPELINE": High efficiency for pipeline compression
    # - "PROCESS": Process gas compression
    # - "HIGH_RATIO": High pressure ratio applications
    # - "LOW_FLOW": Low flow applications
    # - "HIGH_SPEED": High speed (>15000 RPM)
    # - "OIL_GAS": Offshore/oil & gas applications

    # Generate chart from template
    # Parameters: (template_name, number_of_speed_curves)
    chart = generator.generateFromTemplate("PIPELINE", 5)

    # Set the generated chart on the compressor
    compressor.setCompressorChart(chart)

    # Set operating speed (within the generated range)
    compressor.setSpeed(10000)  # RPM
    compressor.setUsePolytropicCalc(True)

    aftercooler = Cooler("aftercooler", compressor.getOutletStream())
    aftercooler.setOutTemperature(313.15)
    process.add(aftercooler)

    process.run()
    return process

# Create process with auto-generated curves
process_auto = create_process_with_generated_curves()

comp_auto = process_auto.getUnit("compressor")
chart_auto = comp_auto.getCompressorChart()

print("=== Process with Auto-Generated Compressor Curves ===")
print(f"Flow rate: {comp_auto.getInletStream().getFlowRate('Am3/hr'):.0f} Am3/hr")
print(f"Speed: {comp_auto.getSpeed():.0f} RPM")
print(f"Polytropic head: {comp_auto.getPolytropicHead('kJ/kg'):.1f} kJ/kg")
print(f"Polytropic efficiency: {comp_auto.getPolytropicEfficiency()*100:.1f} %")
print(f"Power: {comp_auto.getPower('kW'):.1f} kW")

# Check operating limits with generated curves
flow_auto = comp_auto.getInletStream().getFlowRate("Am3/hr")
head_auto = comp_auto.getPolytropicHead("kJ/kg")

print(f"\nOperating limits:")
print(f"  In surge: {chart_auto.getSurgeCurve().isSurge(head_auto, flow_auto)}")
print(f"  Is choked: {chart_auto.getStoneWallCurve().isStoneWall(head_auto, flow_auto)}")

6.2.3 Multi-Map MW Interpolation for Varying Gas Composition

When gas composition varies, use CompressorChartMWInterpolation to interpolate between maps measured at different molecular weights.

# Using MW interpolation charts for varying gas composition

CompressorChartMWInterpolation = jneqsim.process.equipment.compressor.CompressorChartMWInterpolation

def create_process_with_mw_chart():
    """
    Create process with multi-MW interpolation chart.
    """
    # Create gas with specific composition
    gas = SystemSrkEos(288.15, 30.0)
    gas.addComponent("nitrogen", 0.02)
    gas.addComponent("methane", 0.82)  # MW will be ~18 g/mol
    gas.addComponent("ethane", 0.10)
    gas.addComponent("propane", 0.06)
    gas.setMixingRule("classic")

    process = ProcessSystem()

    feed = Stream("feed", gas)
    feed.setFlowRate(4500.0, "Am3/hr")
    feed.setPressure(30.0, "bara")
    feed.setTemperature(288.15, "K")
    process.add(feed)

    compressor = Compressor("compressor", feed)
    compressor.setOutletPressure(80.0)
    process.add(compressor)

    # ========================================
    # MULTI-MW INTERPOLATION CHART
    # ========================================

    chart = CompressorChartMWInterpolation()
    chart.setHeadUnit("kJ/kg")
    chart.setAutoGenerateSurgeCurves(True)
    chart.setAutoGenerateStoneWallCurves(True)

    # Define speeds (common for all MW maps)
    speeds = JArray(JDouble)([9000, 10000, 11000, 12000])

    # Chart conditions
    chart_conditions = JArray(JDouble)([25.0, 30.0, 25.0, 18.0])

    # === MAP AT MW = 16 g/mol (lighter gas, e.g., high methane) ===
    flow_16 = [
        JArray(JDouble)([3200, 3700, 4200, 4700, 5200]),
        JArray(JDouble)([3500, 4000, 4500, 5000, 5500]),
        JArray(JDouble)([3800, 4300, 4800, 5300, 5800]),
        JArray(JDouble)([4100, 4600, 5100, 5600, 6100])
    ]
    head_16 = [
        JArray(JDouble)([100, 96, 90, 82, 72]),
        JArray(JDouble)([115, 111, 104, 95, 84]),
        JArray(JDouble)([132, 127, 119, 109, 96]),
        JArray(JDouble)([151, 145, 136, 125, 110])
    ]
    eff_16 = [
        JArray(JDouble)([76, 79, 81, 79, 75]),
        JArray(JDouble)([77, 80, 82, 80, 76]),
        JArray(JDouble)([76, 79, 81, 79, 75]),
        JArray(JDouble)([75, 78, 80, 78, 74])
    ]

    flow_16_arr = JArray(JArray(JDouble))(flow_16)
    head_16_arr = JArray(JArray(JDouble))(head_16)
    eff_16_arr = JArray(JArray(JDouble))(eff_16)

    chart.addMapAtMW(16.0, chart_conditions, speeds, flow_16_arr, head_16_arr, eff_16_arr)

    # === MAP AT MW = 20 g/mol (heavier gas, more C2/C3) ===
    flow_20 = [
        JArray(JDouble)([2900, 3400, 3900, 4400, 4900]),
        JArray(JDouble)([3200, 3700, 4200, 4700, 5200]),
        JArray(JDouble)([3500, 4000, 4500, 5000, 5500]),
        JArray(JDouble)([3800, 4300, 4800, 5300, 5800])
    ]
    head_20 = [
        JArray(JDouble)([88, 85, 80, 73, 64]),
        JArray(JDouble)([102, 98, 92, 84, 74]),
        JArray(JDouble)([117, 113, 106, 97, 85]),
        JArray(JDouble)([134, 129, 121, 111, 98])
    ]
    eff_20 = [
        JArray(JDouble)([74, 77, 79, 77, 73]),
        JArray(JDouble)([75, 78, 80, 78, 74]),
        JArray(JDouble)([74, 77, 79, 77, 73]),
        JArray(JDouble)([73, 76, 78, 76, 72])
    ]

    flow_20_arr = JArray(JArray(JDouble))(flow_20)
    head_20_arr = JArray(JArray(JDouble))(head_20)
    eff_20_arr = JArray(JArray(JDouble))(eff_20)

    chart.addMapAtMW(20.0, chart_conditions, speeds, flow_20_arr, head_20_arr, eff_20_arr)

    # Apply chart to compressor
    compressor.setCompressorChart(chart)
    compressor.setSpeed(10500)
    compressor.setUsePolytropicCalc(True)

    aftercooler = Cooler("aftercooler", compressor.getOutletStream())
    aftercooler.setOutTemperature(313.15)
    process.add(aftercooler)

    process.run()
    return process

# Create process with MW interpolation
process_mw = create_process_with_mw_chart()

comp_mw = process_mw.getUnit("compressor")
chart_mw = comp_mw.getCompressorChart()

# Get actual MW from the fluid
fluid = comp_mw.getInletStream().getFluid()
actual_mw = fluid.getMolarMass() * 1000  # Convert to g/mol

print("=== Multi-MW Interpolation Chart ===")
print(f"Actual gas MW: {actual_mw:.1f} g/mol")
print(f"(Chart interpolates between MW=16 and MW=20 maps)")
print(f"\nOperating point:")
print(f"  Flow rate: {comp_mw.getInletStream().getFlowRate('Am3/hr'):.0f} Am3/hr")
print(f"  Speed: {comp_mw.getSpeed():.0f} RPM")
print(f"  Polytropic head: {comp_mw.getPolytropicHead('kJ/kg'):.1f} kJ/kg")
print(f"  Polytropic efficiency: {comp_mw.getPolytropicEfficiency()*100:.1f} %")
print(f"  Power: {comp_mw.getPower('kW'):.1f} kW")

Summary: Compressor Curve Constraints

Constraint Type Method Description
Surge limit getSurgeCurve().isSurge(head, flow) Returns True if in surge region
Stone wall (choke) getStoneWallCurve().isStoneWall(head, flow) Returns True if choked
Surge flow getSurgeCurve().getSurgeFlow(head) Minimum flow at given head
Stone wall flow getStoneWallCurve().getStoneWallFlow(head) Maximum flow at given head
Surge margin (flow - surge_flow) / surge_flow Percent above surge line

Key Classes

Class Use Case
CompressorChart Standard multi-speed performance maps
CompressorChartGenerator Auto-generate curves from templates
CompressorChartMWInterpolation Multiple maps at different MWs
CompressorChartKhader2015 Automatic MW correction using sound speed scaling
# Optimize with constraints using SLSQP
constrained_problem.eval_count = 0

result_slsqp = optimize.minimize(
    constrained_problem,
    x0=constrained_problem.get_x0(),
    method='SLSQP',
    bounds=constrained_problem.get_bounds(),
    constraints=constrained_problem.get_scipy_constraints(),
    options={'maxiter': 100, 'disp': True}
)

print("\n=== Constrained Optimization Results (SLSQP) ===")
print(f"Success: {result_slsqp.success}")
print(f"Function evaluations: {constrained_problem.eval_count}")
print(f"\nOptimal values:")
print(f"  Intermediate pressure: {result_slsqp.x[0]:.2f} bara")
print(f"  Intercooler temperature: {result_slsqp.x[1] - 273.15:.1f} °C")
print(f"\nMinimum total power: {result_slsqp.fun:.1f} kW")

# Check constraints at optimum
print("\nConstraint values at optimum (positive = satisfied):")
constraint_values = constrained_problem.evaluate_constraints(result_slsqp.x)
for i, spec in enumerate(constraint_specs):
    status = "✓" if constraint_values[i] >= 0 else "✗"
    print(f"  {status} {spec['name']}: {constraint_values[i]:.2f}")

7. Multi-Objective with Pareto

For multi-objective optimization, we can use the weighted-sum method to generate Pareto points.

# Define two objectives: minimize power, maximize throughput

def power_per_kg(process):
    """Power consumption per unit throughput (kW per 1000 kg/hr)."""
    total_power = (process.getUnit('stage1').getPower('kW') +
                   process.getUnit('stage2').getPower('kW'))
    flow = process.getUnit('feed').getFlowRate('kg/hr')
    return total_power / (flow / 1000.0)

def negative_throughput(process):
    """Negative throughput (for minimization)."""
    return -process.getUnit('aftercooler').getOutletStream().getFlowRate('kg/hr')

# Variables: flow rate and intermediate pressure
pareto_variables = [
    {
        'name': 'flow_rate',
        'min': 20000.0,
        'max': 100000.0,
        'setter': lambda proc, val: proc.getUnit('feed').setFlowRate(val, 'kg/hr')
    },
    {
        'name': 'intermediate_pressure',
        'min': 40.0,
        'max': 80.0,
        'setter': lambda proc, val: proc.getUnit('stage1').setOutletPressure(val)
    }
]

print("Multi-objective problem defined:")
print("  Objective 1: Minimize specific power (kW/1000 kg/hr)")
print("  Objective 2: Maximize throughput (kg/hr)")

# Generate Pareto front using weighted-sum method

def weighted_objective(weights, objectives):
    """Create weighted-sum objective function."""
    def combined(process):
        values = [obj(process) for obj in objectives]
        return sum(w * v for w, v in zip(weights, values))
    return combined

# Weight combinations
n_points = 11
weight_sets = [(w, 1-w) for w in np.linspace(0, 1, n_points)]

pareto_points = []

print("Generating Pareto front...")
for i, weights in enumerate(weight_sets):
    # Normalize weights (since objectives have different scales)
    w1 = weights[0] * 100  # Scale specific power weight
    w2 = weights[1] * 0.001  # Scale throughput weight

    # Create problem with weighted objective
    combined_obj = weighted_objective(
        [w1, w2],
        [power_per_kg, negative_throughput]
    )

    problem_pareto = NeqSimOptimizationProblem(
        process_factory=create_gas_process,
        variable_specs=pareto_variables,
        objective_func=combined_obj
    )

    # Optimize
    result = optimize.minimize(
        problem_pareto,
        x0=problem_pareto.get_x0(),
        method='Powell',
        bounds=problem_pareto.get_bounds(),
        options={'maxiter': 50, 'disp': False}
    )

    # Evaluate both objectives at optimum
    problem_pareto.evaluate(result.x)
    spec_power = power_per_kg(problem_pareto.process)
    throughput = problem_pareto.process.getUnit('aftercooler').getOutletStream().getFlowRate('kg/hr')

    pareto_points.append({
        'weights': weights,
        'x': result.x,
        'specific_power': spec_power,
        'throughput': throughput
    })

    print(f"  Point {i+1}/{n_points}: w={weights[0]:.1f}, Power={spec_power:.2f}, Throughput={throughput:.0f}")

print("\nPareto front generated!")

# Plot Pareto front
throughputs = [p['throughput'] for p in pareto_points]
spec_powers = [p['specific_power'] for p in pareto_points]

plt.figure(figsize=(10, 6))
plt.scatter(throughputs, spec_powers, c='blue', s=100, zorder=5)
plt.plot(throughputs, spec_powers, 'b--', alpha=0.5, zorder=4)

# Annotate some points
for i in [0, n_points//2, n_points-1]:
    plt.annotate(f'w={pareto_points[i]["weights"][0]:.1f}',
                 xy=(throughputs[i], spec_powers[i]),
                 xytext=(10, 10), textcoords='offset points')

plt.xlabel('Throughput (kg/hr)', fontsize=12)
plt.ylabel('Specific Power (kW per 1000 kg/hr)', fontsize=12)
plt.title('Pareto Front: Throughput vs Specific Power', fontsize=14)
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

8. Global Optimization

For problems with multiple local optima, use global optimizers like differential_evolution.

# Global optimization with Differential Evolution

# Create a more complex problem with 3 variables
global_variables = [
    {
        'name': 'flow_rate',
        'min': 30000.0,
        'max': 80000.0,
        'setter': lambda proc, val: proc.getUnit('feed').setFlowRate(val, 'kg/hr')
    },
    {
        'name': 'intermediate_pressure',
        'min': 40.0,
        'max': 85.0,
        'setter': lambda proc, val: proc.getUnit('stage1').setOutletPressure(val)
    },
    {
        'name': 'intercooler_temp',
        'min': 293.15,
        'max': 323.15,
        'setter': lambda proc, val: proc.getUnit('intercooler').setOutTemperature(val)
    }
]

global_problem = NeqSimOptimizationProblem(
    process_factory=create_gas_process,
    variable_specs=global_variables,
    objective_func=total_power_objective
)

print("Running Differential Evolution (global optimizer)...")
print("This may take a minute...\n")

result_de = optimize.differential_evolution(
    global_problem,
    bounds=global_problem.get_bounds(),
    maxiter=30,
    popsize=5,  # Small population for faster demo
    mutation=(0.5, 1.0),
    recombination=0.7,
    seed=42,
    disp=True,
    polish=True  # Use local optimization at the end
)

print("\n=== Differential Evolution Results ===")
print(f"Success: {result_de.success}")
print(f"Function evaluations: {result_de.nfev}")
print(f"\nOptimal values:")
for i, var in enumerate(global_variables):
    if 'temp' in var['name'].lower():
        print(f"  {var['name']}: {result_de.x[i] - 273.15:.1f} °C")
    else:
        print(f"  {var['name']}: {result_de.x[i]:.1f}")
print(f"\nMinimum total power: {result_de.fun:.1f} kW")

9. Gradient-Based Optimization

For smooth problems, gradient-based methods can be more efficient. We can estimate gradients numerically.

# Gradient-based optimization with L-BFGS-B

problem.eval_count = 0

result_lbfgs = optimize.minimize(
    problem,
    x0=problem.get_x0(),
    method='L-BFGS-B',
    bounds=problem.get_bounds(),
    options={
        'maxiter': 100,
        'disp': True,
        'eps': 0.1  # Step size for numerical gradient
    }
)

print("\n=== L-BFGS-B Results ===")
print(f"Success: {result_lbfgs.success}")
print(f"Function evaluations: {problem.eval_count}")
print(f"Optimal intermediate pressure: {result_lbfgs.x[0]:.2f} bara")
print(f"Optimal intercooler temp: {result_lbfgs.x[1] - 273.15:.1f} °C")
print(f"Minimum total power: {result_lbfgs.fun:.1f} kW")

# Custom gradient estimation with central differences

def estimate_gradient(problem, x, eps=0.1):
    """
    Estimate gradient using central differences.

    Parameters:
    - problem: Optimization problem
    - x: Point at which to evaluate gradient
    - eps: Step size

    Returns:
    - Gradient vector
    """
    n = len(x)
    grad = np.zeros(n)

    for i in range(n):
        x_plus = x.copy()
        x_minus = x.copy()
        x_plus[i] += eps
        x_minus[i] -= eps

        f_plus = problem(x_plus)
        f_minus = problem(x_minus)

        grad[i] = (f_plus - f_minus) / (2 * eps)

    return grad

# Estimate gradient at initial point
x0 = problem.get_x0()
grad = estimate_gradient(problem, x0, eps=1.0)

print(f"Gradient at initial point {x0}:")
print(f"  d(Power)/d(P_inter) = {grad[0]:.2f} kW/bara")
print(f"  d(Power)/d(T_inter) = {grad[1]:.2f} kW/K")
print(f"\nInterpretation:")
print(f"  {'Increase' if grad[0] < 0 else 'Decrease'} P_inter to reduce power")
print(f"  {'Increase' if grad[1] < 0 else 'Decrease'} T_inter to reduce power")

10. Best Practices

Algorithm Selection Guide

Problem Type Recommended Algorithm SciPy Function
Smooth, unconstrained L-BFGS-B minimize(..., method='L-BFGS-B')
Smooth, constrained SLSQP, trust-constr minimize(..., method='SLSQP')
Non-smooth, low dimension Nelder-Mead, Powell minimize(..., method='Nelder-Mead')
Many local optima Differential Evolution differential_evolution(...)
Black-box, noisy COBYLA, Nelder-Mead minimize(..., method='COBYLA')
Multi-objective Weighted sum, pymoo Custom or pymoo.optimize

Tips for Success

# Best practice: Complete optimization workflow

def optimize_neqsim_process(
    process_factory,
    variables,
    objective,
    constraints=None,
    method='Powell',
    maxiter=100
):
    """
    Complete workflow for optimizing a NeqSim process.

    Parameters:
    - process_factory: Callable that creates a ProcessSystem
    - variables: List of variable specifications
    - objective: Callable(process) -> float to minimize
    - constraints: Optional list of constraint specifications
    - method: Optimization algorithm
    - maxiter: Maximum iterations

    Returns:
    - Dictionary with results
    """
    # Create problem
    if constraints:
        problem = ConstrainedOptimizationProblem(
            process_factory, variables, objective, constraints
        )
        scipy_constraints = problem.get_scipy_constraints()
    else:
        problem = NeqSimOptimizationProblem(
            process_factory, variables, objective
        )
        scipy_constraints = None

    # Run optimization
    result = optimize.minimize(
        problem,
        x0=problem.get_x0(),
        method=method,
        bounds=problem.get_bounds(),
        constraints=scipy_constraints,
        options={'maxiter': maxiter, 'disp': False}
    )

    # Package results
    return {
        'success': result.success,
        'optimal_values': dict(zip([v['name'] for v in variables], result.x)),
        'objective': result.fun,
        'evaluations': problem.eval_count,
        'process': problem.process
    }

# Example usage
results = optimize_neqsim_process(
    process_factory=create_gas_process,
    variables=variable_specs,
    objective=total_power_objective,
    method='Powell'
)

print("=== Optimization Results ===")
print(f"Success: {results['success']}")
print(f"Evaluations: {results['evaluations']}")
print(f"\nOptimal values:")
for name, value in results['optimal_values'].items():
    print(f"  {name}: {value:.2f}")
print(f"\nObjective: {results['objective']:.1f} kW")

Common Pitfalls and Solutions

Problem Solution
Simulation fails for some x Return large penalty value
Process state carries over Create fresh process each evaluation
Slow convergence Normalize variables to similar scales
Local optima Use global optimizer first, then polish
Constraint violations Use penalty method or constrained optimizer

Key Takeaways

  1. Wrap NeqSim in a callable that SciPy can optimize
  2. Create fresh process each evaluation to avoid state issues
  3. Handle failures gracefully with penalty values
  4. Choose algorithm based on problem characteristics
  5. Validate results by checking constraints and physical feasibility

Summary

This notebook demonstrated:

✅ Creating a wrapper class for NeqSim process optimization
✅ Using SciPy optimizers (Nelder-Mead, Powell, SLSQP, L-BFGS-B)
✅ Handling equipment constraints with constraint functions
✅ Multi-objective optimization with weighted-sum Pareto
✅ Global optimization with differential evolution
✅ Gradient estimation for gradient-based methods
