Terraform Baseline

Terraform baseline is:

• A set of best practices for creating reusable Terraform modules using the Azure provider.
• A library of reusable Terraform modules that have been created using these best practices.

Before using Terraform baseline, you should be familiar with the following pages from the official Terraform documentation:

• Standard Module Structure
• Style Guide
• Version Constraints
• Publishing Modules

Core principles

The best practices defined by the Terraform baseline are based on a set of core principles:

• Simplicity: The contents of a module should be minimal and simple.
• Consistency: A module should follow consistent naming conventions, structure and coding standards.
• Reusability: A module should be designed to be reusable across different projects and environments.
• Transparency: The purpose of a module should be clear and well-documented.
• Predictability: The behavior of a module should be predictable.
• Security: A module should follow security best practices to minimize risks.
• Maintainability: A module should be easy to maintain with minimal technical depth.

Usage

Version updates

Use Dependabot to keep modules you use updated to the latest versions.

Create a Dependabot configuration file .github/dependabot.yml in your repository containing the following configuration:

version: 2
updates:
  - package-ecosystem: terraform
    directories: [/terraform/**/*]
    groups:
      terraform:
        patterns: ["*"]

Repository

• Use this template when creating your repository.

• Use the common naming convention terraform-azurerm-<module> when naming your repository, where <module> is the name of the module.

  Modules should be named after the corresponding Azure CLI group or subgroup, for example:

  • Terraform module key-vault corresponds to Azure CLI group keyvault.

  • Terraform module storage corresponds to Azure CLI group storage.

  • Terraform module log-analytics corresponds to Azure CLI subgroup log-analytics.

!!! note Azure CLI uses inconsistent separation of words in group names. We choose to consistenly separate words by - in module names.

• Configure the following accesses for the repository:

  Team	Role
  @equinor/terraform-baseline	Write
  @equinor/terraform-baseline-admins	Admin
  @equinor/terraform-baseline-maintainers	Maintain

• Configure the following code owners in a file .github/CODEOWNERS:

    * @equinor/terraform-baseline-maintainers

    **/CODEOWNERS @equinor/terraform-baseline-admins


• Add topics terraform-baseline and terraform-module to the repository.

Resources

• By default, configure resources based on Microsoft security recommendations, e.g. Security recommendations for Blob storage.

Roles and scope

• Use resources that do not require more than Contributor role at the resource group scope. If you need to use a higher role, create an example instead.

Hidden resources

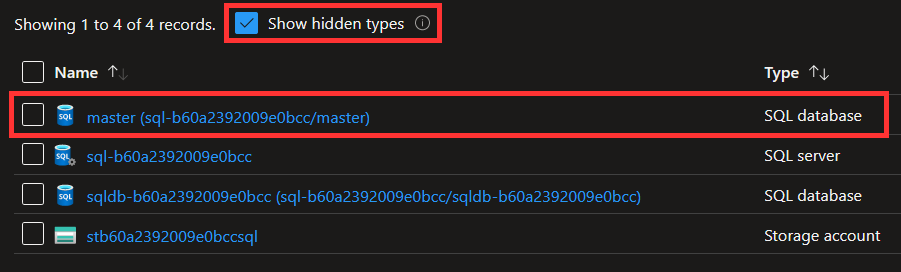

• Don’t create resources that are automatically created by Azure, e.g. hidden resources such as the master database for an Azure SQL server:



Modules

• A single module call should create a single instance of the main resource created by the module. For example, the web-app module should create a single web app, and the sql module should create a single server. This creates a common expectation for the behavior of our modules.
• A module should not create just a single resource. Exceptions can be made if that resource requires complex configuration or a stringent set of predefined parameters.

Submodules

If a resource is a child of another resource:

• The parent resource should be configured as a module
• The child resource should be configured as a submodule

For example, the SQL database resource is a child of the SQL server resource (a SQL database cannot exist without a SQL server):

• The SQL server resource should be configured as a module sql
• The SQL database resource should be configured as a submodule sql//modules/database

Control plane and data plane

• A module should only perform control plane operations (e.g., managing Storage account or Key vault), not data plane operations (e.g., managing Storage container or Key vault secret). See control plane and data plane in Microsoft docs.

  Performing data plane operations usually require workarounds for dealing with firewalls when run from an automated pipeline that deviate from the deterministic approach promoted by Terraform (e.g, temporarily disabling firewall or temporarily adding own IP to firewall). This may lead to the decision of disabling a resource firewall because it is preventing data plane operations from a pipeline, lowering the security of the resource.

  Data plane operations should be handled outside of Terraform.

  Note Might be irrelevant depending on the implementation of github/roadmap#614.

Conditional resources

Conditional resources refers to the creation of 0 or 1 resources based on a condition.

Use the count meta-argument to conditionally create resources based on a static value, for example a local or variable of type string or bool.

Using a variable of type string string is the more extensible approach, as you can add more allowed values down the road:

variable "kind" {
  description = "The kind of Web App to create. Allowed values are \"Linux\" and \"Windows\"."
  type        = string
  default     = "Linux"

  validation {
    condition     = contains(["Linux", "Windows"], var.kind)
    error_message = "Kind must be \"Linux\" or \"Windows\"."
  }
}

resource "azurerm_linux_web_app" "this" {
  count = var.kind == "Linux" ? 1 : 0
}

resource "azurerm_windows_web_app" "this" {
  count = var.kind == "Windows" ? 1 : 0
}

Repeatable resources

Repeatable resources refers to the creation of 0 or more resources based on a value.

For repeatable resources, use a variable of type map(object()) to dynamically create the resources, where setting the value to {} will not create any resources.

variable "firewall_rules" {
  description = "A map of SQL firewall rules to create."

  type = map(object({
    name             = string
    start_ip_address = string
    end_ip_address   = string
  }))

  default = {}
}

resource "azurerm_mssql_firewall_rule" "this" {
  for_each = var.firewall_rules

  name             = each.value.name
  start_ip_address = each.value.start_ip_address
  end_ip_address   = each.value.end_ip_address
}

Repeatable nested blocks

Repeatable nested blocks refers to the creation of 0 or more dynamic blocks based on a value.

For repeatable nested blocks, use a variable of type list(object()) to dynamically create the nested blocks, where setting the value to [] will not create any nested blocks:

variable "auth_settings_active_directory" {
  description = "A list of authentication settings using the Active Directory provider to configure for this Linux web app."

  type = list(object({
    client_id                  = string
    client_secret_setting_name = string
  }))

  default = []
}

resource "azurerm_linux_web_app" "this" {
  # omitted

  auth_settings {
    enabled = length(var.auth_settings_active_directory) == 0 ? false : true

    dynamic "active_directory" {
      for_each = var.auth_settings_active_directory

      content {
        client_id                  = active_directory.value["client_id"]
        client_secret_setting_name = active_directory.value["client_secret_setting_name"]
      }
    }
  }
}

Non-repeatable nested blocks

Non-repeatable nested blocks refers to the creation of 0 or 1 dynamic blocks based on a value.

For non-repeatable nested blocks, use a variable of type object() to dynamically create the nested block, where setting the value to null will not create the nested block:

variable "blob_properties" {
  description = "The blob properties for this storage account."

  type = object({
    versioning_enabled  = optional(bool, true)
    change_feed_enabled = optional(bool, true)
  })

  default = {}
}

resource "azurerm_storage_account" "this" {
  # omitted

  dynamic "blob_properties" {
    for_each = var.blob_properties != null ? [var.blob_properties] : []

    content {
      versioning_enabled  = blob_properties.value["versioning_enabled"]
      change_feed_enabled = blob_properties.value["change_feed_enabled"]
    }
  }
}

!!! abstract “Rationale” A nested block may not be supported in certain scenarios. For example, the blob_properties nested block for the azurerm_storage_account resource is only supported if the value of the account_kind argument is set to StorageV2 or BlobStorage.

!!! info “Exceptions” - Blocks that are defined as required by the provider (e.g. the site_config block for the azurerm_linux_web_app resource). - Blocks that are optional but requires an argument to enable/disable its functionality (e.g. the auth_settings block for the azurerm_linux_web_app resource which requires an argument enabled).

Variables and outputs

General

• All arguments should be made available as variables.
• All attributes should be made available as outputs.

Variable and output names

• Variables should follow a common naming convention:

     <resource>_<block>_<argument>


• Outputs should follow a common naming convetion:

     <resource>_<block>_<attribute>


  !!! info “Exception” Variable and output names that contain the module name. For example, in module storage the variable storage_account_name should be named account_name instead.

Variable and output descriptions

• Use description to describe the values of variables and outputs.
• If valid variable values is known:

  1. If set of valid values is known, append to description:

      Value must be X or Y.


     Else, if range of valid values is known, append to description:

        Value must be between X and Y.


     Else, if subset of valid values is known, append to description:

        Possible values include X, Y and Z.


     Else, if format of valid values is known, append to description:

        Value must be in F format, e.g. X, Y and Z.


  2. Add custom validation rules to check if variable value is valid.

Variable and output types

• Use simple types (string, number and bool) over complex types (list, object and map) for variables and outputs where possible:

  !!! abstract “Rationale” Variables and outputs of simpler types are easier to write good descriptions for. For example, it’s easier to write a good description for a simple string than for an object with multiple string properties. It’s also easier for a user to pass a simple string to a variable than to construct and pass a complex object.

Meta-arguments

Lifecycle

• The prevent_destroy lifecycle meta-argument should be used on stateful resources (e.g. databases) to mitigate the possibility of accidental data loss.
• The ignore_changes lifecycle meta-argument should be used sparingly, as heavy use could lead to configuration drift.

Testing

• Automated tests should be implemented for all variants of the relevant resource using Terratest. For example, in the storage module, automated tests should be implemented for standard GPv2 storage, premium GPv2 storage, standard blob storage, premium block blob storage and premium file storage.
