ProductionOptimizer Tutorial

Note: This is an auto-generated Markdown version of the Jupyter notebook ProductionOptimizer_Tutorial.ipynb. You can also view it on nbviewer or open in Google Colab.

ProductionOptimizer - Comprehensive Tutorial

This notebook provides a complete guide to using the ProductionOptimizer class from NeqSim for process optimization.

Introduction
Setup and Imports
Search Algorithms
Single-Variable Optimization
Multi-Variable Optimization
Objectives and Constraints
Pareto Multi-Objective Optimization
Configuration Options
Advanced Usage
Best Practices

1. Introduction

The ProductionOptimizer is a general-purpose optimization utility for NeqSim process models. It supports:

Feature	Description
Single-variable optimization	Optimize flow rate with a single feed stream
Multi-variable optimization	Optimize multiple decision variables simultaneously
Multiple search algorithms	Binary, Golden-Section, Nelder-Mead, Particle Swarm
Custom objectives	Maximize throughput, minimize power, or any custom metric
Hard and soft constraints	Equipment limits with penalty functions
Pareto optimization	Multi-objective trade-off analysis
Parallel evaluation	Evaluate scenarios in parallel

When to Use ProductionOptimizer vs ProcessOptimizationEngine

Scenario	Use
Find max throughput at fixed pressures	`ProcessOptimizationEngine`
Custom objective function	`ProductionOptimizer`
Multiple decision variables	`ProductionOptimizer`
Pareto multi-objective	`ProductionOptimizer`
Equipment bottleneck detection	Either (both support it)

2. Setup and Imports

# Import neqsim-python (ensure neqsim is installed: pip install neqsim)
from neqsim.neqsimpython import jneqsim
from jpype import JImplements, JOverride, JArray, JDouble
import jpype

# Import Java classes
ProductionOptimizer = jneqsim.process.util.optimizer.ProductionOptimizer
OptimizationConfig = ProductionOptimizer.OptimizationConfig
OptimizationObjective = ProductionOptimizer.OptimizationObjective
OptimizationConstraint = ProductionOptimizer.OptimizationConstraint
ManipulatedVariable = ProductionOptimizer.ManipulatedVariable
SearchMode = ProductionOptimizer.SearchMode
ObjectiveType = ProductionOptimizer.ObjectiveType
ConstraintDirection = ProductionOptimizer.ConstraintDirection
ConstraintSeverity = ProductionOptimizer.ConstraintSeverity

# Process equipment imports
ProcessSystem = jneqsim.process.processmodel.ProcessSystem
Stream = jneqsim.process.equipment.stream.Stream
Compressor = jneqsim.process.equipment.compressor.Compressor
Separator = jneqsim.process.equipment.separator.Separator
Cooler = jneqsim.process.equipment.heatexchanger.Cooler
ThrottlingValve = jneqsim.process.equipment.valve.ThrottlingValve

# Thermo imports
SystemSrkEos = jneqsim.thermo.system.SystemSrkEos

print("NeqSim ProductionOptimizer loaded successfully!")
print(f"Available search modes: {[str(m) for m in SearchMode.values()]}")

3. Search Algorithms

ProductionOptimizer supports four search algorithms:

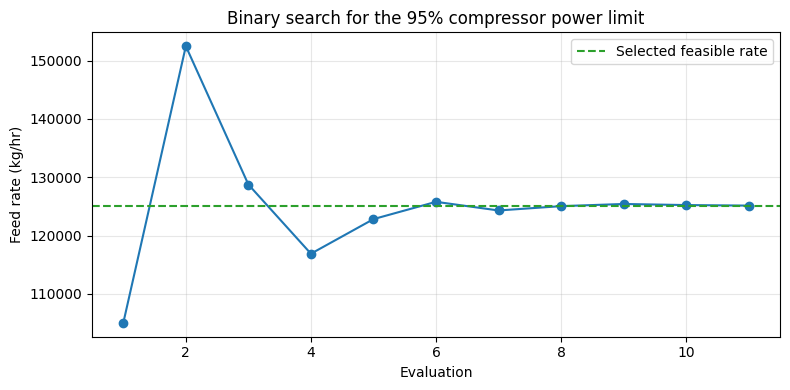

3.1 BINARY_FEASIBILITY

Best for: Single-variable problems where feasibility is monotonic
How it works: Binary search on flow rate, checking feasibility at each point
Convergence: O(log n) - very fast
Limitations: Assumes higher flow → more likely to violate constraints

3.2 GOLDEN_SECTION_SCORE

Best for: Single-variable non-monotonic problems
How it works: Golden-section search on composite score (feasibility + objective)
Convergence: O(log n) iterations
Limitations: Single variable only

3.3 NELDER_MEAD_SCORE

Best for: Multi-variable optimization (2-10 variables)
How it works: Simplex-based derivative-free optimization
Convergence: Good for smooth objective landscapes
Limitations: May get stuck in local optima

3.4 PARTICLE_SWARM_SCORE

Best for: Global optimization with many local optima
How it works: Swarm intelligence with particles exploring the search space
Convergence: Slower but more global
Parameters: swarmSize, inertiaWeight, cognitiveWeight, socialWeight

# Display all search modes and their use cases
search_modes = {
    "BINARY_FEASIBILITY": {
        "variables": "1",
        "speed": "Fastest",
        "use_case": "Monotonic feasibility problems"
    },
    "GOLDEN_SECTION_SCORE": {
        "variables": "1",
        "speed": "Fast",
        "use_case": "Non-monotonic single variable"
    },
    "NELDER_MEAD_SCORE": {
        "variables": "2-10",
        "speed": "Medium",
        "use_case": "Multi-variable, smooth landscape"
    },
    "PARTICLE_SWARM_SCORE": {
        "variables": "Any",
        "speed": "Slow",
        "use_case": "Global search, many local optima"
    }
}

print("Search Algorithm Comparison:")
print("-" * 70)
print(f"{'Algorithm':<25} {'Variables':<10} {'Speed':<10} {'Use Case'}")
print("-" * 70)
for name, info in search_modes.items():
    print(f"{name:<25} {info['variables']:<10} {info['speed']:<10} {info['use_case']}")

4. Single-Variable Optimization

The simplest case: optimize flow rate of a single feed stream.

# Create a simple gas compression process
def create_compression_process():
    """Create a simple gas compression system for optimization."""
    # Create gas fluid
    gas = SystemSrkEos(288.15, 50.0)  # 15°C, 50 bara
    gas.addComponent("methane", 0.85)
    gas.addComponent("ethane", 0.10)
    gas.addComponent("propane", 0.05)
    gas.setMixingRule("classic")

    # Create process
    process = ProcessSystem()

    # Feed stream
    feed = Stream("feed", gas)
    feed.setFlowRate(50000.0, "kg/hr")
    feed.setPressure(50.0, "bara")
    feed.setTemperature(288.15, "K")
    process.add(feed)

    # Compressor
    compressor = Compressor("compressor", feed)
    compressor.setOutletPressure(100.0)  # bara
    compressor.setPolytropicEfficiency(0.78)
    process.add(compressor)

    # Aftercooler
    cooler = Cooler("cooler", compressor.getOutletStream())
    cooler.setOutTemperature(313.15)  # 40°C
    process.add(cooler)

    process.run()
    return process, feed

# Create the process
process, feed = create_compression_process()
print(f"Initial flow rate: {feed.getFlowRate('kg/hr'):.0f} kg/hr")
print(f"Compressor power: {process.getUnit('compressor').getPower('kW'):.1f} kW")

# Single-variable optimization: maximize flow rate

# Configure optimization
config = OptimizationConfig(10000.0, 200000.0)  # Flow bounds: 10,000 - 200,000 kg/hr
config = config.tolerance(100.0)                 # Convergence tolerance
config = config.maxIterations(30)                # Max iterations
config = config.searchMode(SearchMode.GOLDEN_SECTION_SCORE)
config = config.defaultUtilizationLimit(0.95)    # 95% max equipment utilization

# Create optimizer and run
optimizer = ProductionOptimizer()
result = optimizer.optimize(process, feed, config, None, None)

# Display results
print("\n=== Single-Variable Optimization Results ===")
print(f"Optimal flow rate: {result.getOptimalRate():.0f} kg/hr")
print(f"Feasible: {result.isFeasible()}")
print(f"Iterations: {result.getIterations()}")
if result.getBottleneck():
    print(f"Bottleneck: {result.getBottleneck().getName()}")

5. Multi-Variable Optimization

For complex processes, you often need to optimize multiple variables simultaneously. Use ManipulatedVariable to define each decision variable.

# Create a more complex two-stage compression process
def create_two_stage_process():
    """Create a two-stage compression system with intercooling."""
    gas = SystemSrkEos(288.15, 30.0)
    gas.addComponent("methane", 0.85)
    gas.addComponent("ethane", 0.10)
    gas.addComponent("propane", 0.05)
    gas.setMixingRule("classic")

    process = ProcessSystem()

    # Feed
    feed = Stream("feed", gas)
    feed.setFlowRate(50000.0, "kg/hr")
    feed.setPressure(30.0, "bara")
    feed.setTemperature(288.15, "K")
    process.add(feed)

    # Stage 1 compressor
    stage1 = Compressor("stage1", feed)
    stage1.setOutletPressure(70.0)
    stage1.setPolytropicEfficiency(0.78)
    process.add(stage1)

    # Intercooler
    intercooler = Cooler("intercooler", stage1.getOutletStream())
    intercooler.setOutTemperature(308.15)  # 35°C
    process.add(intercooler)

    # Stage 2 compressor
    stage2 = Compressor("stage2", intercooler.getOutletStream())
    stage2.setOutletPressure(150.0)
    stage2.setPolytropicEfficiency(0.76)
    process.add(stage2)

    # Aftercooler
    aftercooler = Cooler("aftercooler", stage2.getOutletStream())
    aftercooler.setOutTemperature(313.15)  # 40°C
    process.add(aftercooler)

    process.run()
    return process

process2 = create_two_stage_process()
print("Two-stage process created")
print(f"Stage 1 power: {process2.getUnit('stage1').getPower('kW'):.1f} kW")
print(f"Stage 2 power: {process2.getUnit('stage2').getPower('kW'):.1f} kW")

# Define setter classes for ManipulatedVariable (JPype interface implementation)

@JImplements("neqsim.process.util.optimizer.ProductionOptimizer$Setter")
class FlowRateSetter:
    """Sets the feed flow rate."""
    @JOverride
    def apply(self, proc, value):
        proc.getUnit("feed").setFlowRate(float(value), "kg/hr")

@JImplements("neqsim.process.util.optimizer.ProductionOptimizer$Setter")
class Stage1PressureSetter:
    """Sets stage 1 outlet pressure."""
    @JOverride
    def apply(self, proc, value):
        proc.getUnit("stage1").setOutletPressure(float(value))

@JImplements("neqsim.process.util.optimizer.ProductionOptimizer$Setter")
class IntercoolerTempSetter:
    """Sets intercooler outlet temperature."""
    @JOverride
    def apply(self, proc, value):
        proc.getUnit("intercooler").setOutTemperature(float(value) + 273.15)  # °C to K

print("Setter classes defined for multi-variable optimization")

# Create ManipulatedVariable list
from java.util import ArrayList

variables = ArrayList()

# Variable 1: Flow rate (10,000 - 150,000 kg/hr)
var_flow = ManipulatedVariable("flowRate", 10000.0, 150000.0, "kg/hr", FlowRateSetter())
variables.add(var_flow)

# Variable 2: Stage 1 outlet pressure (50 - 90 bara)
var_p1 = ManipulatedVariable("stage1Pressure", 50.0, 90.0, "bara", Stage1PressureSetter())
variables.add(var_p1)

# Variable 3: Intercooler temperature (25 - 45 °C)
var_temp = ManipulatedVariable("intercoolerTemp", 25.0, 45.0, "C", IntercoolerTempSetter())
variables.add(var_temp)

print(f"Defined {variables.size()} manipulated variables:")
for i in range(variables.size()):
    v = variables.get(i)
    print(f"  {i+1}. {v.getName()}: [{v.getLowerBound()}, {v.getUpperBound()}] {v.getUnit()}")

# Multi-variable optimization with Nelder-Mead

# Configure for multi-variable
config_multi = OptimizationConfig(10000.0, 150000.0)
config_multi = config_multi.searchMode(SearchMode.NELDER_MEAD_SCORE)  # Best for multi-variable
config_multi = config_multi.maxIterations(100)
config_multi = config_multi.tolerance(50.0)
config_multi = config_multi.defaultUtilizationLimit(0.95)

# Run optimization
optimizer2 = ProductionOptimizer()
result_multi = optimizer2.optimize(process2, variables, config_multi, None, None)

print("\n=== Multi-Variable Optimization Results ===")
print(f"Optimal flow rate: {result_multi.getOptimalRate():.0f} kg/hr")
print(f"Feasible: {result_multi.isFeasible()}")
print(f"Iterations: {result_multi.getIterations()}")

# Get optimal variable values
opt_vars = result_multi.getOptimalVariables()
if opt_vars:
    print("\nOptimal variable values:")
    for name in opt_vars.keySet():
        print(f"  {name}: {opt_vars.get(name):.2f}")

6. Objectives and Constraints

6.1 Optimization Objectives

Objectives define what to optimize. You can:

MAXIMIZE: throughput, production, revenue
MINIMIZE: power, cost, emissions

6.2 Optimization Constraints

Constraints define limits that must be respected:

HARD constraints: Must be satisfied (infeasible if violated)
SOFT constraints: Penalized if violated (allows trade-offs)

# Define objective evaluators

@JImplements("java.util.function.ToDoubleFunction")
class ThroughputEvaluator:
    """Evaluates throughput (outlet flow rate)."""
    @JOverride
    def applyAsDouble(self, proc):
        return proc.getUnit("aftercooler").getOutletStream().getFlowRate("kg/hr")

@JImplements("java.util.function.ToDoubleFunction")
class TotalPowerEvaluator:
    """Evaluates total compressor power."""
    @JOverride
    def applyAsDouble(self, proc):
        power1 = proc.getUnit("stage1").getPower("kW")
        power2 = proc.getUnit("stage2").getPower("kW")
        return power1 + power2

@JImplements("java.util.function.ToDoubleFunction")
class Stage1PowerEvaluator:
    """Evaluates stage 1 power for constraint."""
    @JOverride
    def applyAsDouble(self, proc):
        return proc.getUnit("stage1").getPower("kW")

@JImplements("java.util.function.ToDoubleFunction")
class OutletTempEvaluator:
    """Evaluates outlet temperature for constraint."""
    @JOverride
    def applyAsDouble(self, proc):
        return proc.getUnit("aftercooler").getOutletStream().getTemperature("C")

print("Objective and constraint evaluators defined")

# Create objectives list
objectives = ArrayList()

# Objective 1: Maximize throughput (weight = 1.0)
obj_throughput = OptimizationObjective(
    "throughput",           # Name
    ThroughputEvaluator(),  # Evaluator function
    1.0,                    # Weight
    ObjectiveType.MAXIMIZE  # Direction
)
objectives.add(obj_throughput)

print(f"Defined {objectives.size()} objective(s):")
for i in range(objectives.size()):
    obj = objectives.get(i)
    print(f"  {i+1}. {obj.getName()} ({obj.getType()})")

# Create constraints list
constraints = ArrayList()

# Constraint 1: Stage 1 power < 3000 kW (HARD)
con_power = OptimizationConstraint(
    "maxStage1Power",           # Name
    Stage1PowerEvaluator(),     # Evaluator
    3000.0,                     # Limit
    ConstraintDirection.LESS_THAN,
    ConstraintSeverity.HARD,
    0.0,                        # Penalty weight (for SOFT)
    "Stage 1 compressor power limit"
)
constraints.add(con_power)

# Constraint 2: Outlet temperature < 45°C (SOFT with penalty)
con_temp = OptimizationConstraint(
    "maxOutletTemp",
    OutletTempEvaluator(),
    45.0,
    ConstraintDirection.LESS_THAN,
    ConstraintSeverity.SOFT,
    100.0,                      # Penalty weight
    "Outlet temperature specification"
)
constraints.add(con_temp)

print(f"Defined {constraints.size()} constraint(s):")
for i in range(constraints.size()):
    con = constraints.get(i)
    print(f"  {i+1}. {con.getName()}: {con.getDirection()} {con.getLimit()} ({con.getSeverity()})")

# Optimization with objectives and constraints

config_constrained = OptimizationConfig(10000.0, 150000.0)
config_constrained = config_constrained.searchMode(SearchMode.NELDER_MEAD_SCORE)
config_constrained = config_constrained.maxIterations(100)
config_constrained = config_constrained.tolerance(50.0)

# Recreate process (reset state)
process3 = create_two_stage_process()

# Run with objectives and constraints
result_constrained = optimizer2.optimize(process3, variables, config_constrained, objectives, constraints)

print("\n=== Constrained Optimization Results ===")
print(f"Optimal flow rate: {result_constrained.getOptimalRate():.0f} kg/hr")
print(f"Feasible: {result_constrained.isFeasible()}")

# Check constraint violations
violations = result_constrained.getConstraintViolations()
if violations and violations.size() > 0:
    print("\nConstraint violations:")
    for i in range(violations.size()):
        print(f"  - {violations.get(i)}")
else:
    print("\nAll constraints satisfied!")

7. Pareto Multi-Objective Optimization

When you have conflicting objectives (e.g., maximize throughput vs minimize power), use Pareto optimization to find the trade-off frontier.

# Define competing objectives for Pareto optimization
pareto_objectives = ArrayList()

# Objective 1: Maximize throughput
obj1 = OptimizationObjective(
    "throughput",
    ThroughputEvaluator(),
    1.0,
    ObjectiveType.MAXIMIZE
)
pareto_objectives.add(obj1)

# Objective 2: Minimize total power
obj2 = OptimizationObjective(
    "totalPower",
    TotalPowerEvaluator(),
    1.0,
    ObjectiveType.MINIMIZE
)
pareto_objectives.add(obj2)

print("Pareto objectives defined:")
print("  1. Maximize throughput")
print("  2. Minimize total power")
print("\nThese objectives conflict: higher throughput requires more power.")

# Configure Pareto optimization
config_pareto = OptimizationConfig(10000.0, 150000.0)
config_pareto = config_pareto.searchMode(SearchMode.GOLDEN_SECTION_SCORE)
config_pareto = config_pareto.paretoGridSize(15)  # Number of weight combinations
config_pareto = config_pareto.maxIterations(30)
config_pareto = config_pareto.tolerance(100.0)

# Recreate simple process for single-variable Pareto
process_pareto, feed_pareto = create_compression_process()

# Run Pareto optimization
pareto_result = optimizer.optimizePareto(process_pareto, feed_pareto, config_pareto, pareto_objectives)

print("\n=== Pareto Optimization Results ===")
points = pareto_result.getPoints()
print(f"Found {points.size()} Pareto-optimal solutions")

# Extract and display Pareto front
import matplotlib.pyplot as plt

throughputs = []
powers = []

print("\nPareto Front Points:")
print("-" * 50)
print(f"{'Flow (kg/hr)':<15} {'Throughput (kg/hr)':<20} {'Power (kW)'}")
print("-" * 50)

for i in range(points.size()):
    point = points.get(i)
    obj_values = point.getObjectives()
    flow = point.getFlowRate()
    throughput = obj_values.get("throughput")
    power = obj_values.get("totalPower")

    throughputs.append(throughput)
    powers.append(power)
    print(f"{flow:<15.0f} {throughput:<20.0f} {power:.1f}")

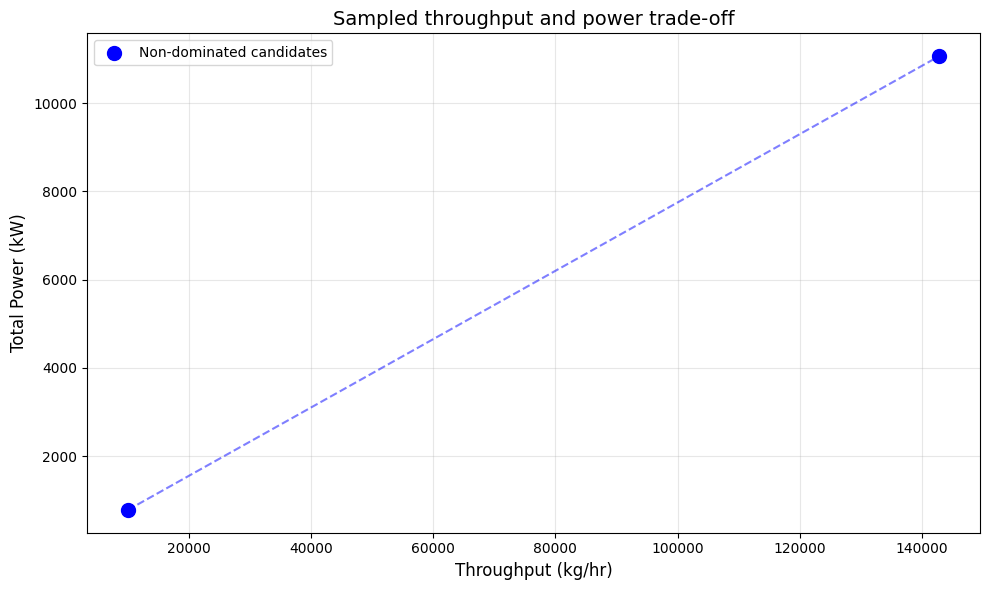

# Plot Pareto front
plt.figure(figsize=(10, 6))
plt.scatter(throughputs, powers, c='blue', s=100, label='Pareto optimal')
plt.plot(throughputs, powers, 'b--', alpha=0.5)
plt.xlabel('Throughput (kg/hr)', fontsize=12)
plt.ylabel('Total Power (kW)', fontsize=12)
plt.title('Pareto Front: Throughput vs Power', fontsize=14)
plt.grid(True, alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()

8. Configuration Options

The OptimizationConfig class provides many configuration options:

# All OptimizationConfig options
config_options = {
    "Basic Options": {
        "tolerance(double)": "Convergence tolerance (default: 1e-3)",
        "maxIterations(int)": "Maximum iterations (default: 30)",
        "searchMode(SearchMode)": "Search algorithm to use",
        "rateUnit(String)": "Unit for flow rate (default: 'kg/hr')",
    },
    "Equipment Constraints": {
        "defaultUtilizationLimit(double)": "Default max utilization for all equipment (0-1)",
        "utilizationLimitForType(Class, double)": "Utilization limit for specific equipment type",
        "utilizationMarginFraction(double)": "Safety margin on equipment limits",
    },
    "Uncertainty & Robustness": {
        "capacityUncertaintyFraction(double)": "Uncertainty in capacity estimates",
        "capacityPercentile(double)": "Percentile for capacity (0.5 = P50)",
    },
    "Pareto Options": {
        "paretoGridSize(int)": "Number of weight combinations for Pareto (default: 10)",
    },
    "Parallel Execution": {
        "parallelEvaluations(boolean)": "Enable parallel scenario evaluation",
        "parallelThreads(int)": "Number of threads for parallel execution",
    },
    "PSO Parameters": {
        "swarmSize(int)": "Number of particles (default: 8)",
        "inertiaWeight(double)": "Inertia weight (default: 0.6)",
        "cognitiveWeight(double)": "Cognitive (personal best) weight (default: 1.2)",
        "socialWeight(double)": "Social (global best) weight (default: 1.2)",
    },
    "Caching & Performance": {
        "enableCaching(boolean)": "Cache constraint evaluations (default: true)",
        "maxCacheSize(int)": "Maximum LRU cache entries (default: 1000)",
    },
    "Early Termination": {
        "stagnationIterations(int)": "Stop after N iterations with no improvement (default: 5)",
    },
    "Warm Start": {
        "initialGuess(double[])": "Starting point for optimization (near known good solution)",
    },
    "Special Equipment": {
        "columnFsFactorLimit(double)": "Fs factor limit for distillation columns",
    }
}

print("OptimizationConfig Options:")
print("=" * 70)
for category, options in config_options.items():
    print(f"\n{category}:")
    print("-" * 70)
    for method, description in options.items():
        print(f"  .{method}")
        print(f"      {description}")

# Example: Comprehensive configuration

comprehensive_config = OptimizationConfig(10000.0, 200000.0) \
    .rateUnit("kg/hr") \
    .tolerance(50.0) \
    .maxIterations(50) \
    .searchMode(SearchMode.NELDER_MEAD_SCORE) \
    .defaultUtilizationLimit(0.95) \
    .utilizationMarginFraction(0.05) \
    .capacityUncertaintyFraction(0.10) \
    .capacityPercentile(0.5) \
    .enableCaching(True) \
    .maxCacheSize(500) \
    .stagnationIterations(10) \
    .paretoGridSize(20)

print("Comprehensive configuration created")
print(f"  Bounds: [{comprehensive_config.getLowerBound()}, {comprehensive_config.getUpperBound()}]")
print(f"  Search mode: {comprehensive_config.getSearchMode()}")
print(f"  Max iterations: {comprehensive_config.getMaxIterations()}")

8.1 Configuration Validation (New)

The optimizer now validates configuration before running:

# Configuration validation
config = OptimizationConfig(100.0, 50.0)  # Invalid: lower > upper

try:
    config.validate()  # Throws IllegalArgumentException
except Exception as e:
    print(f"Configuration error: {e}")

# Valid configuration
valid_config = OptimizationConfig(100.0, 10000.0) \
    .tolerance(10.0) \
    .maxIterations(50)
valid_config.validate()  # No exception
print("Configuration is valid")

8.2 Warm Start for Faster Convergence (New)

When you have a good initial guess, use warm start to speed up convergence:

# Warm start example - useful when re-optimizing after small changes
from jpype import JArray, JDouble

# Previous optimal solution
previous_optimal = JArray(JDouble)([7500.0])  # Single variable

config_warmstart = OptimizationConfig(1000.0, 20000.0) \
    .searchMode(SearchMode.PARTICLE_SWARM_SCORE) \
    .initialGuess(previous_optimal) \
    .maxIterations(20)

# First particle starts near previous solution, converges faster
result = optimizer.optimize(process, feed, config_warmstart, None, None)
print(f"Warm start result: {result.getOptimalRate():.0f} kg/hr")

8.3 Stagnation Detection (New)

Automatically terminate when optimization stops improving:

# Stagnation detection - saves computation time
config_stagnation = OptimizationConfig(1000.0, 20000.0) \
    .searchMode(SearchMode.PARTICLE_SWARM_SCORE) \
    .maxIterations(100) \
    .stagnationIterations(5)  # Stop after 5 iterations with no improvement

# May terminate early if converged
result = optimizer.optimize(process, feed, config_stagnation, None, None)
print(f"Stopped at iteration: {result.getIterations()}")

8.4 LRU Cache Size Control (New)

Control memory usage with bounded cache:

# Cache size control for large-scale optimization
config_cache = OptimizationConfig(1000.0, 20000.0) \
    .enableCaching(True) \
    .maxCacheSize(500)  # Limit to 500 entries (default: 1000)

# Useful when memory is constrained or running many optimizations
result = optimizer.optimize(process, feed, config_cache, None, None)

8.5 Infeasibility Diagnostics (New)

Get detailed diagnosis when optimization fails:

# Infeasibility diagnostics
result = optimizer.optimize(process, feed, config, None, None)

if not result.isFeasible():
    diagnosis = result.getInfeasibilityDiagnosis()
    print("Infeasibility diagnosis:")
    print(diagnosis)
    # Example output:
    # Infeasibility diagnosis for rate 15000.0 kg/hr:
    #   - Compressor 'K-100': 115.2% utilization (limit: 95.0%), exceeded by 20.2%
    #   - Separator 'V-100': 102.3% utilization (limit: 100.0%), exceeded by 2.3%

9. Advanced Usage

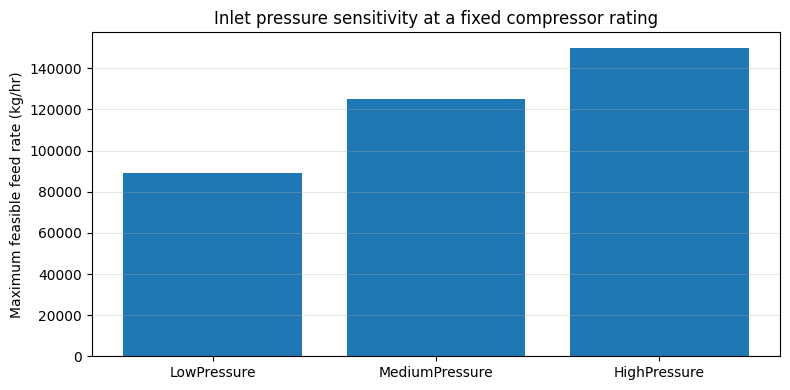

9.1 Scenario Evaluation

Evaluate multiple scenarios with different conditions:

# Create multiple scenarios with different inlet pressures
ScenarioRequest = ProductionOptimizer.ScenarioRequest

scenarios = ArrayList()

# Base config
base_config = OptimizationConfig(10000.0, 150000.0) \
    .searchMode(SearchMode.GOLDEN_SECTION_SCORE) \
    .maxIterations(20)

# Scenario 1: Low pressure
process_low, feed_low = create_compression_process()
feed_low.setPressure(40.0, "bara")
scenarios.add(ScenarioRequest("LowPressure", process_low, feed_low, base_config, None, None))

# Scenario 2: Medium pressure
process_med, feed_med = create_compression_process()
feed_med.setPressure(50.0, "bara")
scenarios.add(ScenarioRequest("MediumPressure", process_med, feed_med, base_config, None, None))

# Scenario 3: High pressure
process_high, feed_high = create_compression_process()
feed_high.setPressure(60.0, "bara")
scenarios.add(ScenarioRequest("HighPressure", process_high, feed_high, base_config, None, None))

print(f"Created {scenarios.size()} scenarios for evaluation")

# Run all scenarios
results = optimizer.optimizeScenarios(scenarios)

print("\n=== Scenario Comparison ===")
print("-" * 60)
print(f"{'Scenario':<20} {'Optimal Flow (kg/hr)':<25} {'Feasible'}")
print("-" * 60)

for i in range(results.size()):
    result = results.get(i)
    scenario = scenarios.get(i)
    print(f"{scenario.getName():<20} {result.getOptimalRate():<25.0f} {result.isFeasible()}")

9.2 Parallel Scenario Evaluation

For large numbers of scenarios, enable parallel execution:

# Configure for parallel execution
parallel_config = OptimizationConfig(10000.0, 150000.0) \
    .searchMode(SearchMode.GOLDEN_SECTION_SCORE) \
    .parallelEvaluations(True) \
    .parallelThreads(4)  # Use 4 threads

print("Parallel configuration:")
print(f"  Parallel enabled: {parallel_config.isParallelEvaluations()}")
print(f"  Threads: {parallel_config.getParallelThreads()}")
print("\nNote: Parallel execution is most beneficial for many scenarios (10+)")

9.3 JSON Export

Export results to JSON for further analysis:

# Get JSON representation of results
import json

# Run a simple optimization
process_json, feed_json = create_compression_process()
simple_config = OptimizationConfig(10000.0, 150000.0).searchMode(SearchMode.GOLDEN_SECTION_SCORE)
simple_result = optimizer.optimize(process_json, feed_json, simple_config, None, None)

# Convert to JSON
json_str = simple_result.toJson()
result_dict = json.loads(str(json_str))

print("Optimization Result (JSON):")
print(json.dumps(result_dict, indent=2))

10. Best Practices

Algorithm Selection

Variables	Problem Type	Recommended Algorithm
1	Monotonic feasibility	`BINARY_FEASIBILITY`
1	Non-monotonic	`GOLDEN_SECTION_SCORE`
2-10	Smooth landscape	`NELDER_MEAD_SCORE`
Any	Many local optima	`PARTICLE_SWARM_SCORE`
5-20+	Smooth multi-variable	`GRADIENT_DESCENT_SCORE`

Configuration Tips

Start with coarse tolerance, then refine
Use defaultUtilizationLimit(0.95) to leave 5% safety margin
Enable caching for repeated evaluations
For Pareto, use paretoGridSize(15-25) for good resolution
Use stagnationIterations(5-10) for early termination in PSO/Gradient Descent
Use initialGuess() when re-optimizing after small process changes
Set maxCacheSize() appropriately when memory is constrained

Constraint Design

Use HARD constraints for safety-critical limits
Use SOFT constraints for operational preferences
Set appropriate penalty weights for soft constraints

Debugging

Check result.isFeasible() first
Examine result.getConstraintViolations() for failures
Use result.getIterations() to check convergence
Use result.getInfeasibilityDiagnosis() for detailed violation reports
Enable verbose logging in Java if needed

# Summary: Complete optimization workflow

def run_production_optimization(process, feed, objectives=None, constraints=None,
                                 search_mode=SearchMode.GOLDEN_SECTION_SCORE,
                                 min_flow=10000, max_flow=200000):
    """
    Complete production optimization workflow.

    Parameters:
    - process: ProcessSystem to optimize
    - feed: Feed stream (or list of ManipulatedVariable for multi-var)
    - objectives: List of OptimizationObjective (optional)
    - constraints: List of OptimizationConstraint (optional)
    - search_mode: SearchMode enum
    - min_flow, max_flow: Flow rate bounds

    Returns:
    - OptimizationResult
    """
    # Configure
    config = OptimizationConfig(float(min_flow), float(max_flow)) \
        .searchMode(search_mode) \
        .tolerance(100.0) \
        .maxIterations(50) \
        .defaultUtilizationLimit(0.95) \
        .enableCaching(True)

    # Optimize
    optimizer = ProductionOptimizer()
    result = optimizer.optimize(process, feed, config, objectives, constraints)

    # Report
    print(f"Optimal flow: {result.getOptimalRate():.0f} kg/hr")
    print(f"Feasible: {result.isFeasible()}")
    print(f"Iterations: {result.getIterations()}")

    if result.getBottleneck():
        print(f"Bottleneck: {result.getBottleneck().getName()}")

    return result

# Example usage
print("=== Final Example ===")
final_process, final_feed = create_compression_process()
final_result = run_production_optimization(final_process, final_feed)

Summary

The ProductionOptimizer provides:

✅ Five search algorithms for different problem types (Binary, Golden-Section, Nelder-Mead, PSO, Gradient Descent)
✅ Single and multi-variable optimization
✅ Custom objectives (maximize/minimize anything)
✅ Hard and soft constraints with penalties
✅ Pareto multi-objective optimization
✅ Parallel scenario evaluation
✅ Equipment utilization tracking
✅ JSON export for analysis
✅ Configuration validation for early error detection
✅ Warm start for faster convergence
✅ Stagnation detection for early termination
✅ Bounded LRU cache for memory control
✅ Infeasibility diagnostics for debugging

For more details, see:

ProductionOptimizer Tutorial

Jupyter notebook tutorial for NeqSim

ProductionOptimizer Tutorial

ProductionOptimizer - Comprehensive Tutorial

Table of Contents

1. Introduction

When to Use ProductionOptimizer vs ProcessOptimizationEngine

2. Setup and Imports

3. Search Algorithms

3.1 BINARY_FEASIBILITY

3.2 GOLDEN_SECTION_SCORE

3.3 NELDER_MEAD_SCORE

3.4 PARTICLE_SWARM_SCORE

4. Single-Variable Optimization

5. Multi-Variable Optimization

6. Objectives and Constraints

6.1 Optimization Objectives

6.2 Optimization Constraints

7. Pareto Multi-Objective Optimization

8. Configuration Options

8.1 Configuration Validation (New)

8.2 Warm Start for Faster Convergence (New)

8.3 Stagnation Detection (New)

8.4 LRU Cache Size Control (New)

8.5 Infeasibility Diagnostics (New)

9. Advanced Usage

9.1 Scenario Evaluation

9.2 Parallel Scenario Evaluation

9.3 JSON Export

10. Best Practices

Algorithm Selection

Configuration Tips

Constraint Design

Debugging

Summary
