Case File Template and Usage
Here are several examples and templates on start using ICV Control. The use
of ICV Control usually requires heavy load of trial and error to test out several
options.

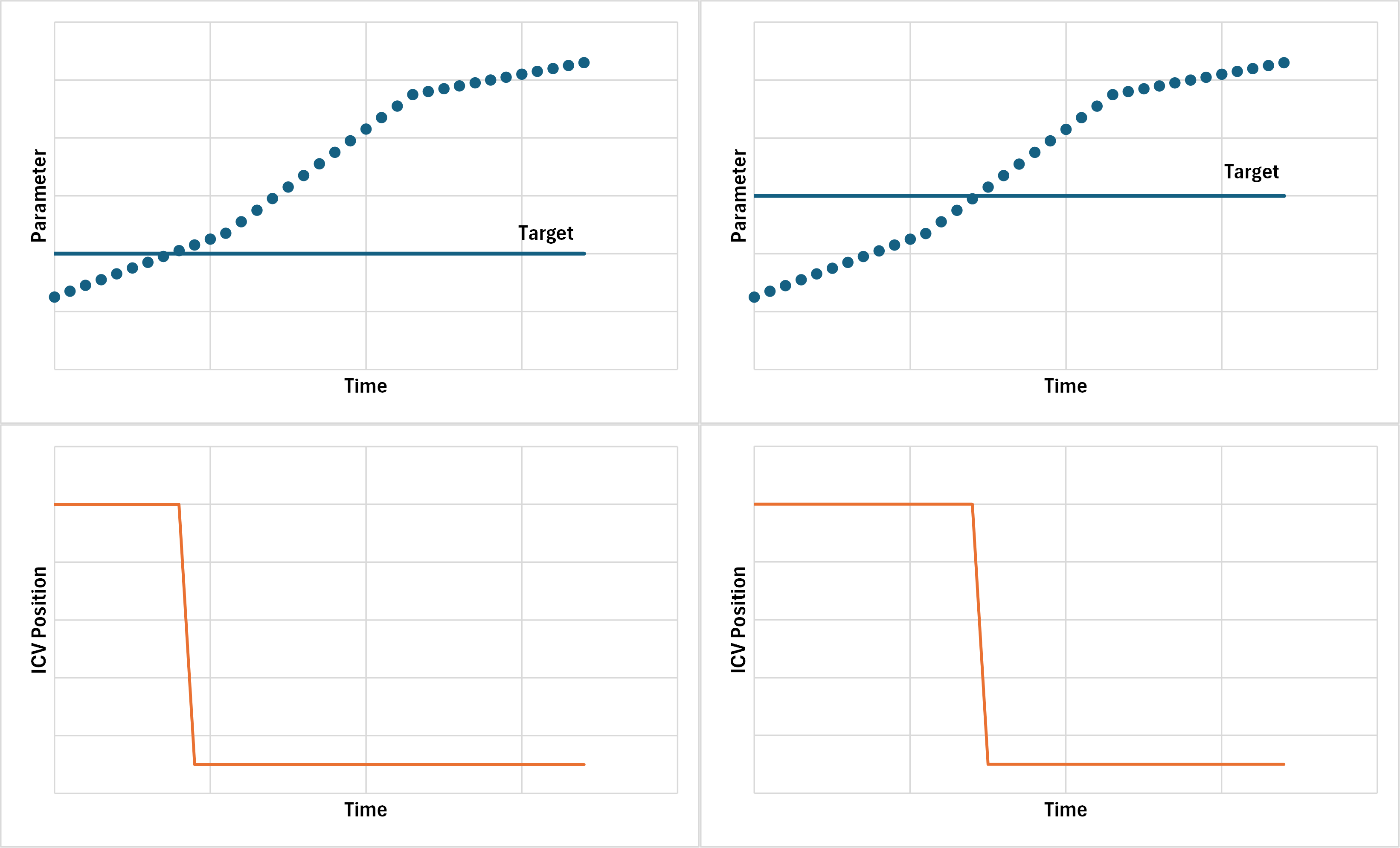

ICV Control is set to be a continuously evaluating the parameter until it fulfills
the target. Here are two examples of a "static" target. The parameter surpasses
the target at certain period, triggering the ICV Control to search on an ICV
position that fulfills the target, eventually closing it. While setting the
target slightly higher, will result in closing the ICV in later period of time.
This requires changes of target for every time period, which is not robust.
An example is made using a dynamic target, where we set the parameter to be
normalized with certain constant. Creating a continuous function that evolves
over time, to be set as a target. The result shows that ICV Control can follow
the evolution of the parameter, which requires more choking towards the end.
This dynamic target is what we suggested for the users to use, therefore in previous
example of Keywords, there are many parameters that is divided into different
parameters to trigger the normalization.
Zonal control on single well and branch control for multi-lateral for water-cut
This is an example of mixes of zonal control and branch control in one ICV Control case. The zonal control is installed for single well completion, while the multi-lateral will have the branch control.
COMPLETION
--WELL Branch Start End Screen Well/ Roughness Annulus Nvalve Valve Device
-- Number mD mD Tubing Casing Roughness Content /Joint Type Number
-- Diameter Diameter
A1 1 0 9999 0.1504 0.216 0.00015 GP 1 ICV 1
A2 1 0 9999 0.1504 0.216 0.00015 GP 1 ICV 1
A3 1 0 9999 0.1504 0.216 0.00015 GP 1 ICV 1
A4 1 0 9999 0.1504 0.216 0.00015 GP 1 ICV 1
A5 1 0 9999 0.1504 0.216 0.00015 GP 1 ICV 1
A6 1 0 9999 0.1504 0.216 0.00015 GP 1 ICV 1
OP5 1 0 9999 0.1504 0.216 0.00015 GP 1 ICV 1
OP5 2 0 9999 0.1504 0.216 0.00015 GP 1 ICV 1
/
ICVCONTROL
-- WELL ICV SEGM ICVTABL STEPS ICVDATE FREQ MIN MAX OPENING
A1 A1 1 A 100 2.JAN.2020 30 1 10 T10
A2 A2 1 A 100 2.JAN.2020 30 1 10 T10
A3 A3 1 A 100 2.JAN.2020 30 1 10 T10
A4 A4 1 A 100 2.JAN.2020 30 1 10 T10
OP5 O1 1 A 100 2.JAN.2020 30 1 10 T10
OP5 O2 1 A 100 2.JAN.2020 30 1 10 T10
/
CONTROL_CRITERIA
FUNCTION: [UDQ]
ICV: [O1][O2]
DEFINE FUWCT_x0 SWCT WELL(x0) SEG(x0) / WWCT WELL(x0) / --watercut control OP5
/
CONTROL_CRITERIA
FUNCTION: [UDQ]
ICV: [A1][A2][A3][A4]
DEFINE FUWCT_x0 WWCT WELL(x0) / FWCT / --watercut control other producers
/
CONTROL_CRITERIA
FUNCTION: [UDQ]
ASSIGN FUTOL 0.05 /
ASSIGN FUWCTBRN 1 /
ASSIGN FUWCTWEL 1.5 /
DEFINE FUWELMIN FUWCTWEL - FUTOL /
DEFINE FUWELMAX FUWCTWEL + FUTOL /
DEFINE FUBRNMIN FUWCTBRN - FUTOL /
DEFINE FUBRNMAX FUWCTBRN + FUTOL /
/
-------------------WATERCUT BRANCH CONTROL------------------------
CONTROL_CRITERIA
FUNCTION: [OPEN, OPEN_WAIT, OPEN_READY]
CRITERIUM: 1
ICV: [O1][O2]
FUWCT_x0 < FUWCTBRN AND /
FUPOS_x0 < 10 /
/
CONTROL_CRITERIA
FUNCTION: [OPEN_STOP, OPEN_WAIT_STOP]
CRITERIUM: 1
ICV: [O1][O2]
FUWCT_x0 > FUBRNMIN
/
CONTROL_CRITERIA
FUNCTION: [CHOKE, CHOKE_WAIT, CHOKE_READY]
CRITERIUM: 1
ICV: [O1][O2]
FUWCT_x0 > FUWCTBRN AND /
FUPOS_x0 > 1 /
/
CONTROL_CRITERIA
FUNCTION: [CHOKE_STOP, CHOKE_WAIT_STOP]
CRITERIUM: 1
ICV: [O1][O2]
FUWCT_x0 < FUBRNMAX
/
-------------------WATERCUT WELL CONTROL------------------------
CONTROL_CRITERIA
FUNCTION: [OPEN, OPEN_WAIT, OPEN_READY]
CRITERIUM: 1
ICV: [A1][A2][A3][A4]
FUWCT_x0 < FUWCTWEL AND /
FUPOS_x0 < 10 /
/
CONTROL_CRITERIA
FUNCTION: [OPEN_STOP, OPEN_WAIT_STOP]
CRITERIUM: 1
ICV: [A1][A2][A3][A4]
FUWCT_x0 > FUWELMIN
/
CONTROL_CRITERIA
FUNCTION: [CHOKE, CHOKE_WAIT, CHOKE_READY]
CRITERIUM: 1
ICV: [A1][A2][A3][A4]
FUWCT_x0 > FUWCTWEL AND /
FUPOS_x0 > 1 /
/
CONTROL_CRITERIA
FUNCTION: [CHOKE_STOP, CHOKE_WAIT_STOP]
CRITERIUM: 1
ICV: [A1][A2][A3][A4]
FUWCT_x0 < FUWELMAX
/
----------------------------------------------------------------
ICVTABLE
A /
-- POS CD AREA
1 1 1.02374E-05
2 1 2.84372E-05
3 1 4.73954E-05
4 1 7.89923E-05
5 1 0.0001316
6 1 0.0003657
7 1 0.0006095
8 1 0.001693
9 1 0.002821
10 1 0.004703
/
Branch control on single well (well control) for GOR
This is an example of branch control that is manipulated for a well control system.
This example skips the COMPLETION keyword for simplicity.
ICVCONTROL
-- WELL ICV SEGM ICVTABL STEPS ICVDATE FREQ MIN MAX OPENING
YO A 2 A1 100 2.JAN.2020 30 1 10 T10
/
-- -------------------------------------
-- UDQDEFINE
-- -------------------------------------
CONTROL_CRITERIA
FUNCTION: [UDQ]
ICV: []
ASSIGN FUGORMAX 1.05 /
ASSIGN FUGORMIN 0.95 /
/
CONTROL_CRITERIA
FUNCTION: [UDQ]
ICV: [A]
DEFINE FUGOR_x0 ( WGOR WELL(x0) / FGOR ) /
DEFINE FUOR_x0 WOPR WELL(x0) /
/
-- -------------------------------------
-- Well control
-- -------------------------------------
CONTROL_CRITERIA
FUNCTION: [OPEN, OPEN_WAIT, OPEN_READY]
CRITERIUM: 1
ICV: [A]
FUGOR_x0 < FUGORMIN AND /
FUARE_x0 < FUOP_x0 /
/
CONTROL_CRITERIA
FUNCTION: [OPEN_STOP, OPEN_WAIT_STOP]
CRITERIUM: 1
ICV: [A]
FUGOR_x0 > FUGORMIN AND /
FUGOR_x0 < FUGORMAX /
/
CONTROL_CRITERIA
FUNCTION: [CHOKE, CHOKE_WAIT, CHOKE_READY]
CRITERIUM: 1
ICV: [A]
FUGOR_x0 > FUGORMAX AND /
FUARE_x0 > FUCH_x0 AND /
FUOR_x0 > 1000 /
/
CONTROL_CRITERIA
FUNCTION: [CHOKE_STOP, CHOKE_WAIT_STOP]
CRITERIUM: 1
ICV: [A]
FUGOR_x0 < FUGORMAX AND /
FUOR < 1000 AND /
FUGOR_x0 > FUGORMIN /
/
ICVTABLE
-- Valve name
A1 /
-- Pos Cd m2
1 0.614 0.0000E+00
2 0.614 0.0000E+00
3 0.818 6.2581E-05
4 0.830 1.6516E-04
5 0.830 2.7742E-04
6 0.830 4.5161E-04
7 0.830 1.0006E-03
8 0.830 2.7858E-03
9 0.830 6.8697E-03
10 0.830 9.2916E-03
/
Zonal control to equalize reservoir pressure
This example hard code the region pressure definition (RPR) into a fixed parameter toward certain ICV A.
ICVCONTROL
-- WELL ICV SEGM ICVTABL STEPS ICVDATE FREQ MIN MAX OPENING
WELL01 A 30 A 100 2.JAN.2020 30 1 10 T10/
---------------INJECTION CONTROL ---------------------
CONTROL_CRITERIA
FUNCTION: [OPEN, OPEN_WAIT, OPEN_READY]
CRITERIUM: 1
ICV: [A]
FURAT_x0 < 1 AND /
--FULFR_x0 > 100 AND /
FUPOS_x0 < 10 /
/
CONTROL_CRITERIA
FUNCTION: [OPEN_STOP, OPEN_WAIT_STOP]
CRITERIUM: 1
ICV: [A]
FURAT_x0 > FURATMIN
/
CONTROL_CRITERIA
FUNCTION: [CHOKE, CHOKE_WAIT, CHOKE_READY]
CRITERIUM: 1
ICV: [A]
FURAT_x0 > 1 AND /
--FULFR_x0 > 100 AND /
FUPOS_x0 > 1 /
/
CONTROL_CRITERIA
FUNCTION: [CHOKE_STOP, CHOKE_WAIT_STOP]
CRITERIUM: 1
ICV: [A]
FURAT_x0 < FURATMAX
/
CONTROL_CRITERIA
FUNCTION: [UDQ]
DEFINE FURPR_1 RPR___A 1 /
DEFINE FURPR_2 RPR___B 2 /
DEFINE FURAT_A FURPR_1 / FURPR_2 /
ASSIGN FUDEV 0.05 /
ASSIGN FURATTAR 1 /
DEFINE FURATMIN FURATTAR - FUDEV /
DEFINE FURATMAX FURATTAR + FUDEV /
/
----------------------------------------------------------------
ICVTABLE
A /
-- POS CD AREA
1 1 1.02374E-05
2 1 2.84372E-05
3 1 4.73954E-05
4 1 7.89923E-05
5 1 0.0001316
6 1 0.0003657
7 1 0.0006095
8 1 0.001693
9 1 0.002821
10 1 0.004703
/
Zonal control on multi-ICV zones
This is an example of multi-zone zonal control with 5 or more ICVs, control is targetting water-cut.
ICVCONTROL
-- WELL ICV SEGM ICVTABL STEPS DATE FREQ MIN MAX INIT_OPEN
Z01 Z1 16 A 30 1.JAN.2030 30 1 10 T10
Z01 Z2 17 A 30 1.JAN.2030 30 1 10 T10
Z01 Z3 18 A 30 1.JAN.2030 30 1 10 T10
Z01 Z4 19 A 30 1.JAN.2030 30 1 10 T10
Z01 Z5 20 A 30 1.JAN.2030 30 1 10 T10
Z01 Z6 21 A 30 1.JAN.2030 30 1 10 T10
Z01 Z7 22 A 30 1.JAN.2030 30 1 10 T10
/
CONTROL_CRITERIA
FUNCTION: [UDQ]
ICV: [Z1][Z2][Z3][Z4][Z5][Z6][Z7]
DEFINE FUWCT_x0 SWCT WELL(x0) SEG(x0) / WWCT WELL(x0) / --watercut control
/
CONTROL_CRITERIA
FUNCTION: [UDQ]
ASSIGN FUTOL 0.05 /
ASSIGN FUWCTLIM 1.1 /
DEFINE FUWCTMIN FUWCTLIM - FUTOL /
DEFINE FUWCTMAX FUWCTLIM + FUTOL /
/
-------------------WATERCUT ZONE CONTROL------------------------
CONTROL_CRITERIA
FUNCTION: [OPEN, OPEN_WAIT, OPEN_READY]
CRITERIUM: 1
ICV: [Z1][Z2][Z3][Z4][Z5][Z6][Z7]
FUWCT_x0 < FUWCTLIM AND /
FUPOS_x0 < 10 /
/
CONTROL_CRITERIA
FUNCTION: [OPEN_STOP, OPEN_WAIT_STOP]
CRITERIUM: 1
ICV: [Z1][Z2][Z3][Z4][Z5][Z6][Z7]
FUWCT_x0 > FUWCTMIN
/
CONTROL_CRITERIA
FUNCTION: [CHOKE, CHOKE_WAIT, CHOKE_READY]
CRITERIUM: 1
ICV: [Z1][Z2][Z3][Z4][Z5][Z6][Z7]
FUWCT_x0 > FUWCTLIM AND /
FUPOS_x0 > 1 /
/
CONTROL_CRITERIA
FUNCTION: [CHOKE_STOP, CHOKE_WAIT_STOP]
CRITERIUM: 1
ICV: [Z1][Z2][Z3][Z4][Z5][Z6][Z7]
FUWCT_x0 < FUWCTMAX
/
----------------------------------------------------------------
ICVTABLE
A /
-- POS CD AREA
1 0.95 1.02374E-05
2 0.95 2.84372E-05
3 0.95 4.73954E-05
4 0.95 7.89923E-05
5 0.95 0.0001316
6 0.95 0.0003657
7 0.95 0.0006095
8 0.95 0.001693
9 0.95 0.002821
10 0.95 0.004703
/
Zonal control to prevent cross-flow
This is an example of mix of hard-coded parameters in ACTIONX and UDQ.
ICVCONTROL
-- WELL ICV SEGMENT AC-TABLE STEPS ICVDATE FREQ MIN MAX OPENING
A1 A 1 A 60 1.JAN.2028 30 0 1 T10
A1 B 2 A 60 1.JAN.2028 30 0 1 T10
/
CONTROL_CRITERIA
FUNCTION: [UDQ]
ICV: [A][B]
DEFINE FURAT_x0 SGFR WELL(x0) SEG(x0) / --rate control
DEFINE FUPRS_x0 SPR WELL(x0) SEG(x0) /
/
CONTROL_CRITERIA
FUNCTION: [OPEN, OPEN_WAIT, OPEN_READY]
CRITERIUM: 1
ICV: [B]
FURAT_B < 100000000 AND /
FUPOS_x0 < 10 /
/
CONTROL_CRITERIA
FUNCTION: [OPEN_STOP, OPEN_WAIT_STOP]
CRITERIUM: 1
ICV: [B]
FUPOS_x0 = 10 /
/
CONTROL_CRITERIA
FUNCTION: [CHOKE, CHOKE_WAIT, CHOKE_READY]
CRITERIUM: 1
ICV: [B]
FURAT_A < 0 AND /
FUPOS_x0 > 1 /
/
CONTROL_CRITERIA
FUNCTION: [CHOKE_STOP, CHOKE_WAIT_STOP]
CRITERIUM: 1
ICV: [B]
FUPRS_A > FUPRS_B /
/
ICVTABLE
A /
-- POS CD AREA
1 1 1.02374E-05
2 1 2.84372E-05
3 1 4.73954E-05
4 1 7.89923E-05
5 1 0.0001316
6 1 0.0003657
7 1 0.0006095
8 1 0.001693
9 1 0.002821
10 1 0.004703
/
