Virtual Measurement of Emissions from Produced Water

Overview

This tutorial describes how to use NeqSim to calculate greenhouse gas emissions (CO₂, methane, nmVOC) from produced water handling systems on offshore oil and gas facilities.

Reference: The methodology is based on “Virtual Measurement of Emissions from Produced Water Using an Online Process Simulator” presented at the Global Flow Measurement Workshop 2023.

For Engineers and Operators: This guide is written to help you implement emissions calculations even if you’re not familiar with thermodynamics. Each section includes copy-paste code examples and explains what each parameter means.

⚡ Get Started in 2 Minutes (Python)

from neqsim.thermo import fluid
from neqsim import jNeqSim

# 1. Create produced water at separator conditions
water = fluid("cpa")                      # Use CPA equation of state
water.addComponent("water", 1.0)          # Produced water base
water.addComponent("CO2", 0.002)          # 0.2 mol% dissolved CO2
water.addComponent("methane", 0.001)      # 0.1 mol% dissolved methane
water.addComponent("ethane", 0.0002)      # Traces of ethane
water.setMixingRule(10)                   # CPA mixing rule for water systems
water.setTemperature(75.0, "C")           # Separator temperature
water.setPressure(65.0, "bara")           # Separator pressure

# 2. Flash to degasser pressure
from neqsim.thermodynamicoperations import TPflash
water.setPressure(4.0, "bara")            # Degasser at 4 bara
TPflash(water)

# 3. Calculate emissions
emissions_calculator = jNeqSim.processimulation.util.monitor.EmissionsCalculator(water)
print(f"CO2 emission:  {emissions_calculator.getCO2Emissions():.4f} kg/hr per m3/hr water")
print(f"CH4 emission:  {emissions_calculator.getMethanEmissions():.4f} kg/hr per m3/hr water")
print(f"nmVOC:         {emissions_calculator.getNmVocEmissions():.4f} kg/hr per m3/hr water")
print(f"CO2 equivalent: {emissions_calculator.getCO2Equivalent():.4f} kg CO2eq/hr")

Need more detail? Continue reading the full tutorial below, or jump to Quick Start - Python for a complete example.

Topic Description
SolutionGasWaterRatio Gas solubility in water calculations
CPA Equation of State Thermodynamic model for polar systems
Process Simulation General process simulation examples
Jupyter Notebook Runnable Python examples

Table of Contents

  1. Why Use NeqSim?
  2. Key Concepts
  3. Quick Start - Python
  4. Quick Start - Java
  5. Process Description
  6. Step-by-Step Implementation
  7. Accounting for Salinity
  8. Generalizing to Other Processes
  9. Mathematical Background
  10. Validation
  11. Regulatory Requirements
  12. Troubleshooting
  13. References

Why Use NeqSim for Emissions Calculation?

The Problem with Conventional Methods

The conventional method for emission reporting uses:

Problems Identified

Issue Impact
CO₂ not measured Misses 72-78% of total gas emissions!
Fixed constants Overestimates CH₄ by ~60%
No process conditions Cannot reflect real variations
No salinity correction Under/over estimates solubility

NeqSim Advantages

Feature Benefit
Rigorous thermodynamics (CPA-EoS) Accurate water-gas equilibrium
Salinity effects Accounts for “salting-out”
Individual components Separates CO₂, CH₄, C₂+
Real-time capable Connect to process data systems
Low uncertainty ±3.6% vs ±50%+ conventional

Key Concepts (Understanding the Problem)

What are Produced Water Emissions?

                        ┌─────────────┐
  Reservoir Fluid  ──▶  │ Separator   │ ──▶ Oil/Gas
  (high pressure)       │ (65 bara)   │
                        └──────┬──────┘
                               │
                               ▼
                        Produced Water
                        (contains dissolved
                         CO₂, CH₄, C₂+)
                               │
         ┌─────────────────────┼─────────────────────┐
         ▼                     ▼                     ▼
   ┌───────────┐        ┌───────────┐        ┌───────────┐
   │ Degasser  │        │   CFU     │        │ Caisson   │
   │ (4 bara)  │        │ (1 bara)  │        │ (1 atm)   │
   └─────┬─────┘        └─────┬─────┘        └─────┬─────┘
         │                    │                    │
         ▼                    ▼                    ▼
     Released Gas         Released Gas         Released Gas
     (to flare)          (to flare)          (to atmosphere)
         │                    │                    │
         └────────────────────┴────────────────────┘
                              │
                              ▼
                    EMISSIONS (CO₂, CH₄, nmVOC)

Key Terms

Term Definition Unit
CO₂ Carbon dioxide - main emission (72-78%) kg/hr
CH₄ Methane - strong greenhouse gas (GWP=28) kg/hr
nmVOC Non-methane VOC (C₂+ hydrocarbons) kg/hr
GWP Global Warming Potential (100-year) -
CO₂eq CO₂ equivalent = CO₂ + CH₄×28 + nmVOC×2.2 kg/hr
CPA-EoS Cubic Plus Association - the thermodynamic model -
GWMF Gas-to-Water Mass Factor (g/m³/bar) g/m³/bar

Process Description

A typical produced water degassing process includes:

Well Stream → 1st Stage Separator → Hydrocyclone → Water Degasser → CFU → Caisson → Sea
                      ↓                                  ↓           ↓
                 Gas to Process              Gas to Cold Flare  Gas to Atmosphere

Key emission points:

  1. Water Degasser - Pressure reduced to 3-5 barg
  2. Compact Flotation Unit (CFU) - Pressure reduced to 0.2-1 barg
  3. Caisson - Atmospheric pressure before discharge

Quick Start - Python

For beginners: Start here. Copy-paste this code to get your first emissions calculation.

Installation

pip install neqsim pandas matplotlib

Simple Example (5 minutes)

# ============================================================
# PRODUCED WATER EMISSIONS - QUICK START
# ============================================================
# This calculates emissions when water is depressurized

from neqsim import jNeqSim

# ----- STEP 1: Create produced water fluid -----
# CPA equation of state handles water + gases accurately
fluid = jNeqSim.thermo.system.SystemSrkCPAstatoil(273.15 + 80, 30.0)

# Add components (adjust these to your facility)
# These are MOLE FRACTIONS - they must sum to 1.0
fluid.addComponent('water', 0.90)      # Produced water
fluid.addComponent('CO2', 0.03)        # Dissolved CO2
fluid.addComponent('methane', 0.05)    # Dissolved methane
fluid.addComponent('ethane', 0.015)    # Dissolved ethane
fluid.addComponent('propane', 0.005)   # Dissolved propane

# Set mixing rule (10 = CPA)
fluid.setMixingRule(10)
fluid.setMultiPhaseCheck(True)

# ----- STEP 2: Set process conditions -----
# Change these to match your separator/degasser
inlet_pressure = 30.0  # bara - separator outlet
degasser_pressure = 4.0  # bara - degasser pressure
temperature = 80.0  # °C

# ----- STEP 3: Flash to degasser pressure -----
fluid.setPressure(degasser_pressure, 'bara')
fluid.setTotalFlowRate(100000, 'kg/hr')  # 100 tonnes/hr water

# Run thermodynamic flash calculation
thermoOps = jNeqSim.thermodynamicoperations.ThermodynamicOperations(fluid)
thermoOps.TPflash()
fluid.initProperties()

# ----- STEP 4: Get emissions -----
if fluid.hasPhaseType('gas'):
    gas = fluid.getPhase('gas')

    # Individual emissions (kg/hr)
    co2 = gas.getComponent('CO2').getFlowRate('kg/hr')
    ch4 = gas.getComponent('methane').getFlowRate('kg/hr')
    c2 = gas.getComponent('ethane').getFlowRate('kg/hr')
    c3 = gas.getComponent('propane').getFlowRate('kg/hr')
    nmvoc = c2 + c3  # non-methane VOC

    # CO2 equivalents (kg/hr)
    # GWP: CO2=1, CH4=28, nmVOC≈2.2
    co2eq = co2 + ch4 * 28 + nmvoc * 2.2

    print("=== EMISSIONS RESULTS ===")
    print(f"CO2:        {co2:.1f} kg/hr")
    print(f"Methane:    {ch4:.1f} kg/hr")
    print(f"nmVOC:      {nmvoc:.1f} kg/hr")
    print(f"CO2eq:      {co2eq:.1f} kg/hr")
    print(f"Annual:     {co2eq * 8760 / 1000:.0f} tonnes CO2eq/year")
else:
    print("No gas released (check pressure drop)")

What Each Parameter Means

Parameter What to Set How to Find It
water mole fraction 0.85-0.95 From water cut + gas analysis
CO2 mole fraction 0.01-0.10 From reservoir gas analysis
methane mole fraction 0.02-0.10 From reservoir gas analysis
inlet_pressure 20-100 bara Separator pressure tag
degasser_pressure 2-6 bara Degasser pressure tag
temperature 50-100 °C Process temperature tag
flow_rate varies Produced water meter

Quick Start - Java

Basic Flash Calculation

import neqsim.thermo.system.SystemSrkCPAstatoil;
import neqsim.thermodynamicoperations.ThermodynamicOperations;

// Create fluid representing produced water with dissolved gas
// Using CPA-EoS for accurate water-gas equilibrium
SystemSrkCPAstatoil fluid = new SystemSrkCPAstatoil(273.15 + 80.0, 65.0); // 80°C, 65 bara

// Add components (mole fractions from reservoir fluid)
fluid.addComponent("water", 0.85);        // Dominant component
fluid.addComponent("CO2", 0.03);          // Important for emissions!
fluid.addComponent("methane", 0.08);      // Main hydrocarbon
fluid.addComponent("ethane", 0.02);       // nmVOC
fluid.addComponent("propane", 0.01);      // nmVOC
fluid.addComponent("n-butane", 0.005);    // nmVOC
fluid.addComponent("i-butane", 0.005);    // nmVOC

// Set CPA mixing rule (rule 10 for CPA)
fluid.setMixingRule(10);
fluid.setMultiPhaseCheck(true);

// Set flow rate
fluid.setTotalFlowRate(100.0, "kg/hr");

// Run flash at separator conditions
ThermodynamicOperations ops = new ThermodynamicOperations(fluid);
ops.TPflash();

// Get gas phase emissions
if (fluid.hasPhaseType("gas")) {
    double gasFlowRate = fluid.getPhase("gas").getFlowRate("kg/hr");
    double co2Flow = fluid.getPhase("gas").getComponent("CO2").getFlowRate("kg/hr");
    double ch4Flow = fluid.getPhase("gas").getComponent("methane").getFlowRate("kg/hr");

    System.out.println("Gas emission rate: " + gasFlowRate + " kg/hr");
    System.out.println("CO2 emission: " + co2Flow + " kg/hr");
    System.out.println("Methane emission: " + ch4Flow + " kg/hr");
}

Step-by-Step Implementation

Complete Multi-Stage Process Simulation (Java)

import neqsim.process.equipment.heatexchanger.Heater;
import neqsim.process.equipment.separator.ThreePhaseSeparator;
import neqsim.process.equipment.stream.Stream;
import neqsim.process.processmodel.ProcessSystem;
import neqsim.thermo.system.SystemSrkCPAstatoil;

public class ProducedWaterEmissionsExample {

    public static void main(String[] args) {
        // =====================================================
        // STEP 1: Define the reservoir fluid
        // =====================================================

        // Use CPA-EoS for water-hydrocarbon-CO2 systems
        SystemSrkCPAstatoil reservoirFluid = new SystemSrkCPAstatoil(273.15 + 80.0, 67.0);

        // Typical high-CO2 reservoir composition (mole fractions)
        reservoirFluid.addComponent("water", 0.129);      // ~10-11 wt% salinity water
        reservoirFluid.addComponent("nitrogen", 0.002);
        reservoirFluid.addComponent("CO2", 0.052);        // High CO2 content
        reservoirFluid.addComponent("methane", 0.642);
        reservoirFluid.addComponent("ethane", 0.062);
        reservoirFluid.addComponent("propane", 0.030);
        reservoirFluid.addComponent("i-butane", 0.004);
        reservoirFluid.addComponent("n-butane", 0.011);
        reservoirFluid.addComponent("i-pentane", 0.004);
        reservoirFluid.addComponent("n-pentane", 0.005);

        // Add heavier fractions as pseudo-components
        reservoirFluid.addTBPfraction("C6", 0.006, 86.0/1000, 0.664);
        reservoirFluid.addTBPfraction("C7", 0.010, 95.0/1000, 0.738);
        reservoirFluid.addTBPfraction("C8", 0.011, 106.0/1000, 0.765);
        reservoirFluid.addTBPfraction("C9", 0.006, 120.0/1000, 0.781);
        reservoirFluid.addTBPfraction("C10+", 0.026, 200.0/1000, 0.830);

        // Set CPA mixing rule
        reservoirFluid.setMixingRule(10);
        reservoirFluid.setMultiPhaseCheck(true);

        // =====================================================
        // STEP 2: Create process streams and equipment
        // =====================================================

        // Inlet stream to first stage separator
        Stream inletStream = new Stream("Well Stream", reservoirFluid);
        inletStream.setTemperature(79.4, "C");
        inletStream.setPressure(67.0, "bara");
        inletStream.setFlowRate(273050.0, "kg/hr");

        // First stage separator (3-phase)
        ThreePhaseSeparator firstStageSeparator =
            new ThreePhaseSeparator("1st Stage Separator", inletStream);

        // Hydrocyclone (modeled as TP change + separator)
        Heater hydrocycloneTPSetter = new Heater("Hydrocyclone TP Setter",
            firstStageSeparator.getWaterOutStream());
        hydrocycloneTPSetter.setOutPressure(30.0, "bara");

        ThreePhaseSeparator hydrocyclone =
            new ThreePhaseSeparator("Hydrocyclone", hydrocycloneTPSetter.getOutletStream());

        // Water Degasser (main emission point 1)
        Heater degasserTPSetter = new Heater("Degasser TP Setter",
            hydrocyclone.getWaterOutStream());
        degasserTPSetter.setOutPressure(4.0, "bara");  // Flash to ~4 barg
        degasserTPSetter.setOutTemperature(77.0, "C");

        ThreePhaseSeparator waterDegasser =
            new ThreePhaseSeparator("Water Degasser", degasserTPSetter.getOutletStream());

        // CFU - Compact Flotation Unit (emission point 2)
        Heater cfuTPSetter = new Heater("CFU TP Setter",
            waterDegasser.getWaterOutStream());
        cfuTPSetter.setOutPressure(1.0, "bara");  // Near atmospheric

        ThreePhaseSeparator cfu =
            new ThreePhaseSeparator("CFU", cfuTPSetter.getOutletStream());

        // Caisson - final atmospheric flash (emission point 3)
        Heater caissonTPSetter = new Heater("Caisson TP Setter",
            cfu.getWaterOutStream());
        caissonTPSetter.setOutPressure(1.01325, "bara");  // Atmospheric

        ThreePhaseSeparator caisson =
            new ThreePhaseSeparator("Caisson", caissonTPSetter.getOutletStream());

        // =====================================================
        // STEP 3: Build and run process system
        // =====================================================

        ProcessSystem process = new ProcessSystem();
        process.add(inletStream);
        process.add(firstStageSeparator);
        process.add(hydrocycloneTPSetter);
        process.add(hydrocyclone);
        process.add(degasserTPSetter);
        process.add(waterDegasser);
        process.add(cfuTPSetter);
        process.add(cfu);
        process.add(caissonTPSetter);
        process.add(caisson);

        process.run();

        // =====================================================

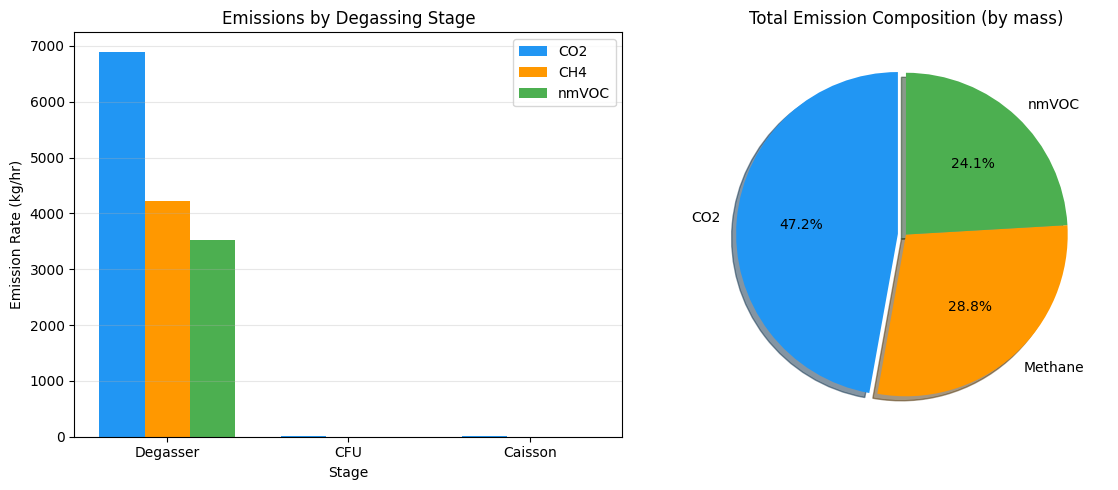

        // STEP 4: Calculate emissions from each source
        // =====================================================

        System.out.println("\n=== PRODUCED WATER EMISSIONS REPORT ===\n");

        // Calculate emissions from each degassing stage
        calculateEmissions("Water Degasser", waterDegasser);
        calculateEmissions("CFU", cfu);
        calculateEmissions("Caisson", caisson);

        // Calculate totals
        double totalCO2 = 0, totalCH4 = 0, totalNMVOC = 0;

        for (ThreePhaseSeparator sep :
                new ThreePhaseSeparator[]{waterDegasser, cfu, caisson}) {
            if (sep.getGasOutStream().getFluid().hasPhaseType("gas")) {
                totalCO2 += getComponentFlow(sep, "CO2");
                totalCH4 += getComponentFlow(sep, "methane");
                totalNMVOC += getNMVOCFlow(sep);
            }
        }

        System.out.println("\n=== TOTAL COLD FLARE EMISSIONS ===");
        System.out.printf("Total CO2:     %.2f kg/hr (%.2f tonnes/year)%n",
            totalCO2, totalCO2 * 8760 / 1000);
        System.out.printf("Total Methane: %.2f kg/hr (%.2f tonnes/year)%n",
            totalCH4, totalCH4 * 8760 / 1000);
        System.out.printf("Total nmVOC:   %.2f kg/hr (%.2f tonnes/year)%n",
            totalNMVOC, totalNMVOC * 8760 / 1000);

        // Calculate CO2 equivalents
        // GWP: CH4 = 28, nmVOC ≈ 2.2
        double co2Equiv = totalCO2 + totalCH4 * 28 + totalNMVOC * 2.2;
        System.out.printf("%nTotal CO2 Equivalents: %.2f kg/hr (%.2f tonnes/year)%n",
            co2Equiv, co2Equiv * 8760 / 1000);
    }

    private static void calculateEmissions(String name, ThreePhaseSeparator separator) {
        if (!separator.getGasOutStream().getFluid().hasPhaseType("gas")) {
            System.out.printf("%s: No gas phase%n", name);
            return;
        }

        PhaseInterface gasPhase = separator.getGasOutStream().getFluid().getPhase("gas");

        System.out.printf("%s Emissions:%n", name);
        System.out.printf("  Total gas:  %.4f kg/hr%n", gasPhase.getFlowRate("kg/hr"));
        System.out.printf("  CO2:        %.4f kg/hr%n",
            gasPhase.getComponent("CO2").getFlowRate("kg/hr"));
        System.out.printf("  Methane:    %.4f kg/hr%n",
            gasPhase.getComponent("methane").getFlowRate("kg/hr"));
        System.out.printf("  nmVOC:      %.4f kg/hr%n", getNMVOCFlow(separator));
        System.out.println();
    }

    private static double getComponentFlow(ThreePhaseSeparator sep, String component) {
        return sep.getGasOutStream().getFluid().getPhase("gas")
            .getComponent(component).getFlowRate("kg/hr");
    }

    private static double getNMVOCFlow(ThreePhaseSeparator sep) {
        PhaseInterface gasPhase = sep.getGasOutStream().getFluid().getPhase("gas");
        double nmvoc = 0;

        // nmVOC = C2+ hydrocarbons (excluding methane)
        String[] nmvocComponents = {"ethane", "propane", "i-butane", "n-butane",
                                    "i-pentane", "n-pentane", "C6", "C7", "C8", "C9", "C10+"};

        for (String comp : nmvocComponents) {
            if (gasPhase.hasComponent(comp)) {
                nmvoc += gasPhase.getComponent(comp).getFlowRate("kg/hr");
            }
        }
        return nmvoc;
    }
}

Accounting for Salinity

Produced water typically contains 10-11 wt% NaCl. Salinity reduces gas solubility (“salting-out effect”), which affects emissions calculations.

Method 1: Using Binary Interaction Parameters

The CPA-EoS can account for salinity by tuning binary interaction parameters:

// Tuned kij values for 10-11 wt% NaCl brine (from GFMW 2023 paper)
// kij = kij,0 + kij,T * (T - 288.15)

// These parameters improve gas solubility predictions in saline water:
// CO2:     kij,0 = -0.24,  kij,T = 0.001121
// Methane: kij,0 = -0.72,  kij,T = 0.002605
// Ethane:  kij,0 = 0.11,   kij,T = 0
// Propane: kij,0 = 0.205,  kij,T = 0
// i-Butane:kij,0 = 0.081,  kij,T = 0
// n-Butane:kij,0 = 0.17,   kij,T = 0

Method 2: Using Electrolyte CPA

For explicit salt modeling:

import neqsim.thermo.system.SystemElectrolyteCPAstatoil;

// Create electrolyte system
SystemElectrolyteCPAstatoil fluid =
    new SystemElectrolyteCPAstatoil(273.15 + 80.0, 65.0);

// Add components
fluid.addComponent("water", 100.0);       // 100 moles water
fluid.addComponent("CO2", 1.0);
fluid.addComponent("methane", 2.0);

// Add NaCl as ions (10 wt% ≈ 1.7 molal)
double molesWater = 100.0;
double kgWater = molesWater * 18.015 / 1000.0;
double molality = 1.7;  // mol NaCl per kg water
double molesNaCl = molality * kgWater;

fluid.addComponent("Na+", molesNaCl);
fluid.addComponent("Cl-", molesNaCl);

fluid.createDatabase(true);
fluid.setMixingRule(10);

Method 3: Using SolutionGasWaterRatio Class

For gas solubility calculations with salinity:

import neqsim.pvtsimulation.simulation.SolutionGasWaterRatio;
import neqsim.thermo.system.SystemSrkCPAstatoil;

// Define reservoir gas composition
SystemSrkCPAstatoil gas = new SystemSrkCPAstatoil(350.0, 100.0);
gas.addComponent("methane", 0.85);
gas.addComponent("CO2", 0.10);
gas.addComponent("ethane", 0.05);
gas.setMixingRule(10);

// Create Rsw calculator
SolutionGasWaterRatio rswCalc = new SolutionGasWaterRatio(gas);

// Set conditions
rswCalc.setTemperaturesAndPressures(
    new double[]{350.0},  // Temperature in K
    new double[]{65.0}    // Pressure in bara
);

// Set salinity (1.7 molal ≈ 10 wt% NaCl)
rswCalc.setSalinity(1.7);

// Use Electrolyte CPA method for best accuracy with salinity
rswCalc.setCalculationMethod(SolutionGasWaterRatio.CalculationMethod.ELECTROLYTE_CPA);
rswCalc.runCalc();

double rsw = rswCalc.getRsw(0);  // Sm³ gas / Sm³ water
System.out.printf("GWR at separator conditions: %.4f Sm³/Sm³%n", rsw);

Mathematical Background

This section provides the theoretical basis for the calculations. You don’t need to understand this to use NeqSim, but it helps for validation and troubleshooting.

Thermodynamic Foundation

Phase Equilibrium

Gas release from water is governed by vapor-liquid equilibrium:

\[f_i^V = f_i^L\]

Where $f_i$ is the fugacity of component $i$ in vapor (V) and liquid (L) phases.

For practical calculations: \(y_i \phi_i^V P = x_i \gamma_i H_i\)

Where:

CPA Equation of State

NeqSim uses the Cubic-Plus-Association (CPA) equation of state, which combines:

\[P = \frac{RT}{V_m - b} - \frac{a(T)}{V_m(V_m + b)} + P_{assoc}\]

The association term $P_{assoc}$ accounts for water’s self-association and cross-association with CO₂.

Salinity Effect (Salting-Out)

Dissolved salts reduce gas solubility. The Setschenow equation describes this:

\[\log\left(\frac{H_{salt}}{H_{pure}}\right) = K_s \cdot m_{salt}\]

Where:

In CPA, this is modeled through adjusted binary interaction parameters $k_{ij}$:

\[k_{ij} = k_{ij,0} + k_{ij,T} \cdot (T - 288.15)\]

CO₂ Equivalent Calculation

Total greenhouse gas impact uses GWP-100 weighting:

\[\text{CO}_2\text{eq} = \dot{m}_{CO_2} + \dot{m}_{CH_4} \times GWP_{CH_4} + \dot{m}_{nmVOC} \times GWP_{nmVOC}\]

Standard GWP-100 values (IPCC AR5): | Gas | GWP-100 | |—–|———| | CO₂ | 1 | | CH₄ | 28 | | nmVOC | ~2.2 (average) |

Uncertainty Propagation

For combined standard uncertainty:

\[u_c(y) = \sqrt{\sum_i \left(\frac{\partial y}{\partial x_i}\right)^2 u^2(x_i)}\]

Key uncertainty contributors: | Source | Typical Uncertainty | |——–|———————| | Water flow measurement | ±2% | | Temperature | ±0.5°C | | Pressure | ±0.5% | | Composition | ±5% (from PVT analysis) | | Thermodynamic model | ±2% (for CPA) |

Combined uncertainty for total gas: ±3.6%

GWMF Calculation

Gas-to-Water Mass Factor for comparing with conventional methods:

\[GWMF = \frac{\dot{m}_{gas} \times 1000}{Q_{water} \times \Delta P}\]

Where:

Calculating Emissions Factors

Gas-to-Water Mass Factor (GWMF)

/**
 * Calculate GWMF for comparison with conventional method
 * GWMF = g gas / m³ water / bar pressure drop
 */
public static double calculateGWMF(ThreePhaseSeparator separator,
                                   double pressureDrop_bar) {

    double gasFlowKgHr = separator.getGasOutStream().getFlowRate("kg/hr") * 1000; // g/hr
    double waterFlowM3Hr = separator.getWaterOutStream().getFlowRate("m3/hr");

    return gasFlowKgHr / waterFlowM3Hr / pressureDrop_bar;  // g/m³/bar
}

// Typical values from literature (vs conventional method):
// Component    | NeqSim      | Conventional
// -------------|-------------|-------------
// Methane      | 5-6 g/m³/bar| 14 g/m³/bar
// nmVOC        | 1.2-1.4     | 3.5 g/m³/bar
// CO2          | 15-30       | Not reported!

Generalizing to Other Emission Sources

The same methodology can be applied to any process where gas is released from a liquid:

1. TEG Dehydration Emissions

TEG (Triethylene Glycol) regeneration releases absorbed gases. This is a significant emission source.

Emission Points:

# Python example for TEG flash emissions
from neqsim import jNeqSim

# Rich TEG composition after absorption
teg_fluid = jNeqSim.thermo.system.SystemSrkCPAstatoil(273.15 + 35, 52.0)

# TEG with absorbed water and hydrocarbons
teg_fluid.addComponent('TEG', 0.95)
teg_fluid.addComponent('water', 0.03)
teg_fluid.addComponent('methane', 0.015)  # Absorbed in contactor
teg_fluid.addComponent('CO2', 0.005)      # Absorbed CO2

teg_fluid.setMixingRule(10)
teg_fluid.setMultiPhaseCheck(True)

# Flash to regenerator feed pressure
teg_fluid.setPressure(4.0, 'bara')
teg_fluid.setTotalFlowRate(6000, 'kg/hr')  # Rich TEG flow

thermoOps = jNeqSim.thermodynamicoperations.ThermodynamicOperations(teg_fluid)
thermoOps.TPflash()
teg_fluid.initProperties()

if teg_fluid.hasPhaseType('gas'):
    gas = teg_fluid.getPhase('gas')
    print(f"TEG Flash Emissions:")
    print(f"  Methane: {gas.getComponent('methane').getFlowRate('kg/hr'):.2f} kg/hr")
    print(f"  CO2:     {gas.getComponent('CO2').getFlowRate('kg/hr'):.2f} kg/hr")

See Also: The TEG test classes in NeqSim (TEGdehydrationProcess*.java) provide comprehensive examples.

2. Crude Oil Storage Tank Emissions

Stabilized crude still contains dissolved gas that flashes in storage tanks.

# Tank breathing emissions calculation
oil_fluid = jNeqSim.thermo.system.SystemSrkEos(273.15 + 40, 1.5)  # Tank pressure

oil_fluid.addComponent('methane', 0.002)
oil_fluid.addComponent('ethane', 0.005)
oil_fluid.addComponent('propane', 0.01)
oil_fluid.addComponent('nC10', 0.983)  # Crude proxy

oil_fluid.setMixingRule(2)
oil_fluid.setMultiPhaseCheck(True)
oil_fluid.setTotalFlowRate(500, 'm3/hr')

thermoOps = jNeqSim.thermodynamicoperations.ThermodynamicOperations(oil_fluid)
thermoOps.TPflash()
oil_fluid.initProperties()

# VOC emissions from tank vapor space

3. Loading/Offloading Operations

Marine loading of crude oil or condensate releases VOCs.

Comparison of Emission Sources

Source Typical Components Key Consideration
Produced Water CO₂, CH₄, C₂+ Salinity effect on solubility
TEG Regeneration CH₄, H₂O, BTEX High temperature regeneration
Crude Storage C₁-C₆, BTEX Tank pressure, temperature
Condensate Loading C₃-C₈ Working + breathing losses
Glycol Flash CH₄, CO₂ Contactor pressure

Online Implementation (NeqSimLive Pattern)

For real-time emissions monitoring:

public class ProducedWaterEmissionsMonitor {

    private ProcessSystem process;
    private ThreePhaseSeparator degasser;

    // Cumulative emissions tracking
    private double cumulativeCO2_tonnes = 0.0;
    private double cumulativeCH4_tonnes = 0.0;
    private double cumulativeNMVOC_tonnes = 0.0;

    public void initialize() {
        // Build process model (as shown above)
        // ...
    }

    /**
     * Update model with new process data
     * Called every 5-15 minutes from SIGMA/OPC connector
     */
    public void updateFromProcessData(double waterFlowRate_kghr,
                                       double temperature_C,
                                       double pressure_bara,
                                       double timeStep_hours) {

        // Update inlet conditions
        process.getUnit("Well Stream").setFlowRate(waterFlowRate_kghr, "kg/hr");
        // ... update other conditions

        // Run simulation
        process.run();

        // Calculate instantaneous emissions
        double co2_kghr = getComponentFlow(degasser, "CO2");
        double ch4_kghr = getComponentFlow(degasser, "methane");
        double nmvoc_kghr = getNMVOCFlow(degasser);

        // Update cumulative values
        cumulativeCO2_tonnes += co2_kghr * timeStep_hours / 1000.0;
        cumulativeCH4_tonnes += ch4_kghr * timeStep_hours / 1000.0;
        cumulativeNMVOC_tonnes += nmvoc_kghr * timeStep_hours / 1000.0;

        // Write to PI/Aspen tags
        writeToTag("EMISSIONS.CO2.INSTANT", co2_kghr);
        writeToTag("EMISSIONS.CH4.INSTANT", ch4_kghr);
        writeToTag("EMISSIONS.NMVOC.INSTANT", nmvoc_kghr);
        writeToTag("EMISSIONS.CO2.CUMULATIVE", cumulativeCO2_tonnes);
        // ... etc
    }

    public double getCO2Equivalents_tonnes() {
        return cumulativeCO2_tonnes +
               cumulativeCH4_tonnes * 28.0 +   // GWP of methane
               cumulativeNMVOC_tonnes * 2.2;   // GWP of nmVOC
    }
}

Validation and Calibration

Comparing with Water Samples

/**
 * Validate model against laboratory water sample analysis
 */
public void validateAgainstWaterSample(double labGWR,         // Sm³/Sm³
                                       double labCO2_molpct,
                                       double labCH4_molpct) {

    // Run flash at sample conditions (atmospheric, 15°C)
    // ...

    double modelGWR = calculateGWR();
    double modelCO2 = getGasPhaseMoleFraction("CO2") * 100;
    double modelCH4 = getGasPhaseMoleFraction("methane") * 100;

    System.out.println("Validation Results:");
    System.out.printf("GWR - Lab: %.3f, Model: %.3f, Dev: %.1f%%%n",
        labGWR, modelGWR, (modelGWR - labGWR) / labGWR * 100);
    System.out.printf("CO2 - Lab: %.2f%%, Model: %.2f%%, Dev: %.1f%%%n",
        labCO2_molpct, modelCO2, (modelCO2 - labCO2_molpct) / labCO2_molpct * 100);
    System.out.printf("CH4 - Lab: %.2f%%, Model: %.2f%%, Dev: %.1f%%%n",
        labCH4_molpct, modelCH4, (modelCH4 - labCH4_molpct) / labCH4_molpct * 100);
}

Uncertainty Estimation

Based on the GFMW 2023 paper methodology:

Component Typical Uncertainty
Total gas ±3.6%
CO₂ ±3.6%
Methane ±7.4%
nmVOC ±38% (higher due to low concentrations)

Regulatory Requirements

Norwegian Continental Shelf (Aktivitetsforskriften)

Key Regulation: Aktivitetsforskriften (Activities Regulations) §70 mandates measurement or calculation of emissions to air and sea with quality-assured methods.

Measurement and Calculation Requirements (§70)

According to Aktivitetsforskriften §70:

  1. Measurement/Calculation Obligation: Operators must measure or calculate quantities of emissions to air and sea, as well as quantities of energy used and waste generated.

  2. Quality Assurance: The methods used must be quality-assured and representative.

  3. Sampling and Analysis: Sampling and analysis of waste and emissions must be representative.

  4. Indirect Calculations: When emissions cannot be measured directly, calculations from process measurements may be used.

Norwegian Offshore Emission Handbook

The conventional method uses empirical solubility factors:

Component Factor (f) Unit
Methane (CH₄) 14.0 g/m³/bar
nmVOC (C₂+) 3.5 g/m³/bar

Conventional Formula:

Annual_emission = f × V_annual × ΔP

Where:

Limitations of Conventional Method:

Thermodynamic Method vs Conventional Method

NeqSim provides a thermodynamic-based calculation that addresses these limitations:

# Compare thermodynamic vs conventional methods
from neqsim import jNeqSim

# Create and configure system
system = jNeqSim.process.equipment.util.ProducedWaterDegassingSystem("Comparison Test")
system.setWaterFlowRate(100000, "kg/hr")
system.setTemperature(80, "C")
system.setInletPressure(65, "bara")
system.setDegasserPressure(4.0, "bara")
system.setCFUPressure(1.2, "bara")
system.setCaissonPressure(1.013, "bara")

# Set dissolved gas composition
system.setDissolvesGasComposition({"CO2": 0.03, "methane": 0.05, "ethane": 0.015, "propane": 0.005})
system.setSalinity(3.5, "wt%")

# Build and run
system.build()
system.run()

# Get comparison report
print(system.getMethodComparisonReport())

Example Output:

╔════════════════════════════════════════════════════════════════╗
║   METHOD COMPARISON: Thermodynamic vs Conventional Handbook     ║
╠════════════════════════════════════════════════════════════════╣

  BASIS:
    Annual water volume:   876000 m³/year
    Pressure drop:         64.0 bar
    Handbook factors:      f_CH4=14.0, f_nmVOC=3.5 g/m³/bar

  ANNUAL EMISSIONS (tonnes/year):
    ─────────────────────────────────────────────────────────────
    Component       Thermodynamic     Conventional     Difference
    ─────────────────────────────────────────────────────────────
    CO2                   245.3              0.0       +100%
    Methane (CH4)          35.2            785.0       -95%
    nmVOC (C2+)            18.5            196.2       -91%
    ─────────────────────────────────────────────────────────────
    CO2 Equivalents      1273.8          22415.3       -94%

  KEY FINDINGS:
    • CO2 represents 82% of total gas emissions
    • Conventional method COMPLETELY MISSES this CO2!
    • CO2eq reduced by 94% using thermodynamic method

  REGULATORY NOTE:
    Per Aktivitetsforskriften §70, thermodynamic calculations
    provide more accurate emission quantification than empirical
    solubility factors. Uncertainty: ±3.6% vs ±50%+ conventional.

╚════════════════════════════════════════════════════════════════╝

Regulatory Tolerance

Parameter Tolerance Source
Emission quantities ±7.5% Norwegian Offshore Emission Handbook
Measurement uncertainty Quality-assured Aktivitetsforskriften §70
PVT model validation Compare with lab GWR Industry best practice

Using Tuned Binary Interaction Parameters

For improved accuracy, use laboratory-calibrated kij parameters:

# Enable tuned binary interaction parameters per Kristiansen et al. (2023)
system.setTunedInteractionParameters(True)

# Validate against laboratory Gas-to-Water Ratio
system.setLabGWR(0.85)  # Sm³ gas / Sm³ water from PVT lab

# Run and check validation
system.run()
validation = system.getValidationResults()
print(f"GWR deviation: {validation['gwrDeviation_pct']:.1f}%")
print(f"Within tolerance: {validation['withinTolerance']}")

Tuned kij Parameters (CPA-EoS):

System kij Formula Reference
Water-CO₂ kij = -0.24 + 0.001121 × T(°C) Kristiansen et al. (2023)
Water-CH₄ kij = -0.72 + 0.002605 × T(°C) Kristiansen et al. (2023)
Water-C₂H₆ kij = 0.11 (fixed) Literature correlation
Water-C₃H₈ kij = 0.205 (fixed) Literature correlation

UK North Sea

US (EPA)

CO₂ Equivalent Factors (GWP-100)

Gas GWP-100 Notes
CO₂ 1 Reference
Methane (CH₄) 28 IPCC AR5 (2013)
nmVOC ~2.2 Varies by composition

Troubleshooting Common Issues

No Gas Phase Formed

Symptom: fluid.hasPhaseType('gas') returns false

Causes and Solutions:

Cause Solution
Pressure too high Lower the degasser pressure or increase temperature
Insufficient dissolved gas Check input composition - water may be undersaturated
Multi-phase check disabled Add fluid.setMultiPhaseCheck(True)
Wrong mixing rule Use mixing rule 10 for CPA: fluid.setMixingRule(10)

Unrealistic Emission Values

Symptom: Values too high or too low compared to field data

Check:

  1. Units: Flow rates in kg/hr vs m³/hr
  2. Composition: Mole fractions should sum to ~1.0
  3. Pressure units: bara vs barg
  4. Temperature: Kelvin vs Celsius

Model vs Field Discrepancy

Expected deviation: ±5-10% is acceptable

If deviation > 15%:

  1. Verify process conditions (P, T, flow)
  2. Get updated PVT analysis
  3. Check for process changes (new wells, water injection)
  4. Validate salinity assumption

Performance Issues (Slow Calculation)

For batch processing:

# Reuse fluid object instead of creating new ones
fluid.setPressure(new_pressure, 'bara')
thermoOps.TPflash()
# Don't recreate SystemSrkCPAstatoil each iteration

References

Primary Literature

  1. GFMW 2023 Paper: “Virtual Measurement of Emissions from Produced Water Using an Online Process Simulator” - Global Flow Measurement Workshop 2023

  2. Søreide & Whitson (1992): “Peng-Robinson predictions for hydrocarbons, CO2, N2 and H2S with pure water and NaCl brine”, Fluid Phase Equilibria, 77, 217-240

  3. Kontogeorgis et al. (2006): “Ten Years with CPA Equation of State”, Industrial & Engineering Chemistry Research, 45(14), 4855-4868

  4. Yan et al. (2011): “Representation of CO2 and H2S solubility in aqueous MDEA solutions using an extended uniquac model”, Chemical Engineering Science

Standards and Regulations

  1. Norwegian Environment Agency: Handbook for VOC Emissions (ver 20, 2022)

  2. IPCC AR5 (2014): Global Warming Potentials - Climate Change 2014: Synthesis Report

  3. ISO 14064-1: Specification with guidance for quantification of GHG emissions and removals

NeqSim Resources

  1. NeqSim Documentation: https://equinor.github.io/neqsimhome/

  2. NeqSim GitHub: https://github.com/equinor/neqsim

  3. NeqSim Python Package: https://github.com/equinor/neqsim-python

See Also

Appendix: Quick Reference Card

Common Commands (Python)

# Create CPA fluid
fluid = jNeqSim.thermo.system.SystemSrkCPAstatoil(T_kelvin, P_bara)

# Add components
fluid.addComponent('component_name', mole_fraction)

# Configure
fluid.setMixingRule(10)  # CPA mixing rule
fluid.setMultiPhaseCheck(True)
fluid.setTotalFlowRate(value, 'kg/hr')

# Flash calculation
ops = jNeqSim.thermodynamicoperations.ThermodynamicOperations(fluid)
ops.TPflash()
fluid.initProperties()

# Get gas phase
if fluid.hasPhaseType('gas'):
    gas = fluid.getPhase('gas')
    flow = gas.getComponent('CO2').getFlowRate('kg/hr')

GWP-100 Values (IPCC AR5)

Gas GWP-100 Use
CO₂ 1 Reference
CH₄ 28 Methane
C₂H₆ 5.5 Ethane
C₃H₈ 3.3 Propane
nmVOC avg 2.2 C₂+ mix

Unit Conversions

From To Multiply by
kg/hr tonnes/year 8.76
kg/hr kg/day 24
bara barg subtract 1.01325
°C K add 273.15
wt% NaCl molal ÷58.44×10 (approx)
